Accelerometer

F0405202
€177.90
€215.26 Incl. VAT
€177.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

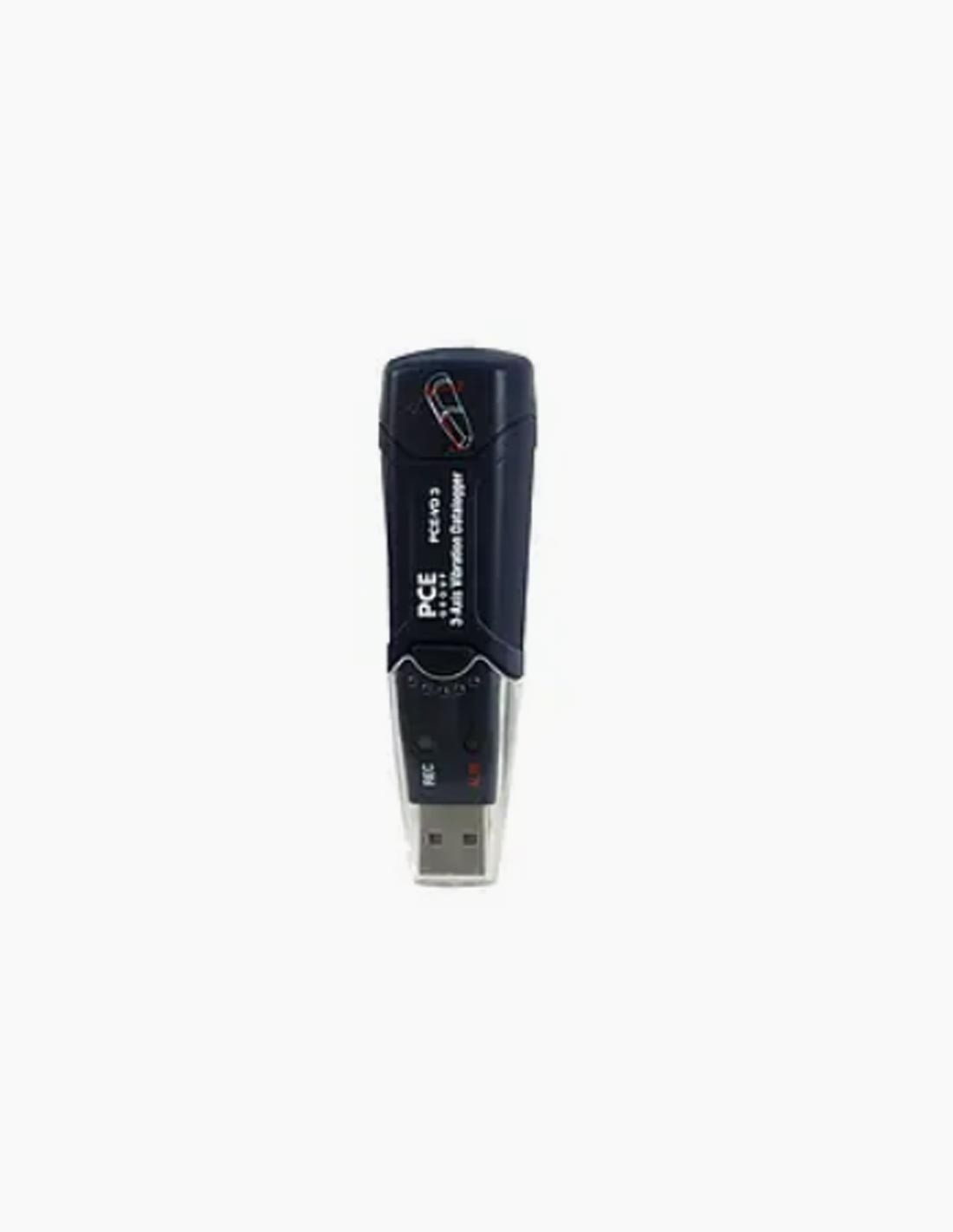

The vibrometer or accelerometer is used to record and measure the impact and acceleration of axes. For the correct function, the data logger must be in movement while measuring.

The vibration meter is used in the field of sport, medicine, for transport control or any recording of movements from 1 to 3 axes. In addition, the impact recorder also has a tri-axial acceleration sensor.

  • The dimensions of the data logger are as follows: 95 x 28 x 21mm.
  • The dimensions of the vibrometer holder are as follows: 106 x 56 x 33.5mm.

Impact

Time

Monitoring

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



The universal impact recorder or vibration analyzer with a triaxial acceleration sensor. FFT analysis.

The triaxial acceleration sensor allows simultaneous evaluation of the acceleration or vibration of the same element, in three types of coordinates (X, Y, Z axes).

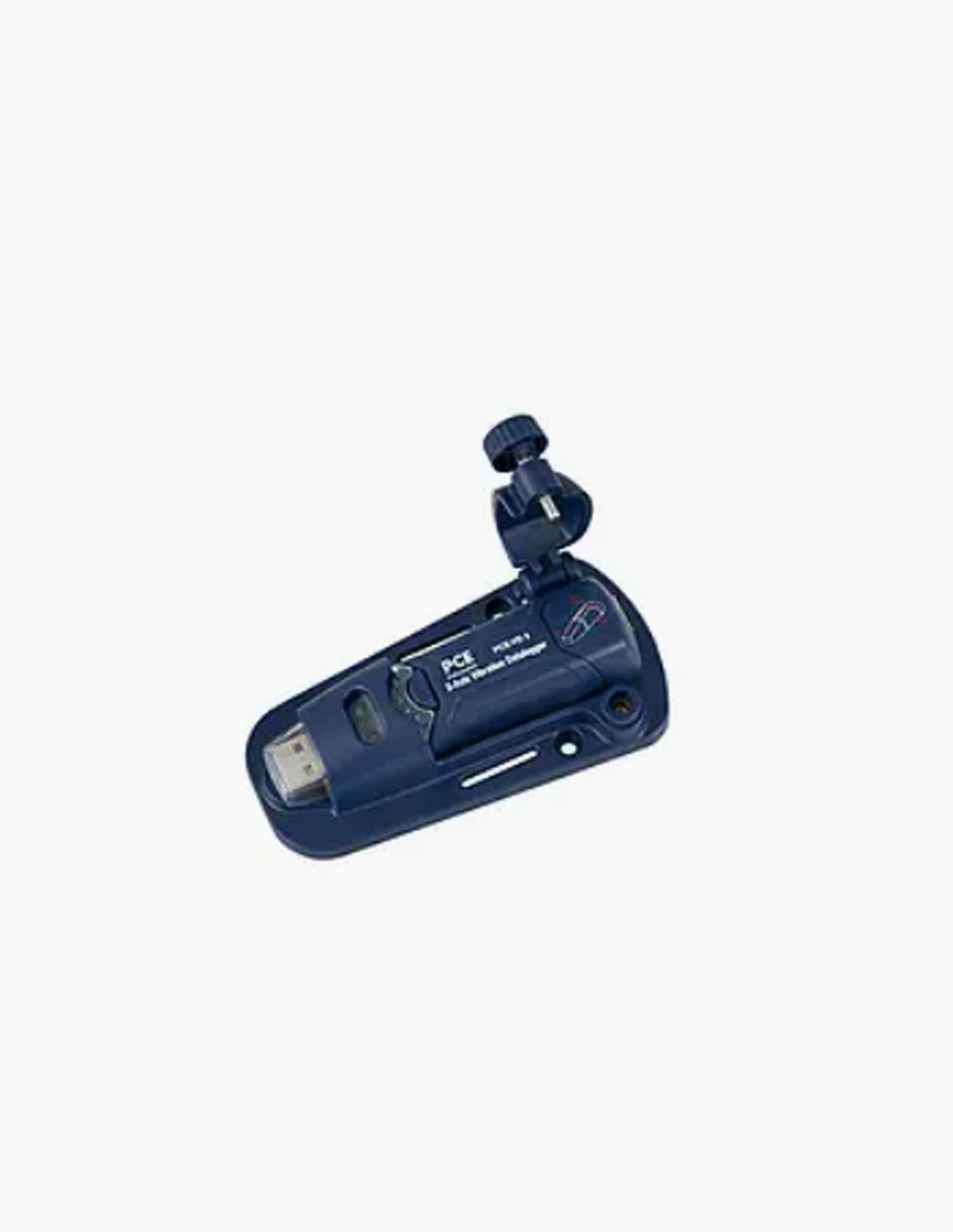

In addition, the vibrometer also has a very strong, magnetic wall mounting bracket that can be placed anywhere the user prefers. All accelerometer data can be sent directly to a computer via USB.

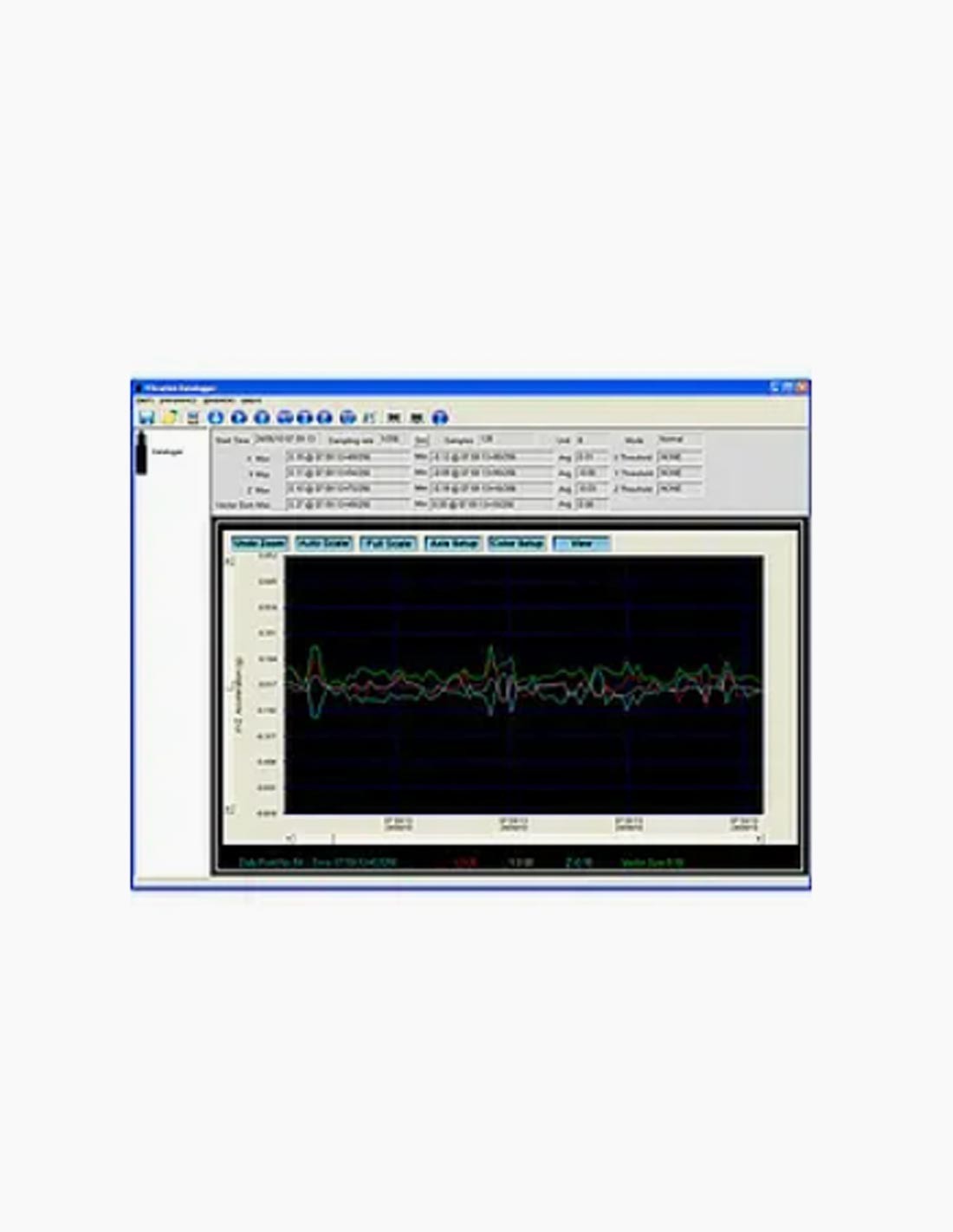

For automatic logging, the vibration data logger can be configured through simple and easy to use software.

The shipment of the data logger contains:

  • 1 Impact logger VD 3
  • 1 wall bracket
  • 1 3.6 V battery
  • 1 Software
  • 2 Screws
  • 1 Instruction manual

The weight of the vibration meter is 25 grams.

Port
USB
Software
From Windows XP (also 64 Bit version)
Power supply
1 x 3.6 V, 1/2 AA, 14250, battery
Measuring range
±16 g
Resolution
0.004 g
Accuracy
± 0.5 g
Weight
25 g / 0.88 oz
Operating conditions
0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing
Measurement quota
50 ms ... 12 hours
Status display

via 2 LEDs (recording in progress / alarm)
Storage conditions
-10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing
Storage
8 Mbit
- Normal measuring mode
168042 records
- Motion Detection mode
112028 records
Frequency range
0 ... 60 Hz
Battery life
ca. 400 hours
Dimensions of device
95 x 28 x 21 mm / 3.7 x 1.1 x 0.8"
Dimensions of wall bracket
106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3"
