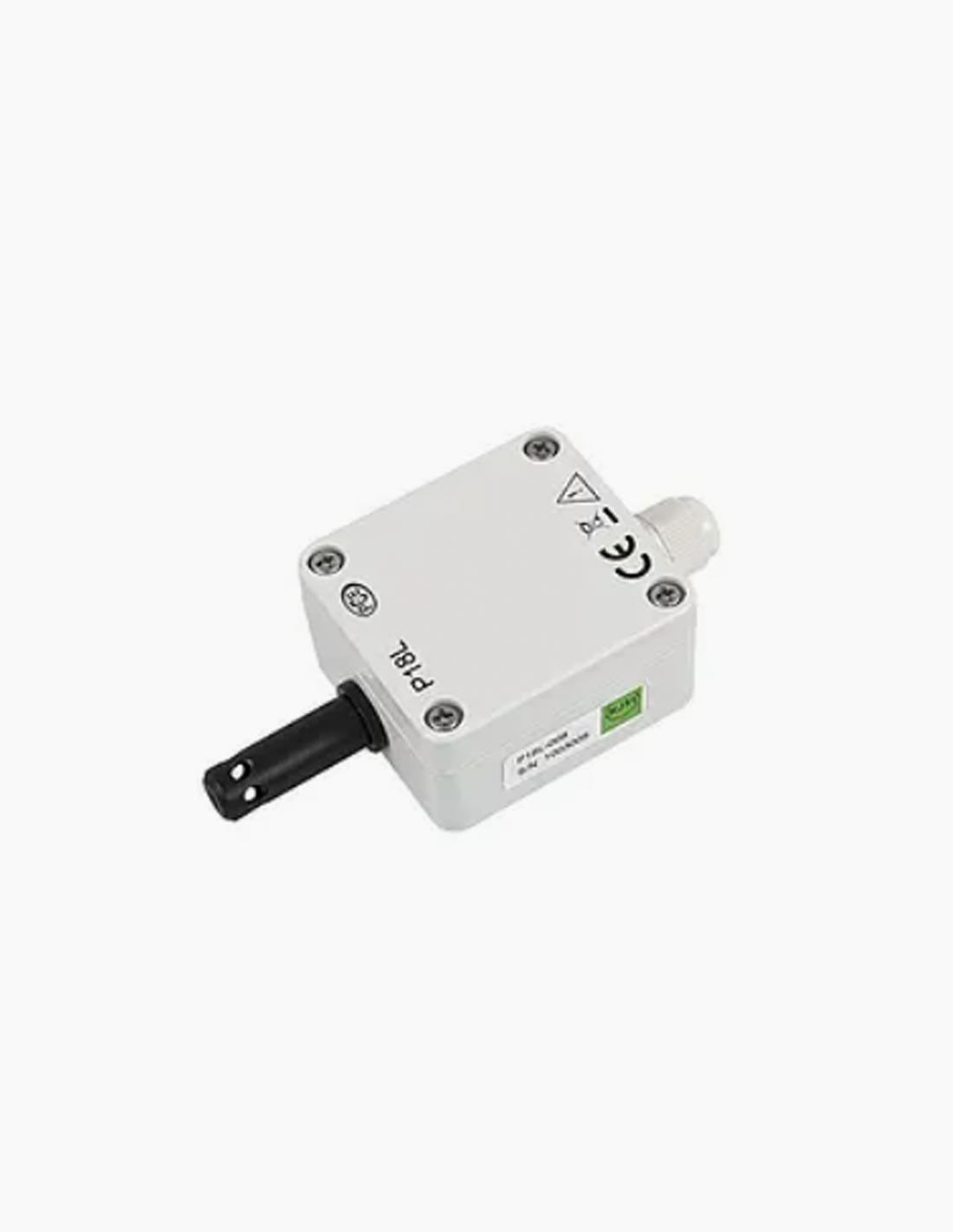

Humidity and temperature sensor

F0404801
€148.90
€180.17 Incl. VAT
€148.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

The humidity and temperature sensor, or thermo-hygrometer, allows continuous monitoring of air temperature and humidity in virtually any environment, helping to control comfort and prevent problems related to inadequate humidity levels.

Measurement is carried out by means of a semiconductor element integrated into the device, which ensures fast and reliable results. It is ideal for use in homes, offices, warehouses, or air-conditioned rooms where basic yet accurate environmental control is required.

Dimensions: 35 × 58 × 118 mm.

Temperaure

Humedity

Monitoring

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



The sensor that enables two types of measurement. It records the temperature and humidity of the air. Wall mounting.

The humidity sensor helps to control the air humidity and temperature in any place, such as a greenhouse, a warehouse...

The hygrometer is powered through a DC voltage supply loop. The thermo-hygrometer can be connected to a data logger and installed on the wall.

The temperature detector is used to work with digital indicators that are powered through the transmitters.

The measurement is carried out via a semiconductor element contained in the thermohygrometer. During this measurement, the measured variable is converted into a 4 - 20mA signal.

The delivery of the temperature sensor contains:

  • 1 Thermo-hygrometer PCE-P18L
  • 1 instruction manual

The hygrometer weighs approx. 250 grams.

Temperature measuring range
-20 ... +60 ºC
Capacity
smaller than 1,5 W
Air humidity measuring range
0 ... 100% H.r.
Air humidity accuracy
±2 % (in the range 10% ... 90% R.H.) ±3 % (rest of range)
Hysteresis
±1 % H.r.
Thermal influence
±25% / 10 ºC
Power output
4 ... 20 mA
Maximum load resistance
≤ 500 Ω
Power supply voltage
19 ... 30 V DC
Output Signal Settings
via DIP - switch
Ambient temperature
-30 ... +85 ºC
Maximum relative humidity
≤ 95% H.r.
Preheating time
15 minutes
Protection
IP 65
Assembly
Wall mounting
Dimensions
35 x 58 x 118 mm
