Viscometer with Temperature Sensor

F0405303
€1,315.90
€1,592.24 Incl. VAT
€1,315.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

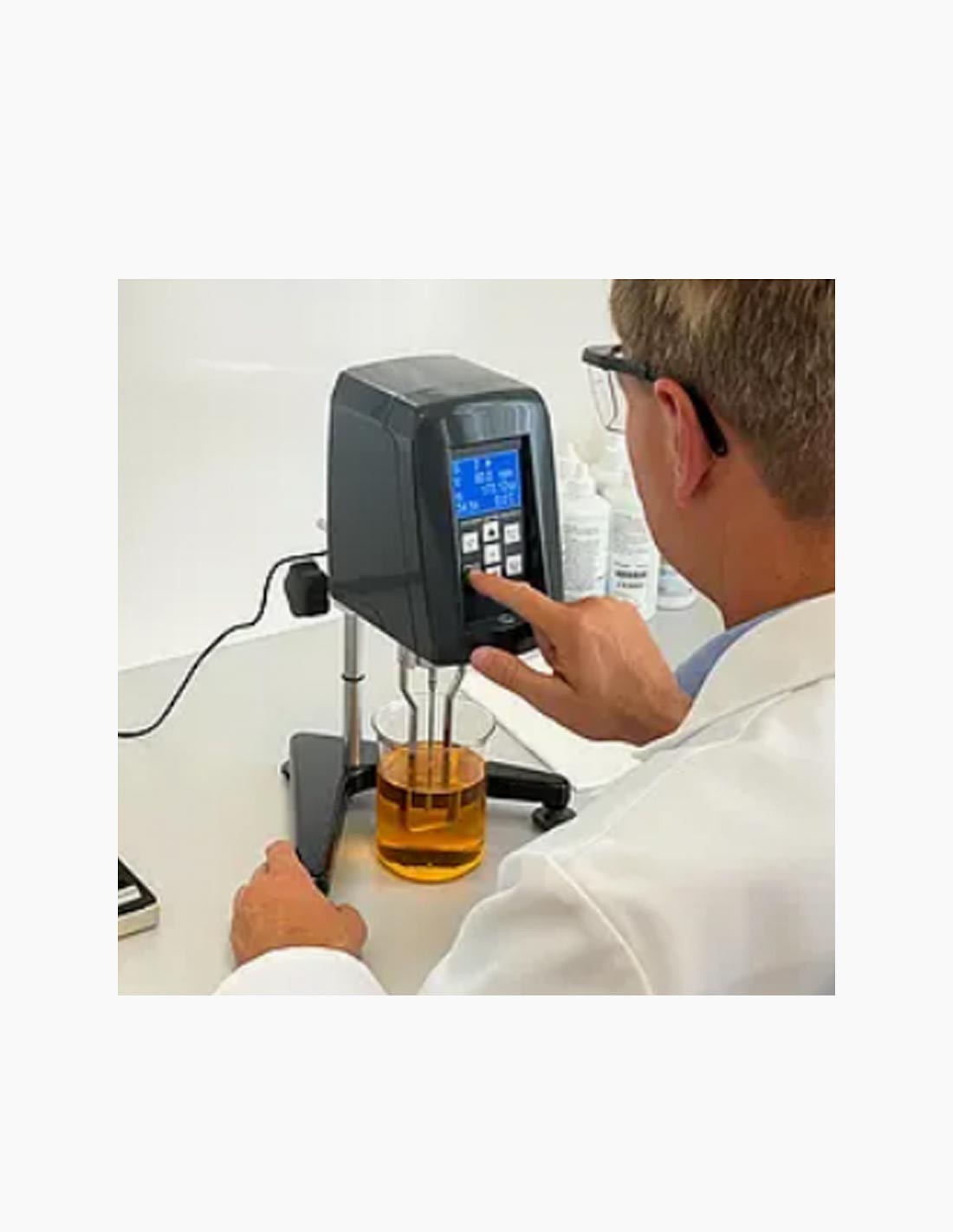

The rheometer or the paint viscosity tester is used to measure and determine the viscosity of liquids. This device establishes the viscosity and density of fluids, using a mechanical resistance acting in the opposite direction to the rotational movement of the screw.

The dimensions of the viscometer are as follows: 400 x 200 x 430 mm.

WATER QUALITY

Thermometer

Monitoring

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



The rheometer or viscometer is a precision instrument, easy to handle, which identifies the variation of viscosity in liquids.

The vast majority of liquids are exposed to thermal loads. As a consequence, the viscosity and density of fluids can be affected. With the immersion temperature sensor, the temperature of a test object can be determined during the measurement between 0 … 100 °C.

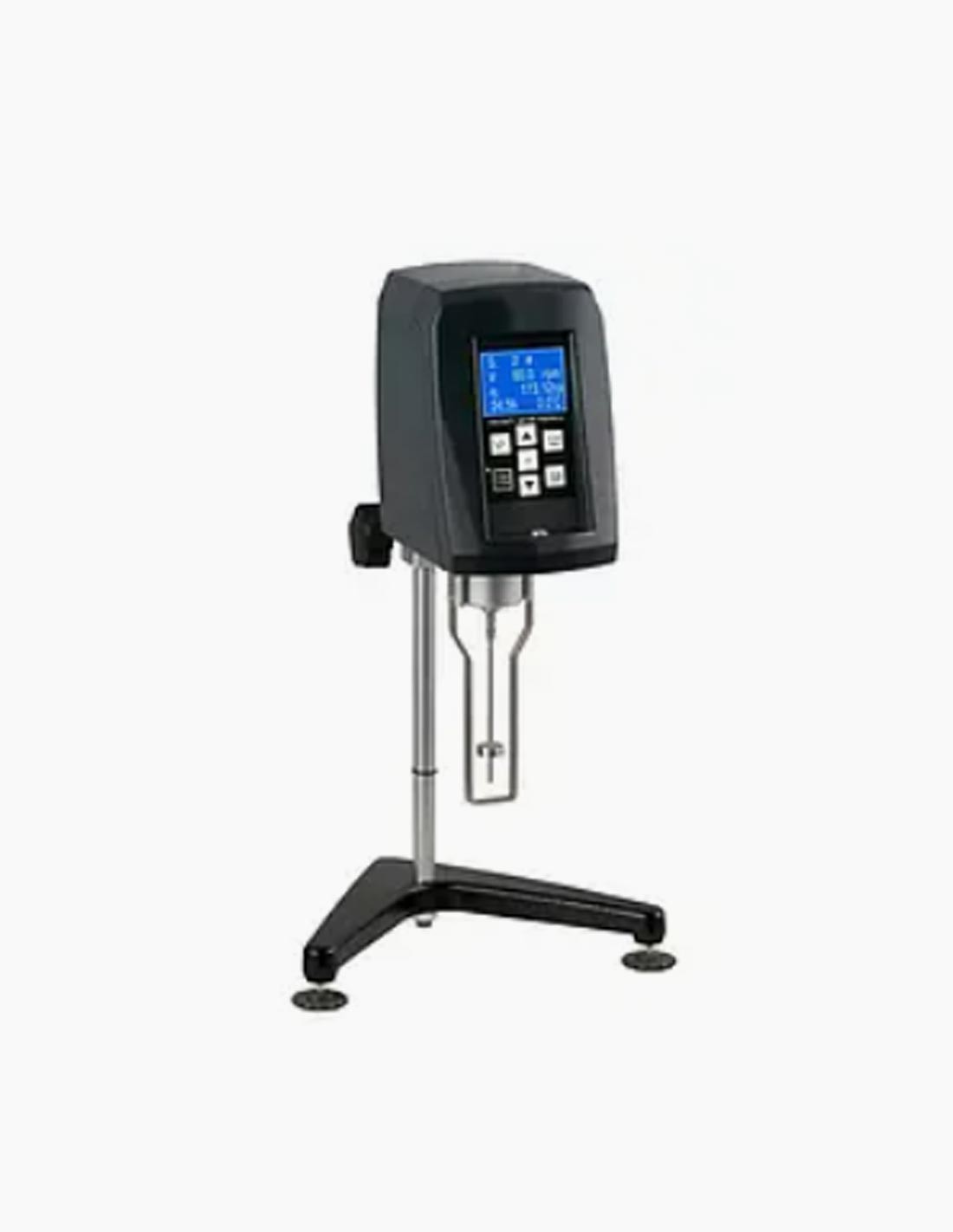

The viscometer is equipped with adjustment feet so that it can be correctly balanced and also incorporates a bubble level to check its alignment.

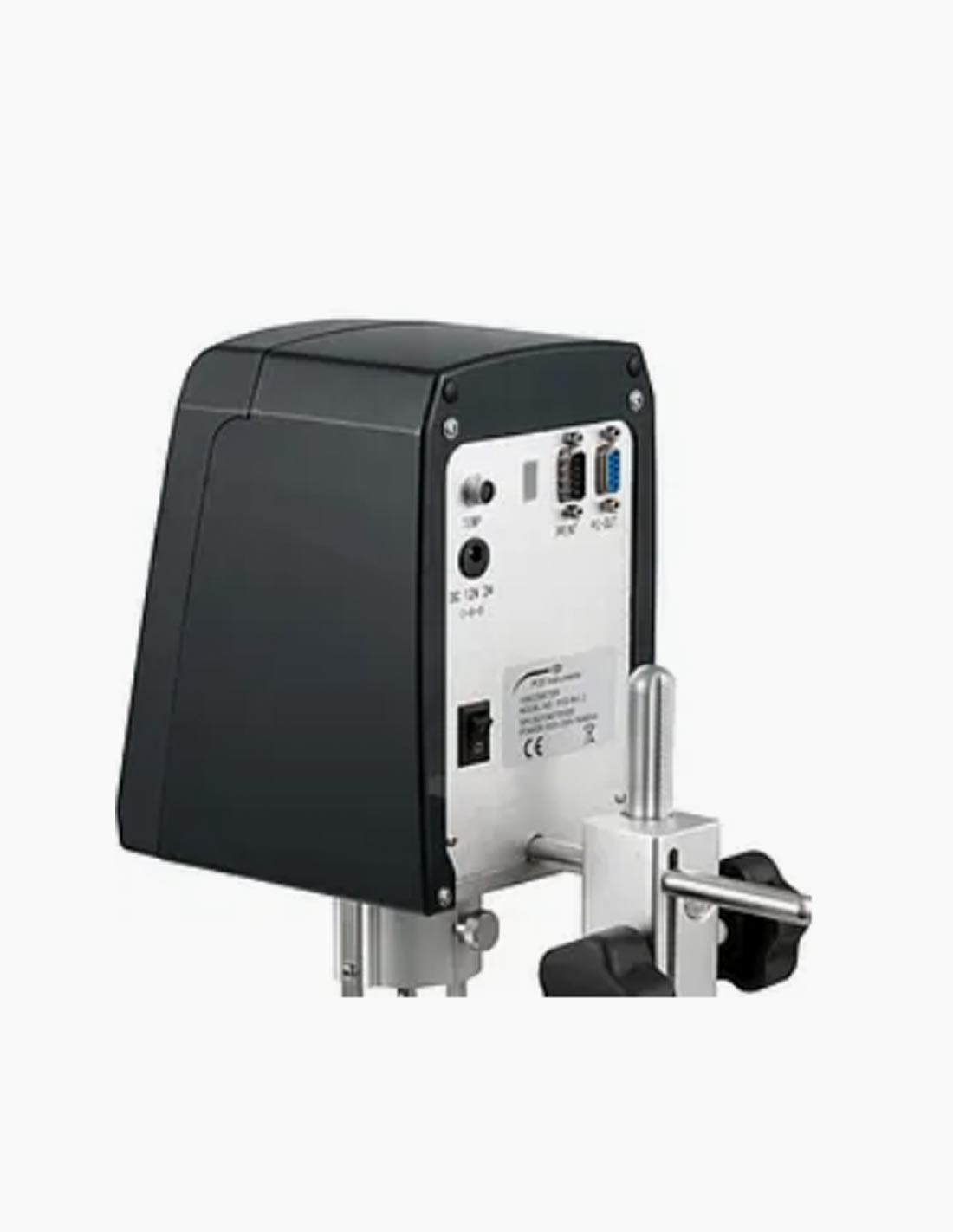

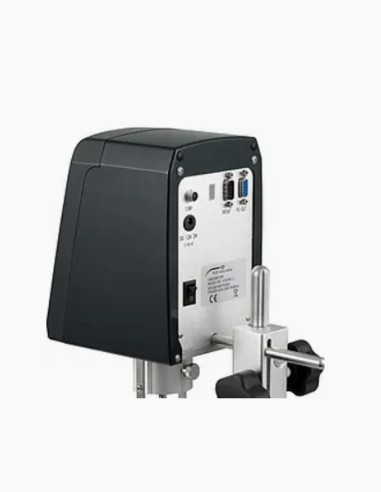

The rheometer is connected to a computer via the RS-232 interface.

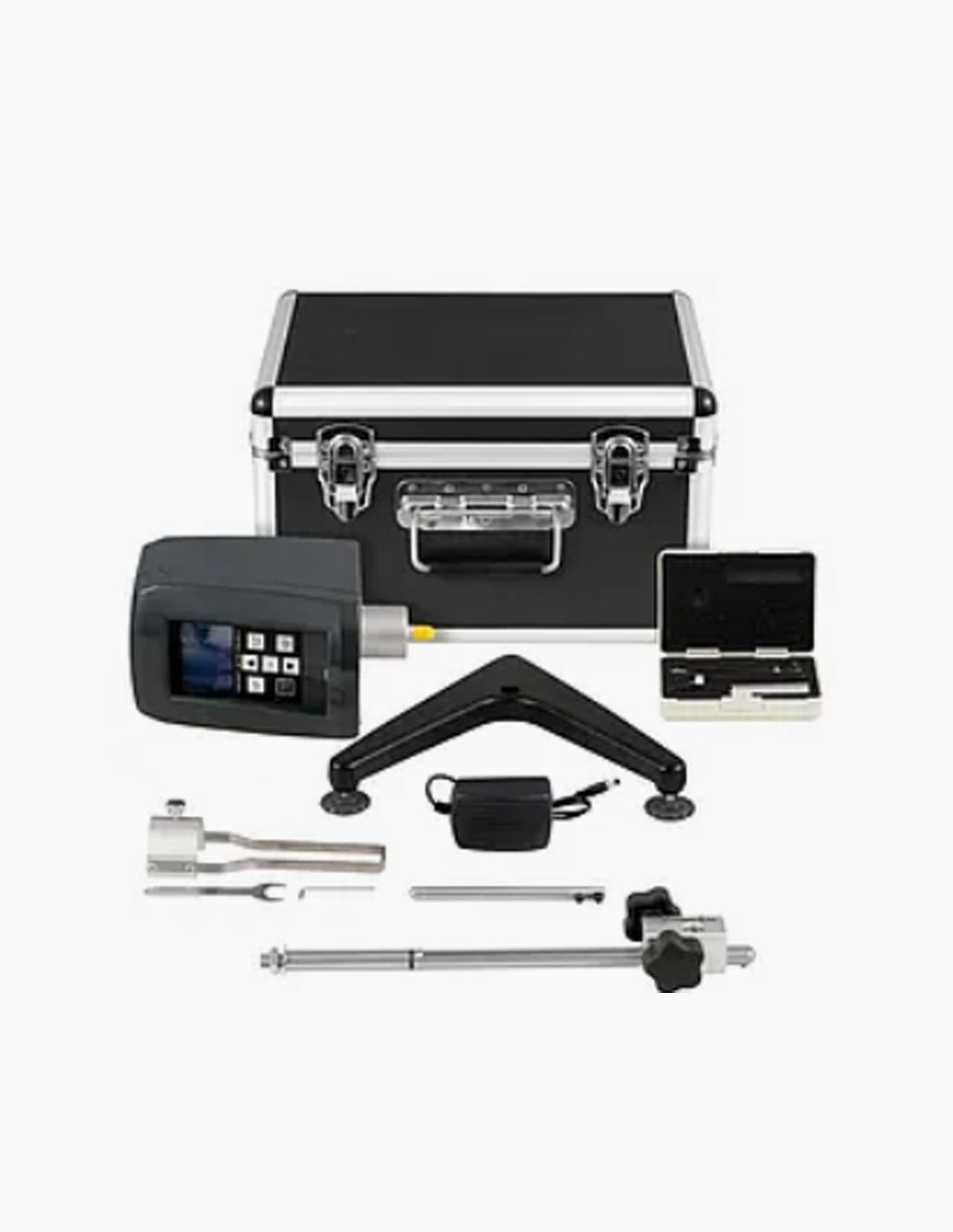

The delivery of the viscometer contains:

  • 1 Rheometer PCE-RVI 2
  • 1 Set of spindles L1...L4
  • 1 Carrying case
  • 1 Double-ended spanner
  • 1 mains adapter
  • 1 Instruction manual

The approximate weight of the paint viscosity tester is 4.8 kg.

Temperature measuring range
0 ... 100 °C / 32 ... 212 °F
Port
RS-232 (SUB D9)
Power supply
primary: 100 ... 240 V AC , 50 / 60 Hz
secondary: 12 V DC, 2 A
Environmental conditions
5 ... 35 °C / 41 ... 95 °F, less than 80 RH, non-condensing
Measurement range
15 ... 100,000 cP, 1 ... 100,000 cP with L0 spindle configuration
Resolution
0.01 cP
Accuracy
less than ±2 % of measuring range
Weight
4.8 kg / 10.5 lb
Dimensions
400 x 200 x 430 mm / 15.7 x 7.8 x 16.9"
Temperature sensor
resistance temperature sensor
Repeatability
±0.5 %
Temperature measurement accuracy
0.1 °C
Adjustable measuring time
30 seconds ... 1 hour or endless
Resolution of the measurement time
30 seconds
Adjustable speed
6, 12, 30, 60 RPM
Sample volume
250 ... 400 ml / 8.4 ... 13.5 fl oz (depending on the spindle)
Spindle
L1 ... L4
Height adjustability
25 cm / 9.8"
