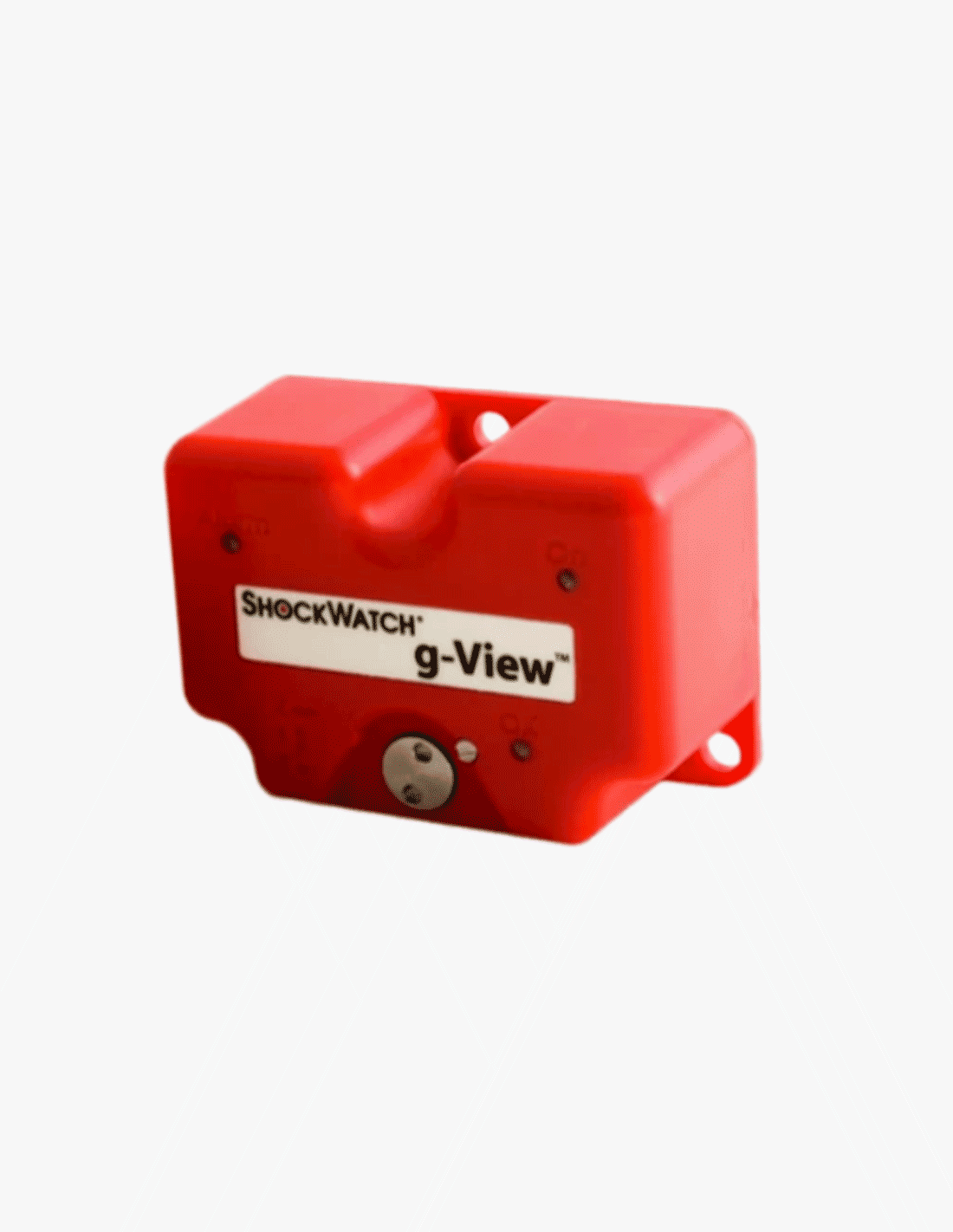

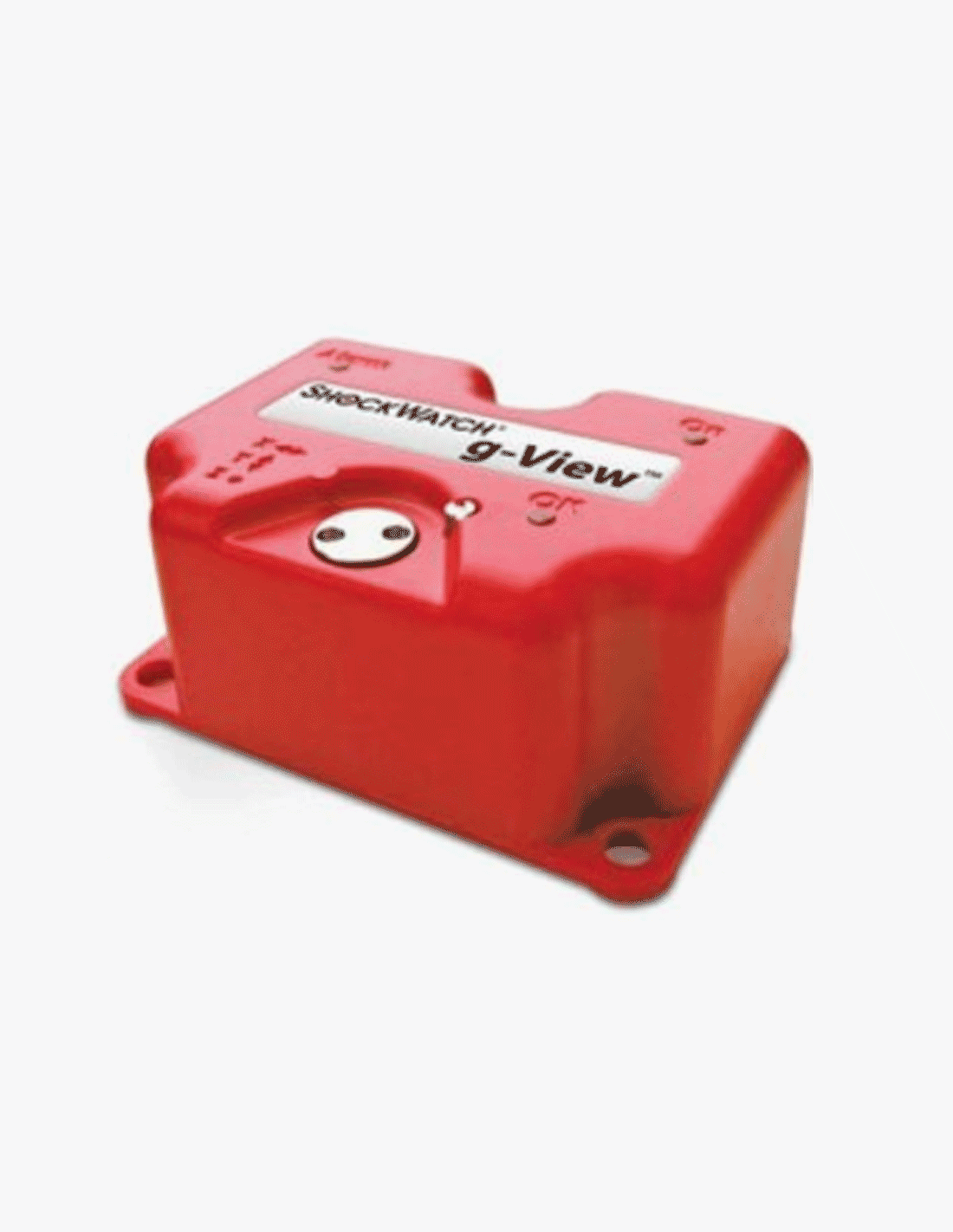

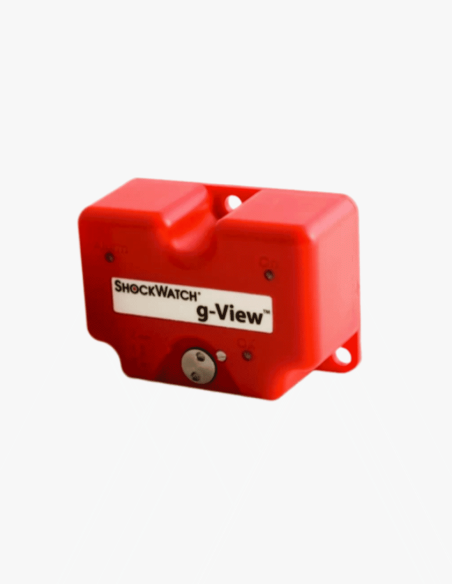

Shockwatch g-View Impact Logger

F0400401
€595.00
€719.95 Incl. VAT
€595.00 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

The Shockwatch g-View impact data logger can detect all types of impacts to goods during transport, accurately recording the date and time of these impacts. This is controlled by software.

The use of this datalogger is ideal for medical equipment, electronics manufacturing, communication equipment, aircraft parts, cargo containers and crates.

impact

lashing

G-View

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



The Shockwatch g-View impact recorder is a device created to indicate impacts on goods during transport.

At a reasonable cost, ShockWatch g-View tracks and documents impacts during the use, storage and transit of goods and machinery. The tool provides an accurate record of the exceedance of threshold limits on the X, Y and Z axes at specific dates and times. The gadget can capture data from 100 occurrences per axis and can notify you of any potential damage that has occurred so you can act quickly.

The Key features of G-View datalogger are:

  • X, Y and Z shock thresholds that can be independently programmed for accurate monitoring.
  • Records date, time, internal temperature, axis exceeded and axis amplitude

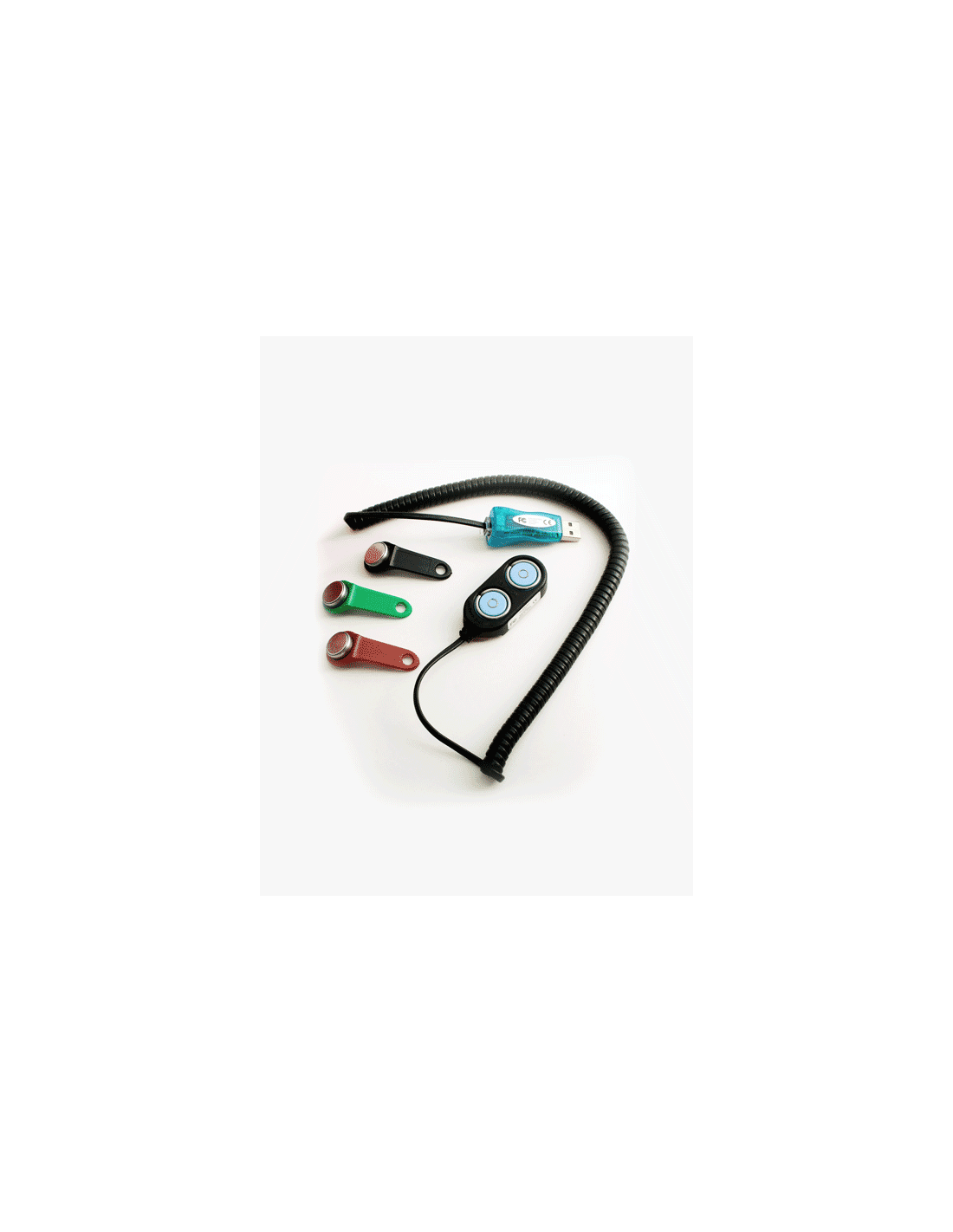

  • iButton used for setup, reset and data transfer
  • Stand-alone unit design with no wires or cables
  • LED lights for visual notification of threshold exceedances
  • Simple programming interface



More information

Operating temperature
-10 ºC to 50 ºC
Weight
81g
Dimensions
70mm x 50mm x 30mm
Housing material
PC / ABS
Operating time
6 months
Power supply
1 AA alkaline (replaceable)
Storage
100 events per axis
Sensitivity range
10g / 25g
Type of sealing
IP65
Shock range / Cutoff Frecuency
10G/25Hz or 25G/40Hz (factory set)
Alarm threshold breach indication
LED
