VCI plastic film Coil
VCI plastic film Coil

VCI 2000 plastic film Coil

C0200108
€11.61
€14.05 Incl. VAT
€11.61 Incl. VAT
Delivery 3 to 4 days

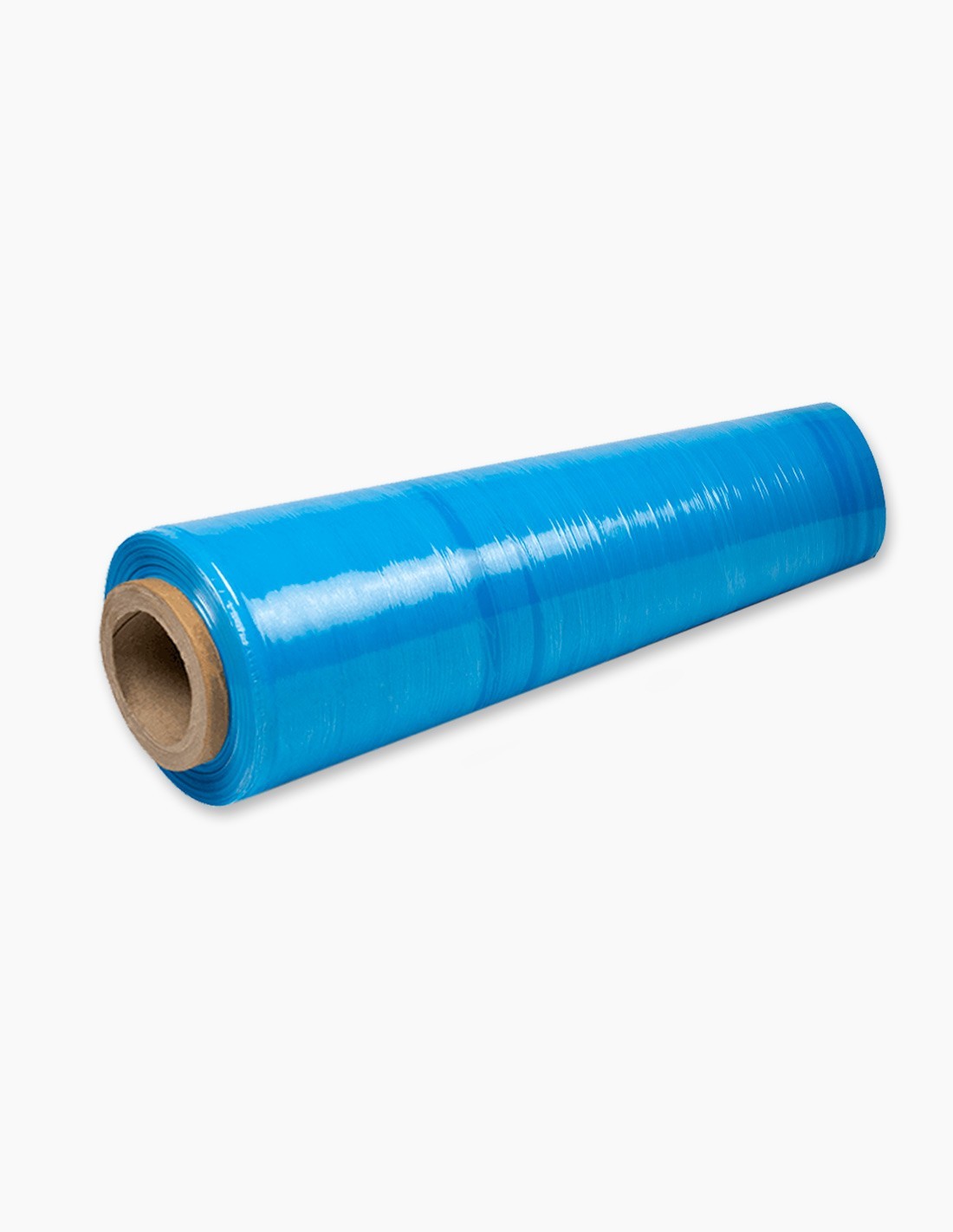

VCI plastic film coil for protection of metal products against corrosion and oxidation during shipments and storage.

Supplied in coils of 2000mm size, 32 kg weight and 320 m2.

CONTACT US FOR THE SUPPLY OF THIS PRODUCT AT [email protected]

lashing

packaging

rust

The minimum purchase order quantity for the product is 32.

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Quantity unit price (VAT not included)
32 €11.61

Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



PROPATECH VCI FILM plastic film reel, manufactured with the PROPATECH VCI additive giving corrosion protection properties needed  during packaging of metal objects.

The main characteristic of the standard product consists of coextrusion in 3 layers. It guarantees a greater mechanical resistance and a unidirectionality of the PROPATECH VCI molecules.

Thanks to its transparency, VCI film products allow the good disposal of the merchandise in specific positions or supports and facilitate customs procedures without the need to open or damage the packaging.

An simple, practical and economical solution to avoid damage caused by corrosion and oxidation, used by major automobile manufacturers and steel companies.



More información

Recommended for:
Automotive components (engine block, transmissions, gearboxes, brake discs, etc.)
CKD
Machinery
Metal parts of any kind
Steel coils
Dimensions
coils of 2000mm size, 32 kg weight and 320 m2.
Total thickness
ISO 4593
Nominal ± 10% µm
Density
0,92 ÷ 0,93 g / cm³
ISO 1183
Width
Internal
Nominal ± 5% mm
Length
Internal
Nominal ± 5% m
Breaking load (MD)
ISO 527-3
≥ 20 N / mm²
Breaking load (TD)
ISO 527-3
≥ 18 N / mm²
Elongation at break (MD)
ISO 527-3
≥ 500 (100 µm) %
Elongation at break (TD)
ISO 527-3
≥ 600 (100 µm) %
Resistance to DART TEST
ASTM D 1709-A
≥ 400 (100 µm) g
Elmendorf Test (MD)
ISO 6383-2
≥ 3000 (100 µm) mN
Elmendorf Test (TD)
ISO 6383-2
≥ 6000 (100 µm) mN
Permeability (WVTR) (38ºC - 90% UR)
3,60 ± 0,30 (100 µm) g / (m² x 24h)
ASTM F 1249-06
Permeability (WVTR) (23ºC - 85% UR)
0,80 ± 0,06 (100 µm) g / (m² x 24h)
DIN 53122-2
