Ultrasonic flowmeter for pipes DN300-6000 with L sensor

Continuous flow measurement with the ultrasonic flowmeter for pipes DN300-6000 with L sensor

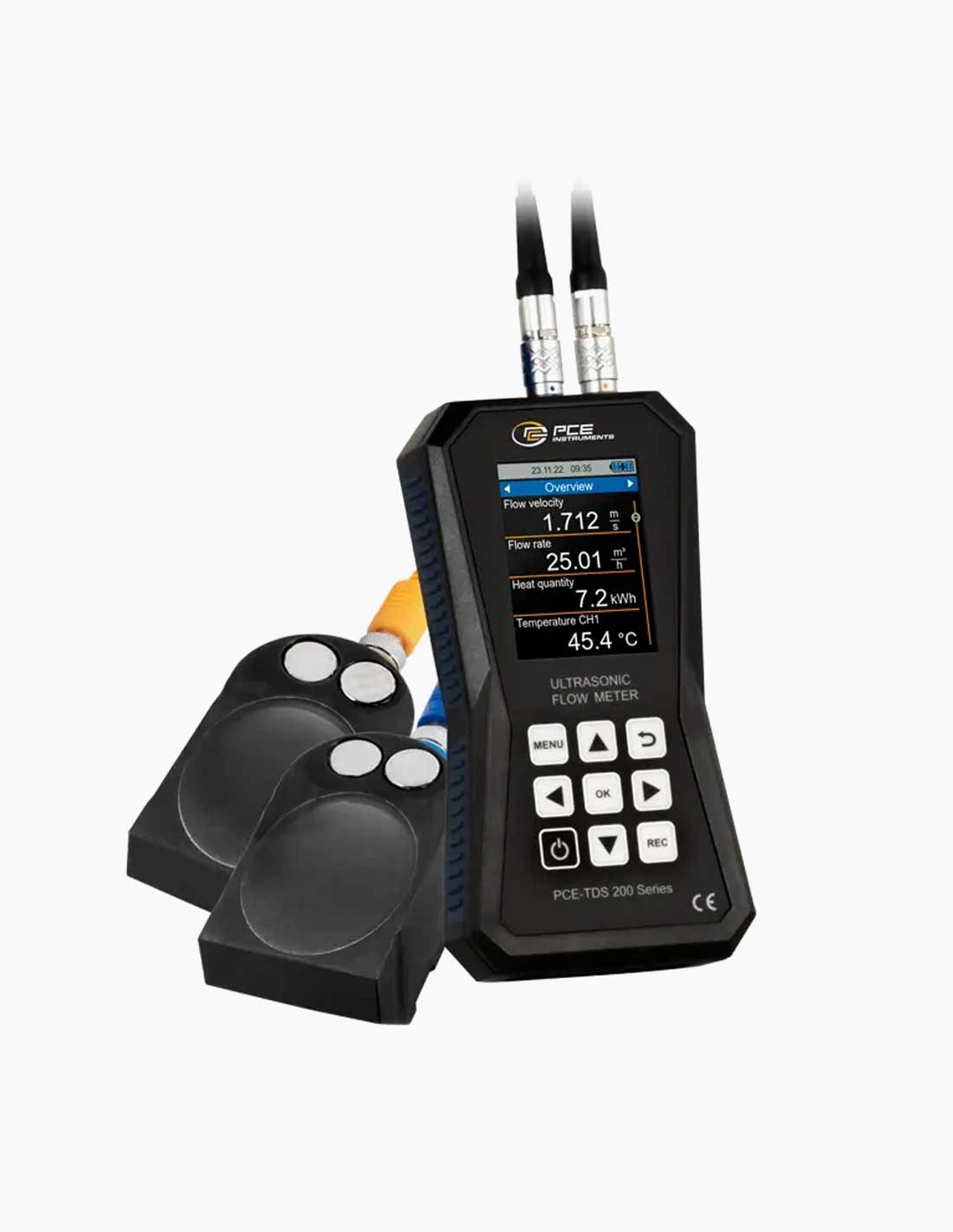

Ultrasonic Flowmeter TDS 200 is an instrumentation solution for maintenance, energy and process technicians who need to check flow rates in pipes without intervening in the line. By working with external ultrasonic transducers, it avoids cuts, draining or dismantling, reducing operational risk and intervention time.

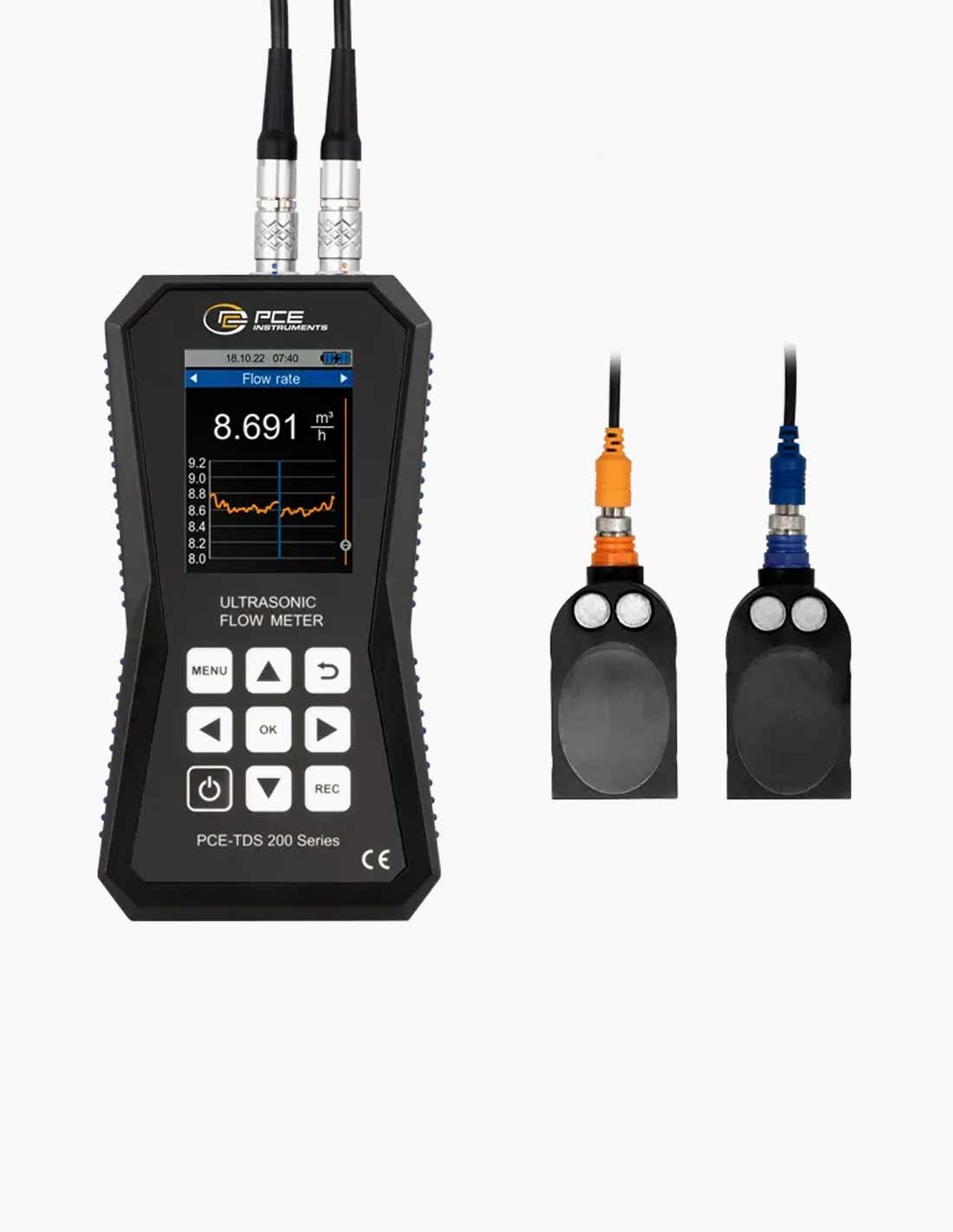

To ensure consistent results, the unit includes installation assistance with a graphical indication of signal quality and visual verification of sensor placement/distance. Once pipe and fluid parameters are entered, the instrument displays hydraulic behaviour on-screen as velocity, flow and volume, with selectable units to suit industrial and service environments.

Key features of the ultrasonic flowmeter for pipes

• High-capacity internal logging for measurement campaigns: 32 GB memory with up to 10 million data points and configurable logging interval and start/stop times.

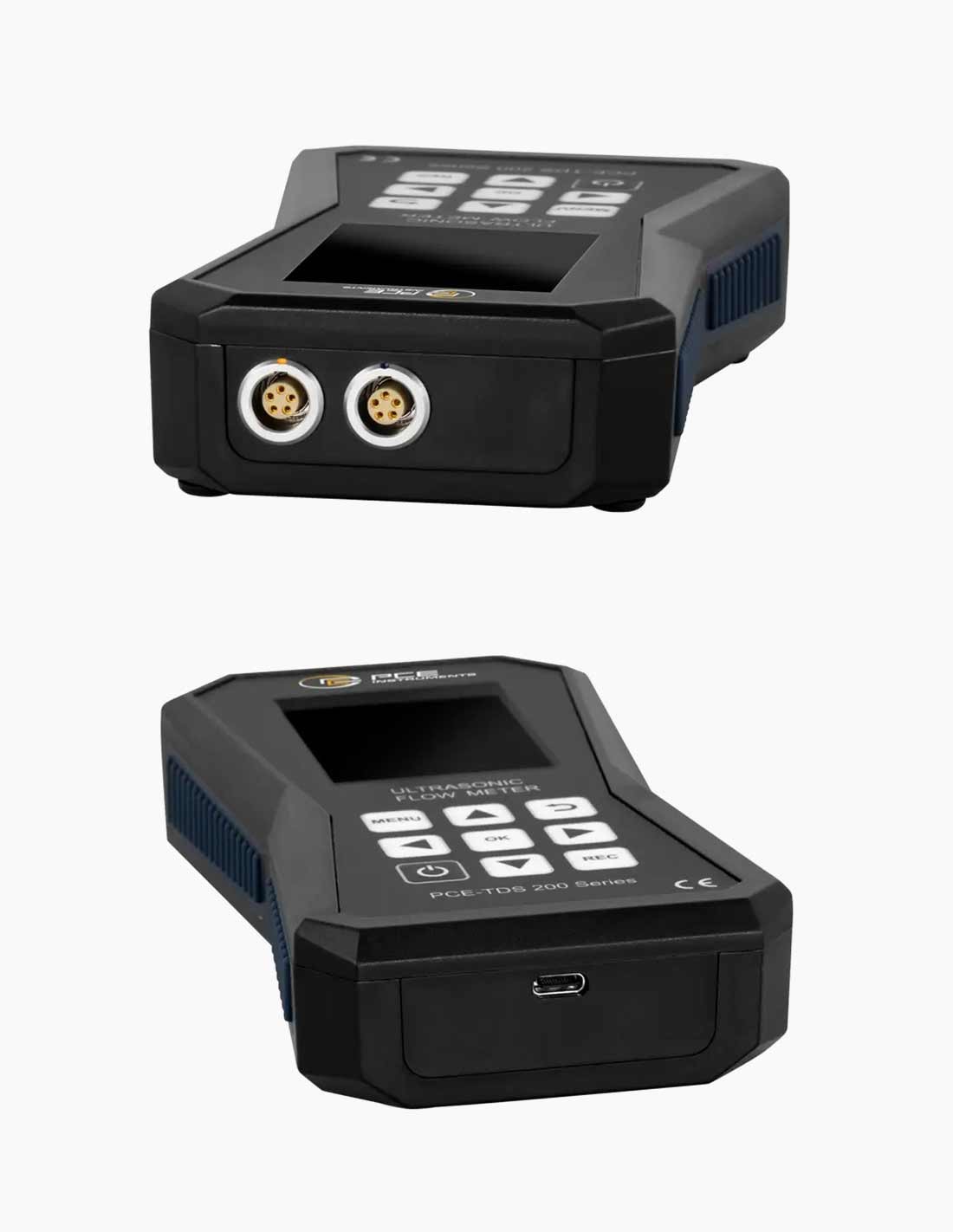

• Analysis and traceability with USB-C connectivity: download and view measurements; optional software for charts/tables, CSV export and PDF report generation.
• Threshold control via freely adjustable alarms for supervision of out-of-spec conditions.
• Application versatility with different probes available to suit various diameters and installation configurations.
• Clear field readout via a 2.8" color LCD and multilingual menus.
• Optional calibration with ISO or DAkkS certificate for quality, audit and internal procedure requirements.

Applications for water and other process liquids

• Verification and diagnosis of flow in water networks, auxiliary circuits, recirculations and process lines.
• Performance checks on existing installations during preventive or corrective maintenance.
• Measurement campaigns with logging and subsequent PC analysis for technical reports.

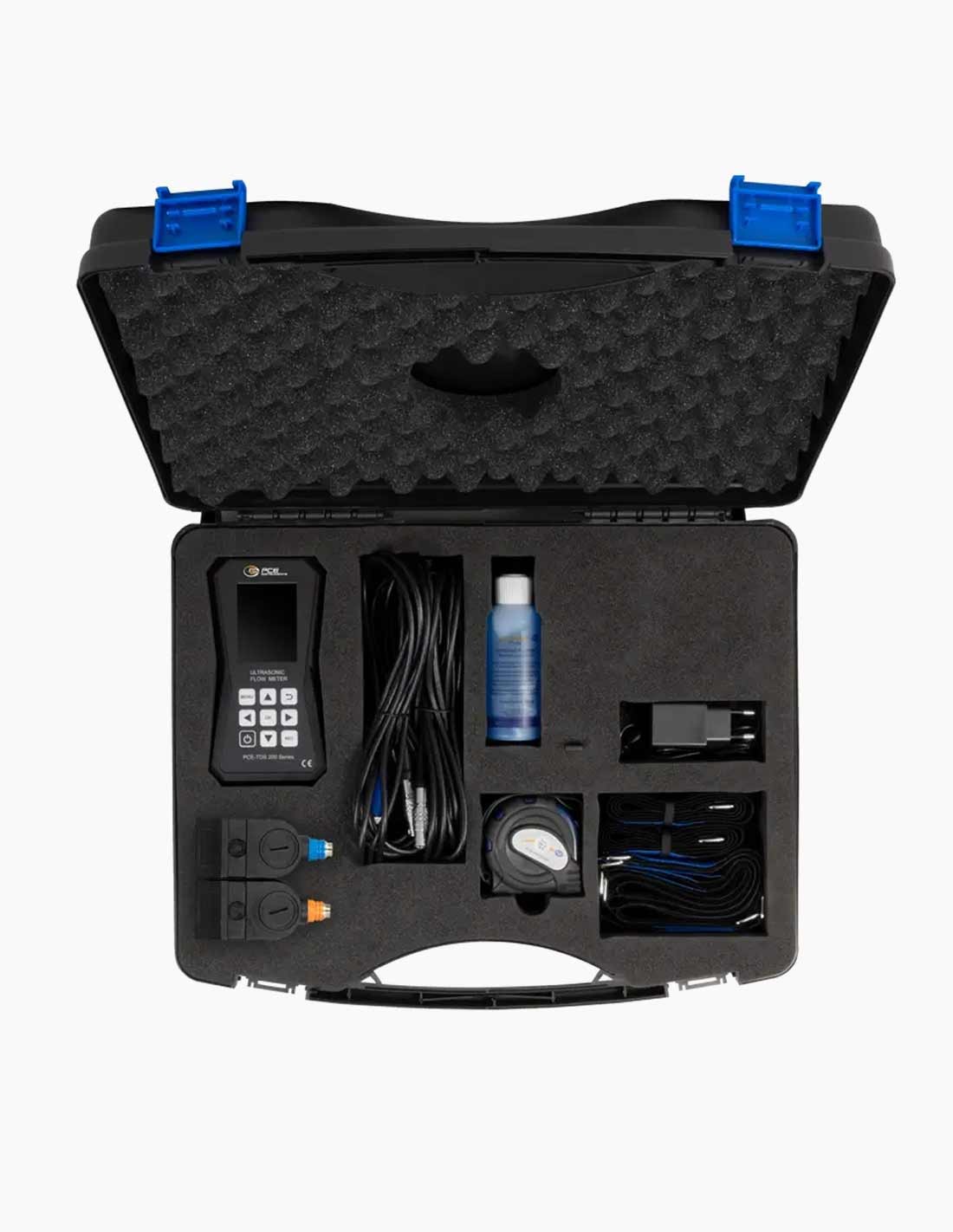

Delivery contents of the flowmeter

• 1 x Ultrasonic flowmeter
• 1 x TDS 200 L flow sensor
• 2 x 5 m extension cables
• 2 x Velcro straps
• 1 x Power adapter
• 1 x USB-C cable
• 1 x Coupling gel
• 1 x Tape measure
• 1 x Carrying case
• 1 x User manual

If you need to adapt the unit to another diameter range or installation type, check other compatible probes at professional measuring instruments.
