Ultrasonic flowmeter for pipes DN15-100 with SR sensor and rail

Flow measurement without plant shutdown with the TDS 200 Ultrasonic Flowmeter

Ultrasonic flowmeter DN15-100 is a portable instrument for ultrasonic flow measurement in pipes, designed for environments where the line cannot be drained, cut or intervened. Its focus is clear: obtain a reliable velocity/flow/volume measurement with assisted-installation support, reducing typical errors caused by poor alignment or incorrect sensor spacing.

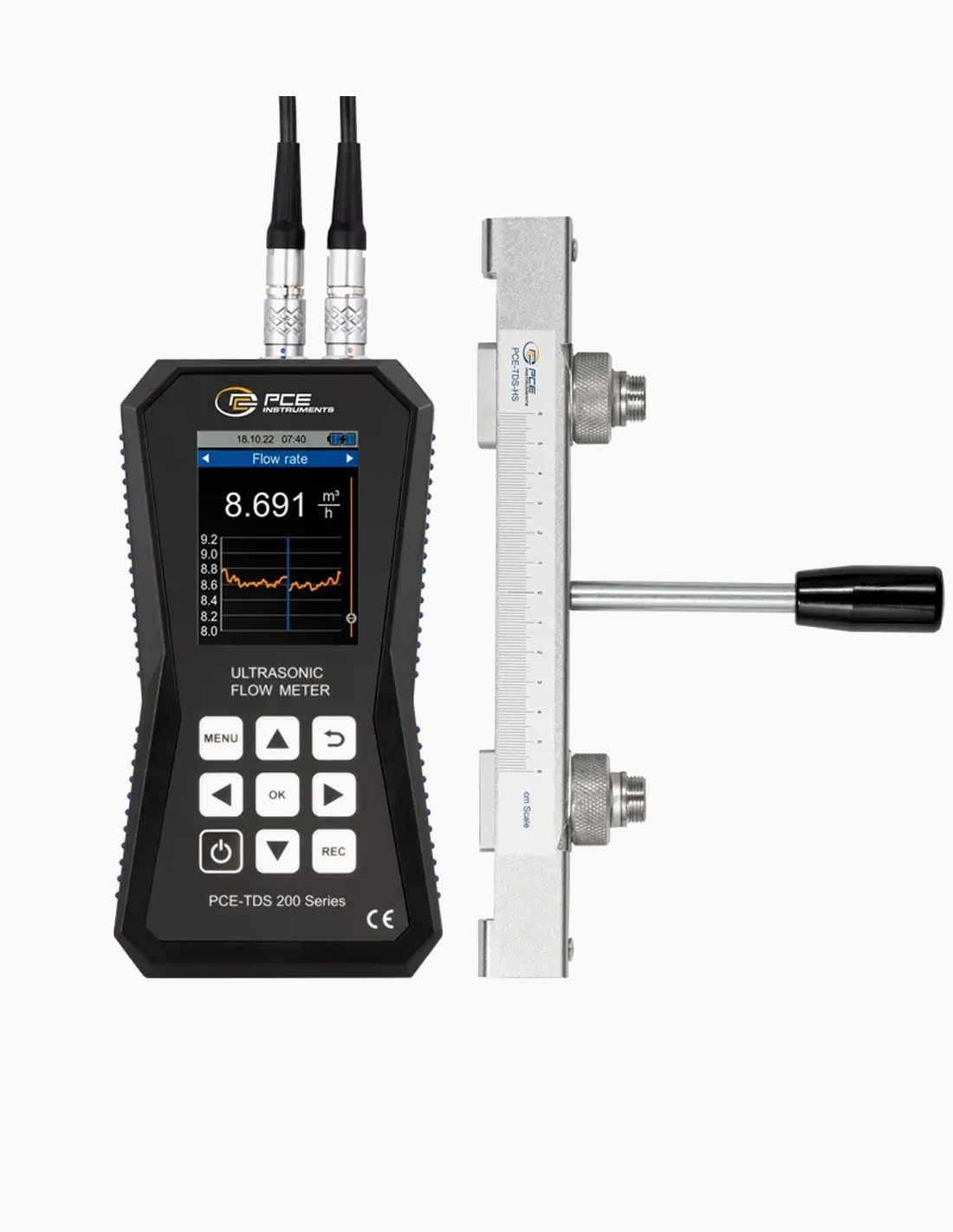

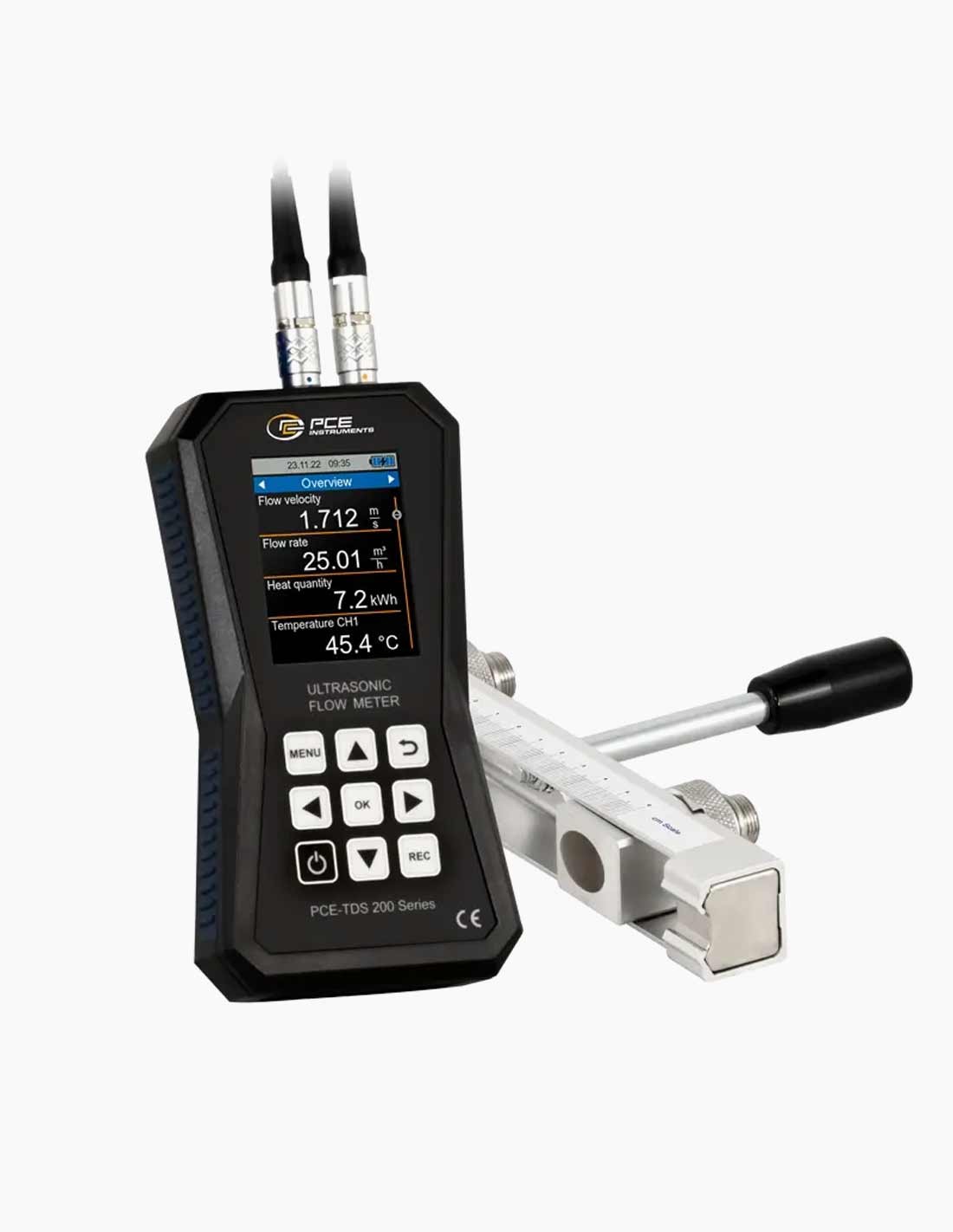

The on-screen installation aid guides the assembly and graphically displays signal quality and the correct distance between sensors. In this way, the device is aimed at maintenance technicians, process engineers and consumption auditors who require repeatability and traceability of the data, both for spot checks and for logging campaigns.

Applications of the ultrasonic flowmeter in pipes and water networks

• Flow verification in process lines and utility services without stopping production.
• Diagnostic campaigns in networks: water balance, deviation detection and operational control.
• Consumption monitoring through programmable logging and export for analysis.
• Inspection of hydraulic systems during preventive maintenance and commissioning.

Key features of the flowmeter for pipes with logging and alarms

• Internal data logging of large volumes for extended campaigns, with programmable start and stop.

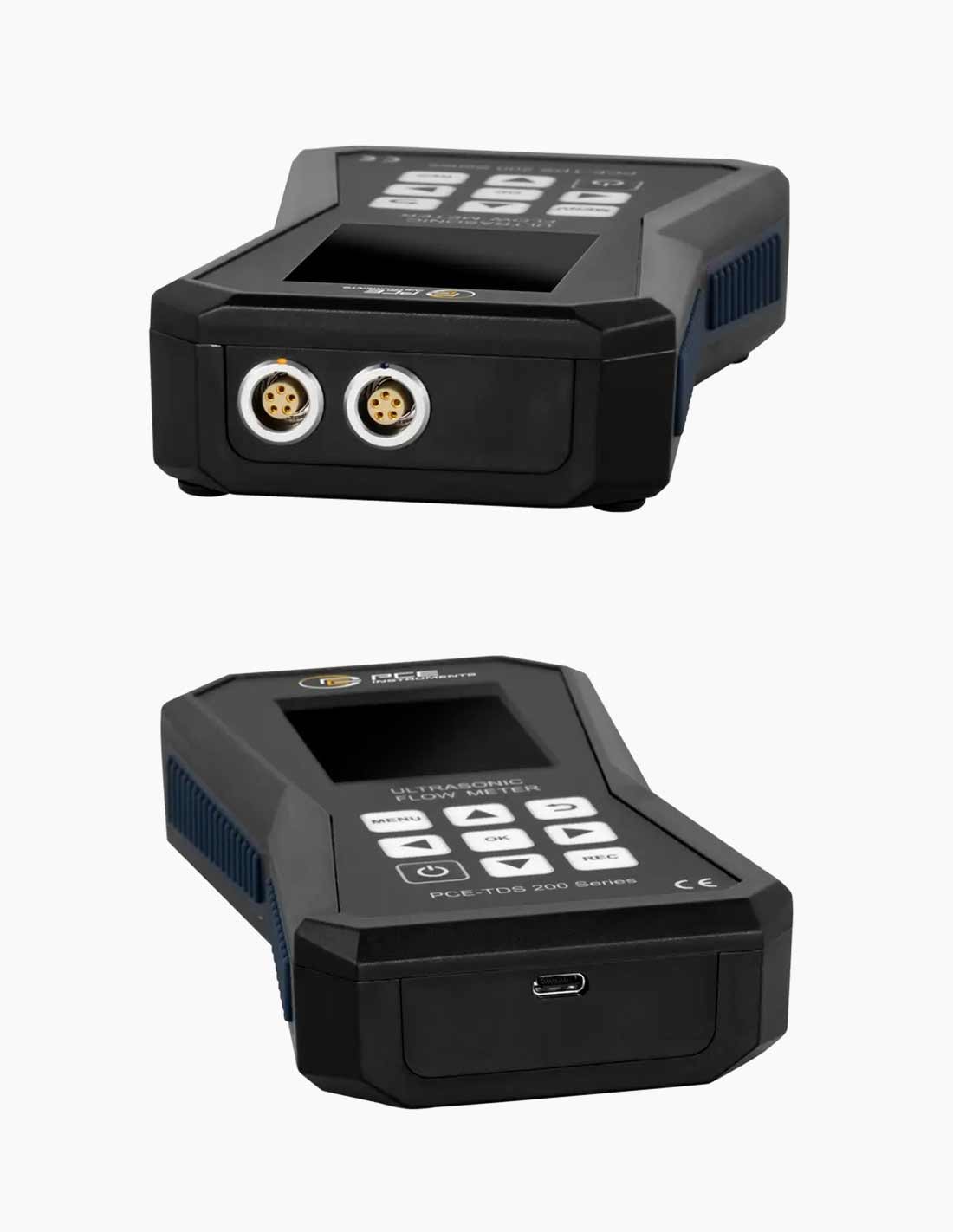

• USB-C interface for data transfer, real-time viewing and device charging.
• Optional software for table and graph analysis, CSV export and PDF report generation.
• Configurable alarms for control thresholds in the field or during tests.
• Compatibility with multiple media and medium configuration to adapt the speed of sound when necessary.

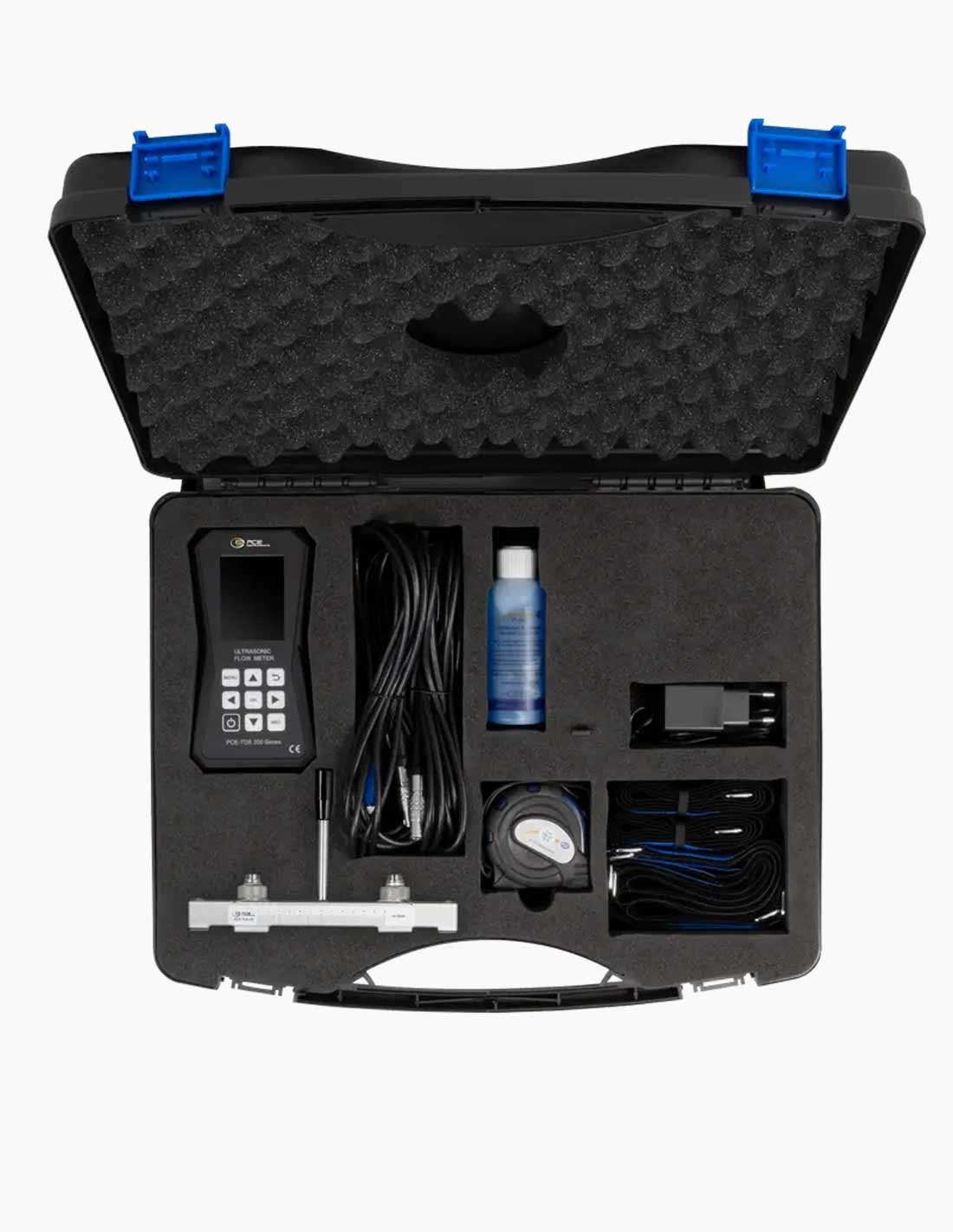

What is included with the TDS 200 series ultrasonic flowmeter

• Ultrasonic flowmeter (main unit) and transport case.

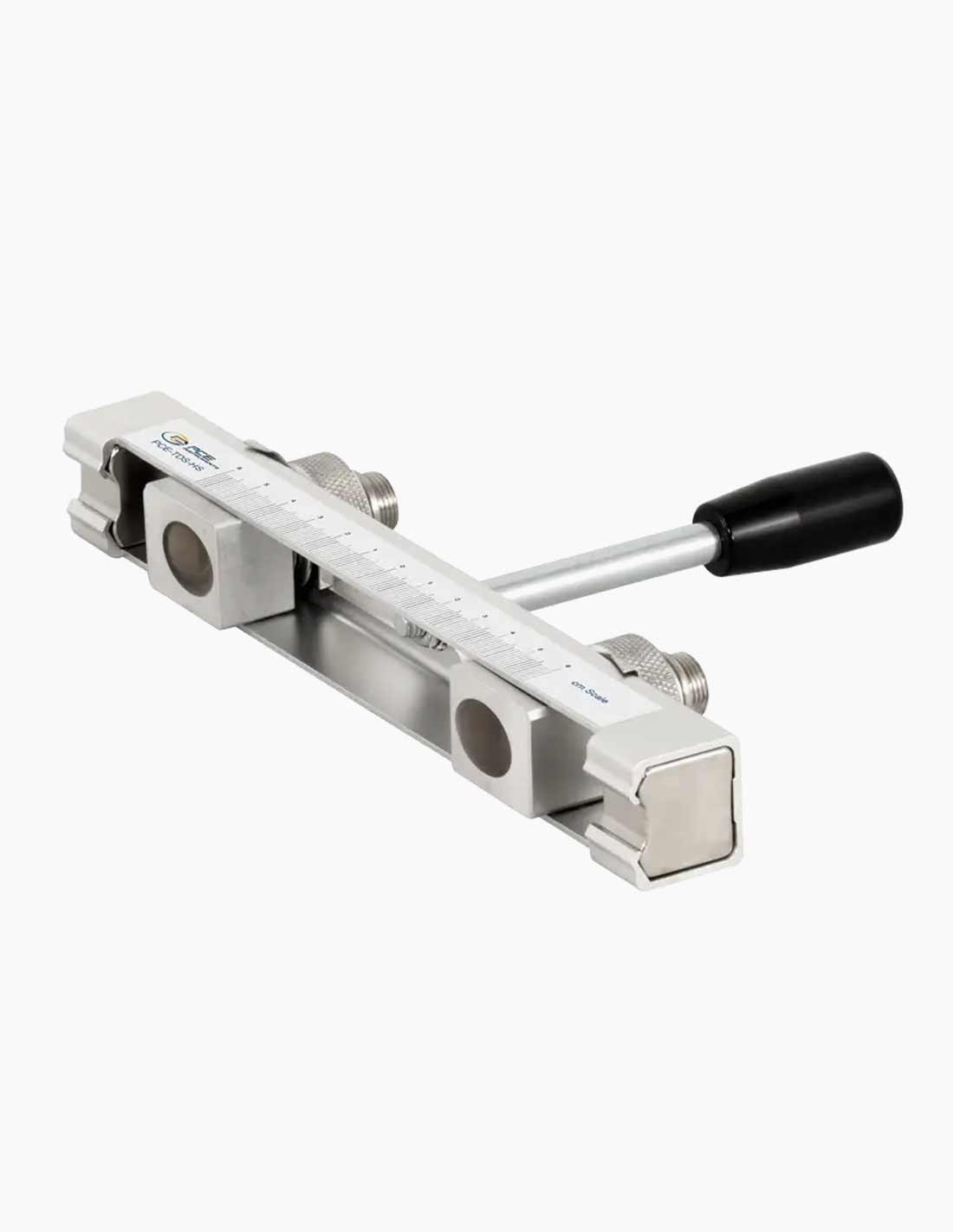

• Set of SR flow sensors for rail mounting.
• Extensions, velcro flanges, coupling gel, tape measure and manual.
• USB-C cable and mains adapter.

For metrological traceability needs, an ISO or DAkkS calibration certificate can be requested. If you need other diameter ranges or probe types, consult our professional measuring instruments page: professional measuring instruments.
