Flowmeter for Pipes DN50-700 with Sensor 200+M

Flow diagnosis without line shutdown using the Flowmeter for Pipes DN50-700 with Sensor 200+M

Flowmeter for Pipes DN50-700 with Sensor 200+M is intended for tasks where verifying and documenting the hydraulic behaviour of an installation is required without dismantling or interrupting supply. Ultrasonic measurement enables non-intrusive operation, reducing operational risks and avoiding the insertion losses associated with inline elements.

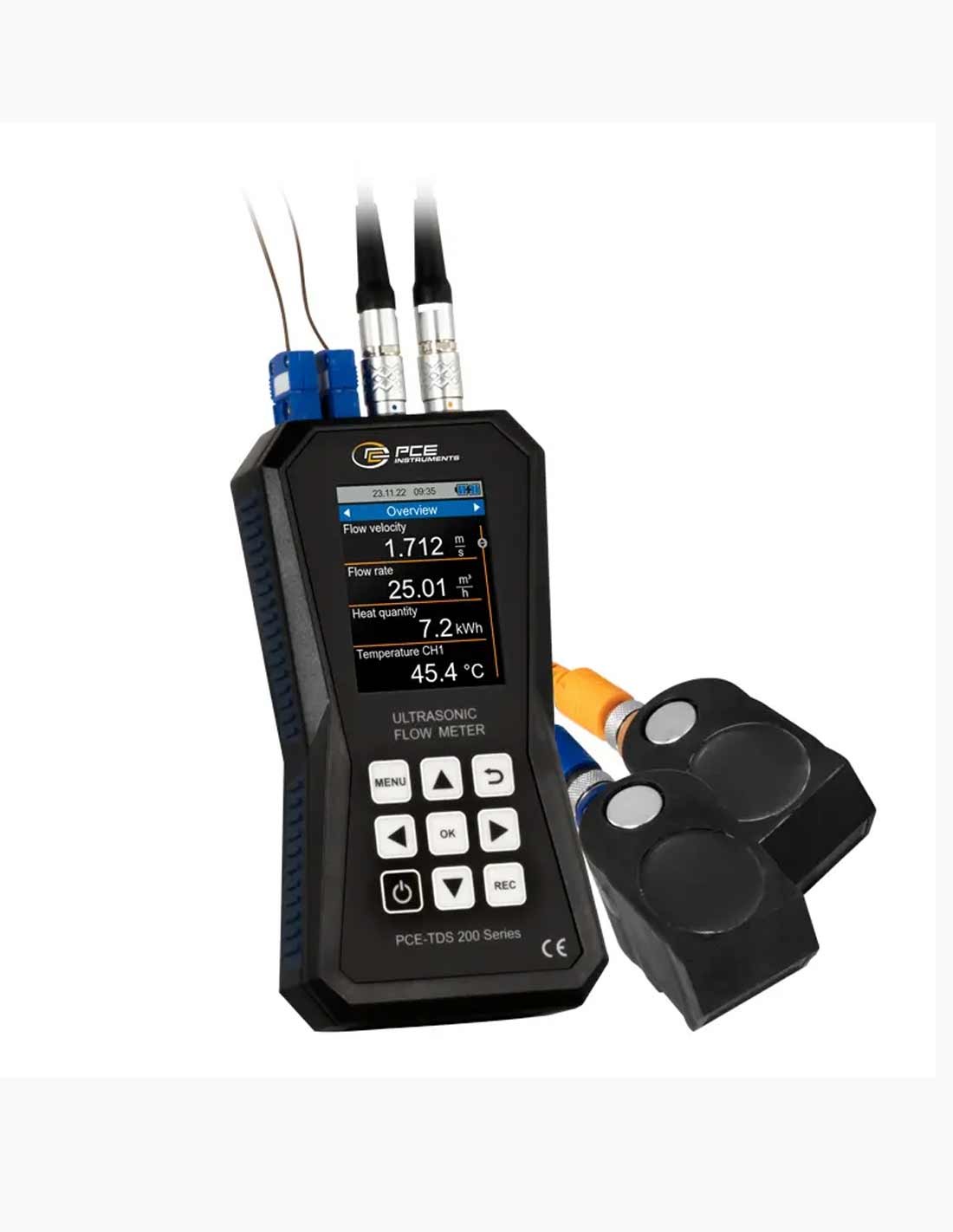

To ensure consistent field results, the instrument includes an installation help menu that graphically shows signal quality and validates sensor spacing/positioning. After entering pipe and fluid parameters, the instrument displays velocity, flow rate and volume on screen, facilitating decision-making in maintenance, consumption audits or performance verification.

Key features of the ultrasonic flowmeter for pipes

• Measurement without process interruption: suitable solution for verifications on existing installations and unplanned shutdowns.
• Logging and traceability: internal memory for extended campaigns with configurable start/stop and logging rate.

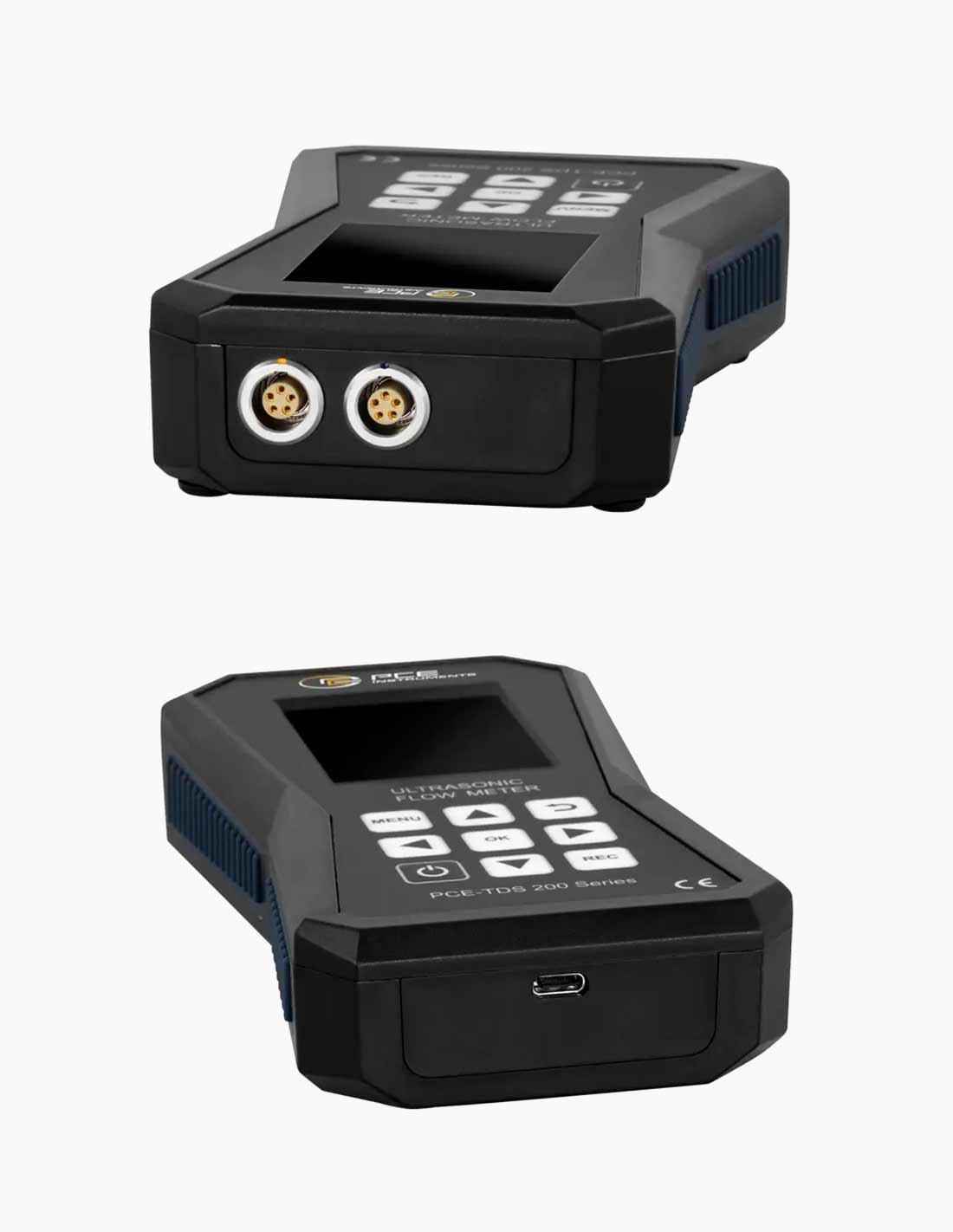

• Data management: USB-C connection for transfer and viewing; optional software for graphical analysis/tables, CSV export and PDF report generation.
• Operational control: fully configurable alarms for process thresholds and deviation monitoring.
• Application versatility: suitable for multiple liquids with custom fluid configuration option.
• Optional calibration: ISO or DAkkS calibration certificate available for quality-sensitive environments.

Applications for water and other liquids

• Flow verification in water circuits (utilities, process, internal networks and recirculations).
• Performance checks of pumps, valves and hydraulic balancing.
• Measurement campaigns with logging for internal audits and before/after intervention comparisons.
• Diagnosis of installations where inline flowmeter installation is not feasible.

Thermal measurement and heating verification (200+ series)

In configurations with temperature sensors, the instrument can support evaluation of thermal systems by reading supply/return temperatures and the measured flow, aimed at heating checks and energy analysis depending on model configuration.

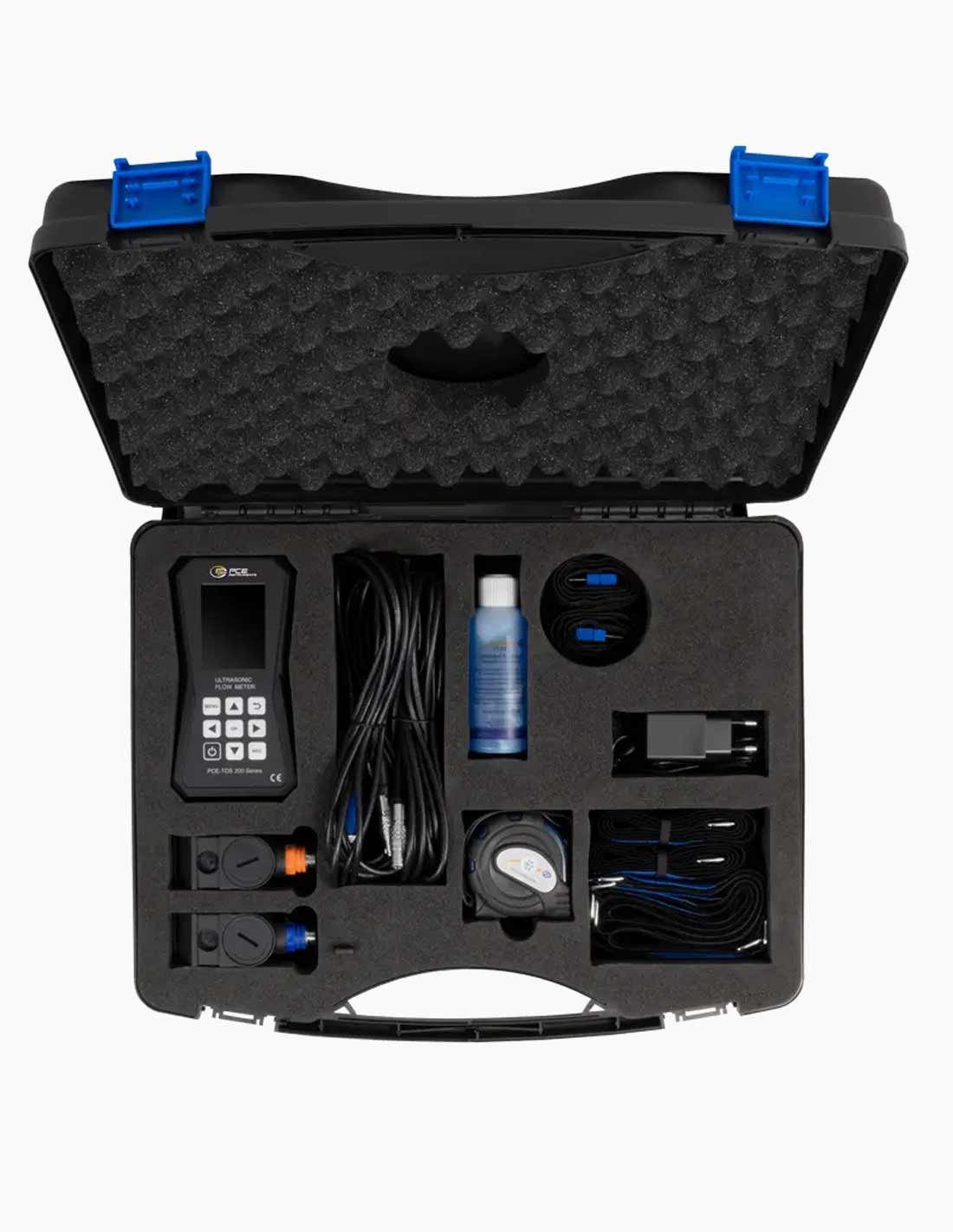

Shipping contents and commissioning

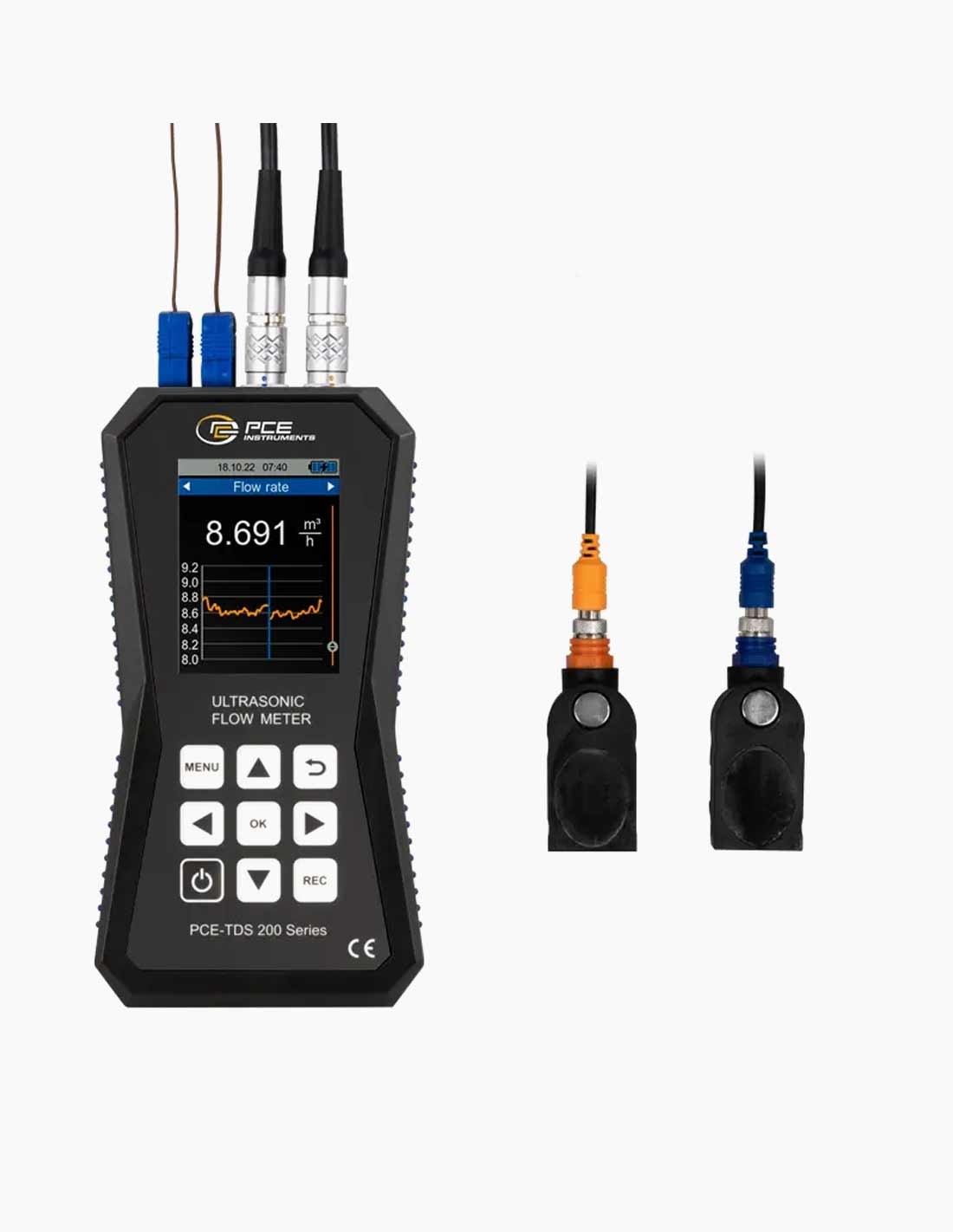

• Ultrasonic flowmeter (main unit) with colour display

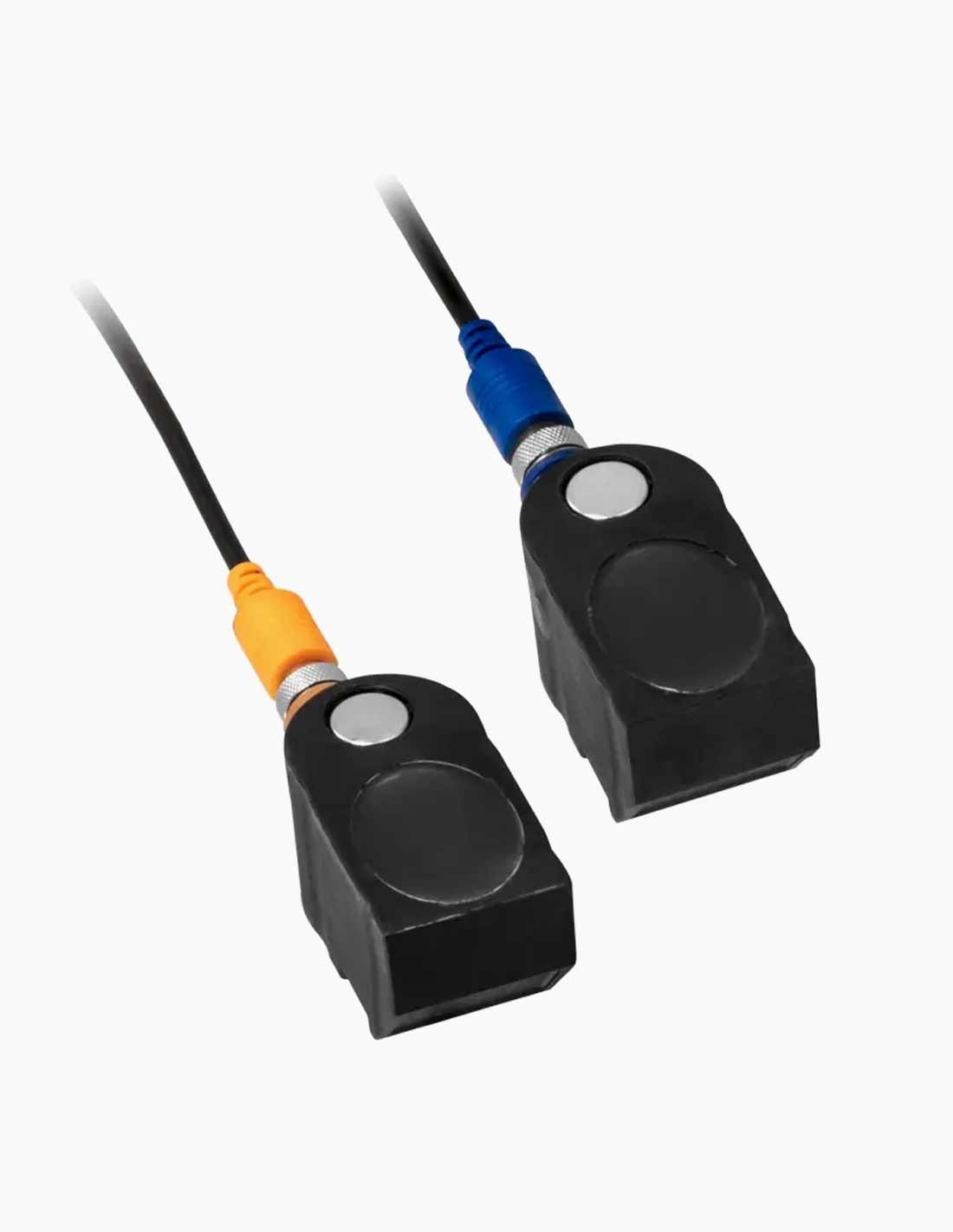

• Flow sensors compatible with the indicated DN range (depending on configuration)

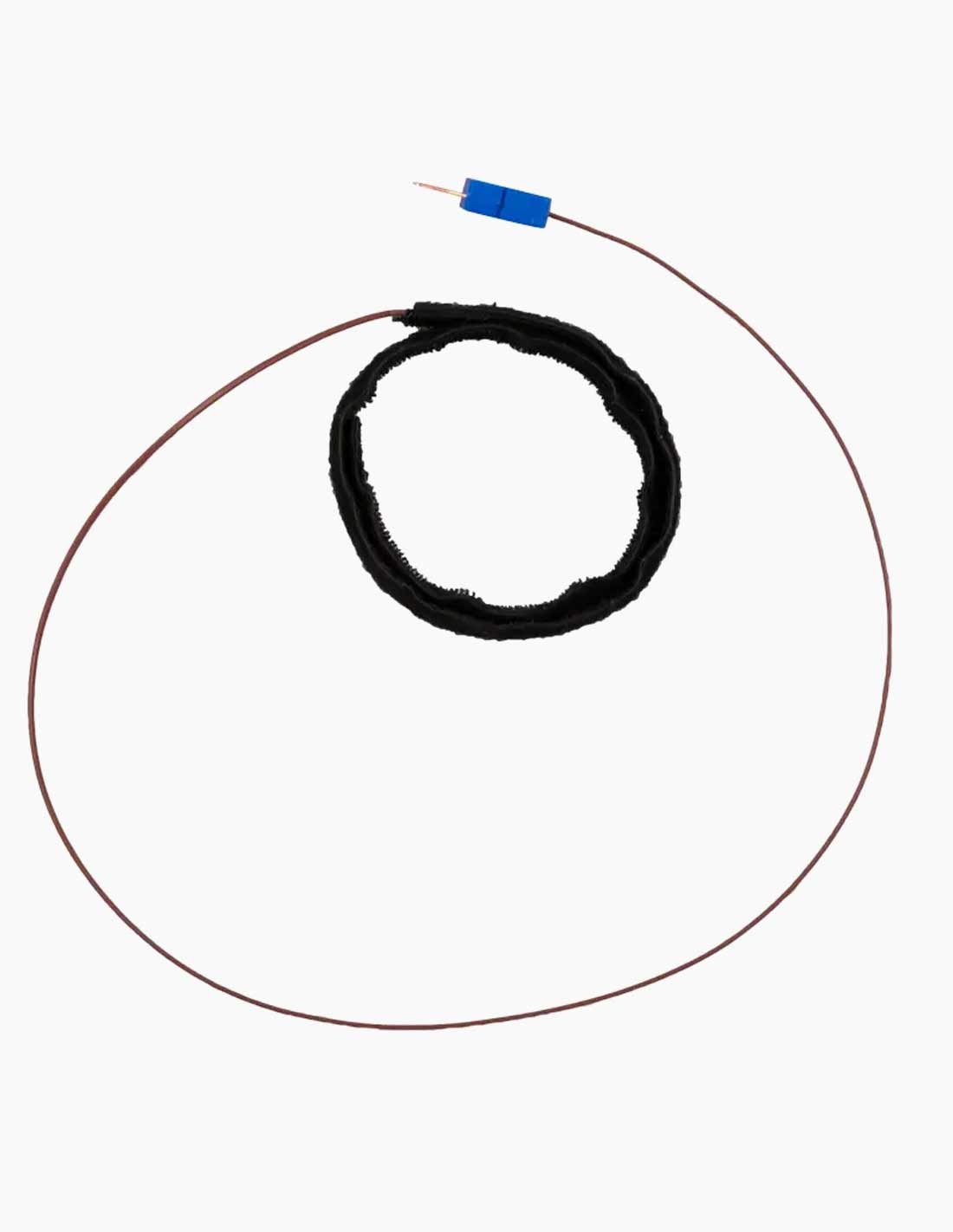

• Temperature probes (according to 200+ version)
• Extensions, Velcro straps and coupling gel for installation
• USB-C cable, power adapter, tape measure, carrying case and manual
