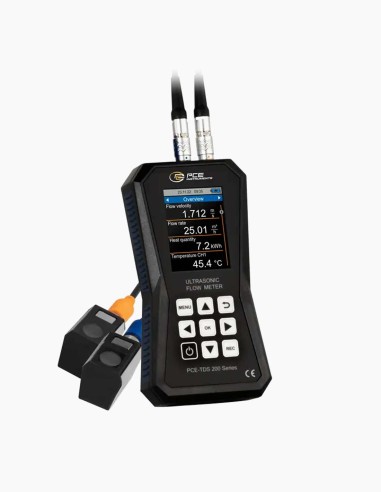

Ultrasonic flow meter TDS 200. Flow meter. Flow measurement in pipes without cutting - Conservatis

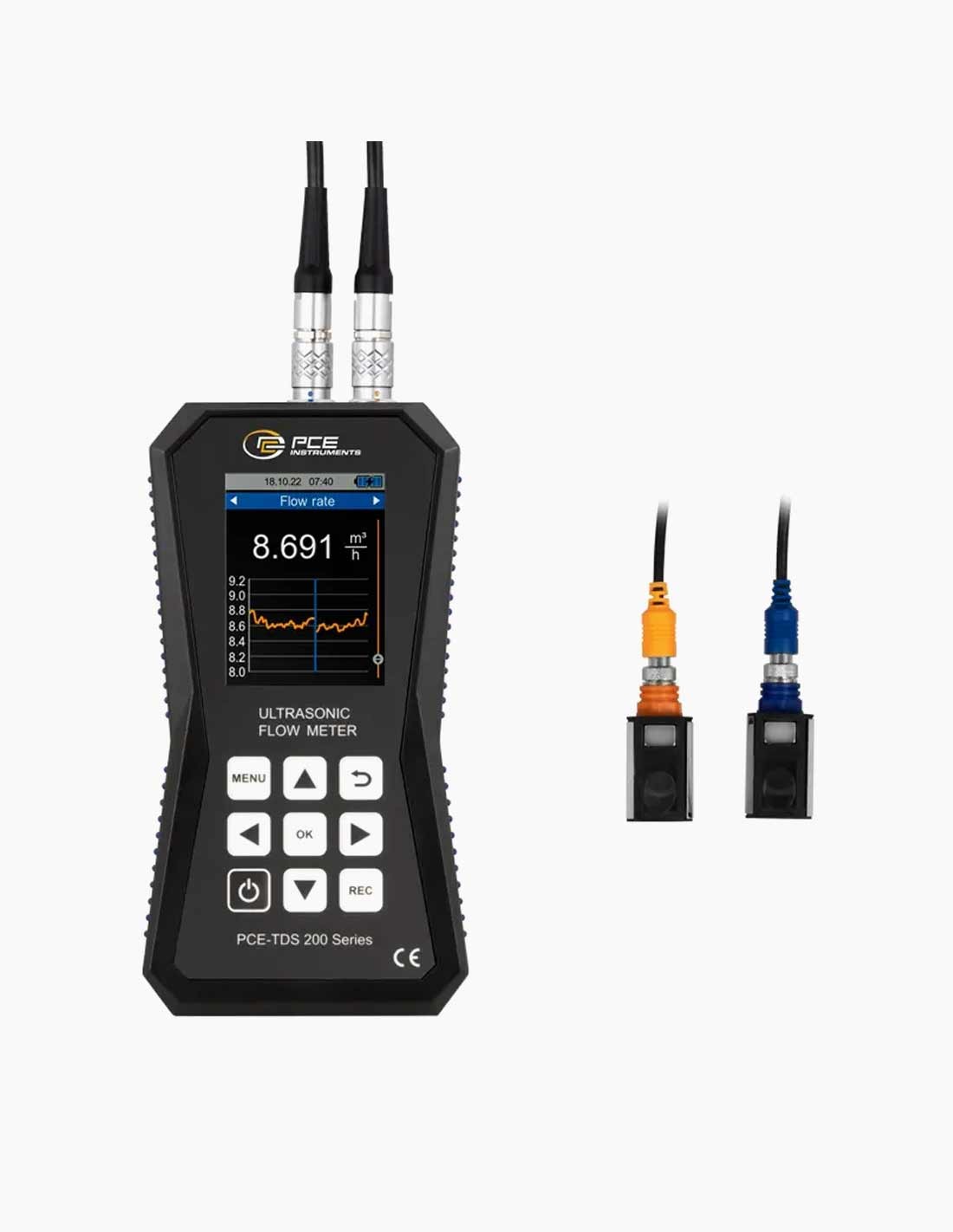

Ultrasonic flow meter TDS 200. Ultrasonic flow meter. Portable meter with LCD display 2-8 - Conservatis

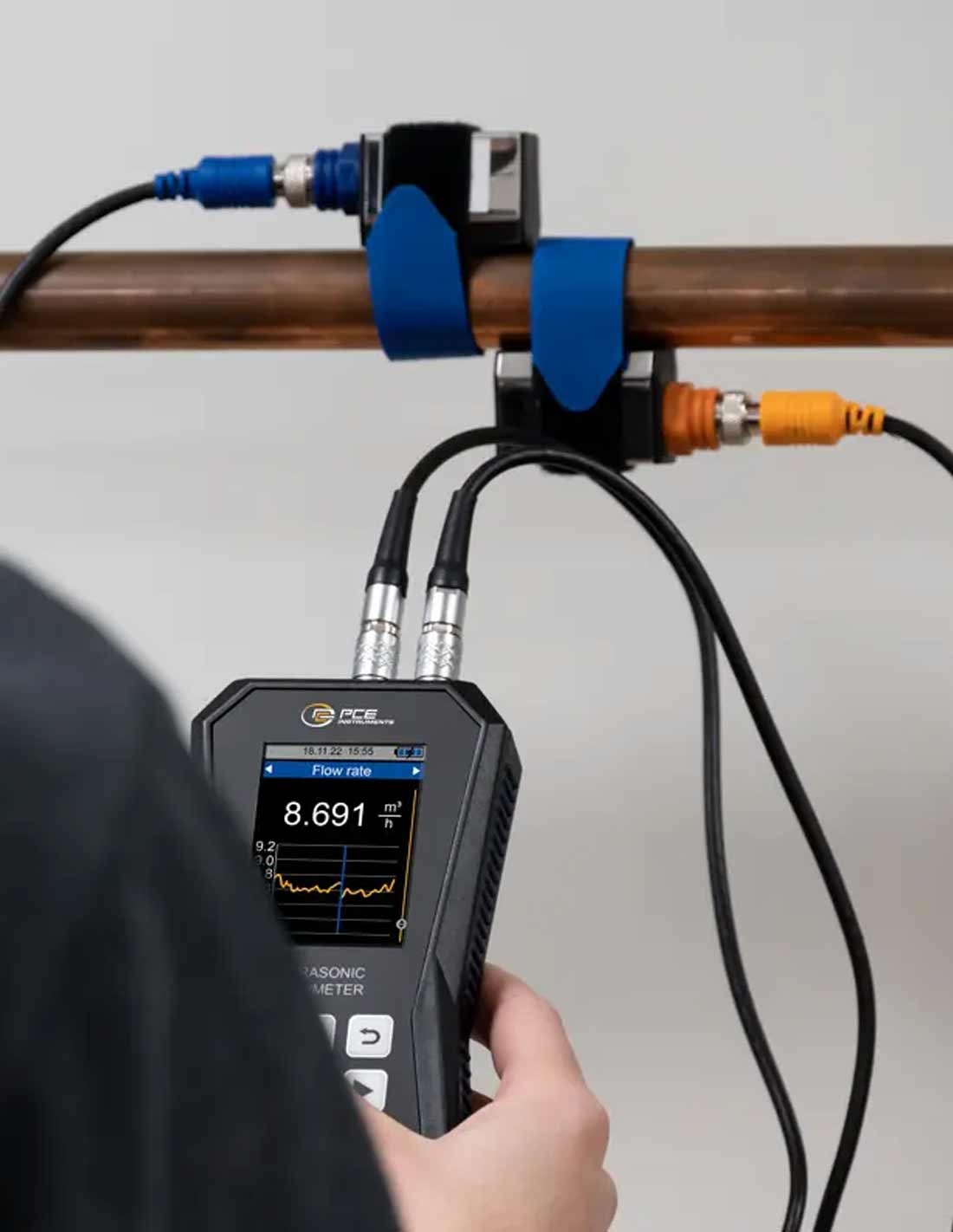

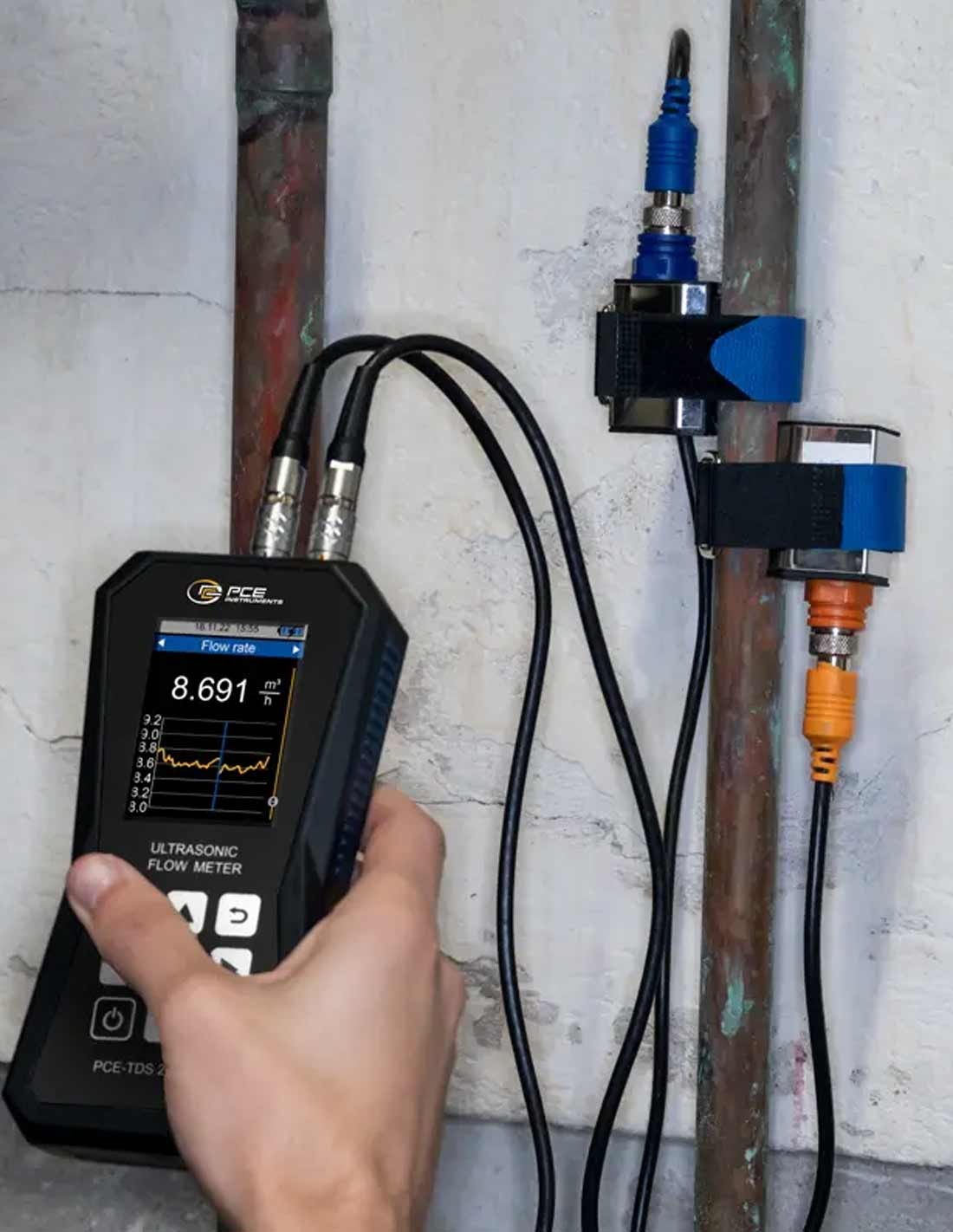

Ultrasonic flow meter TDS 200. Flow meter for pipes. Clamp-on sensors. Outdoor installation - Conservatis
Ultrasonic flow meter PCE-TDS 200. Flow meter for water. Flow control and data logging - Conservatis
Ultrasonic flow meter PCE-TDS 200. Ultrasonic flow meter. 32 GB memory and CSV export - Conservatis

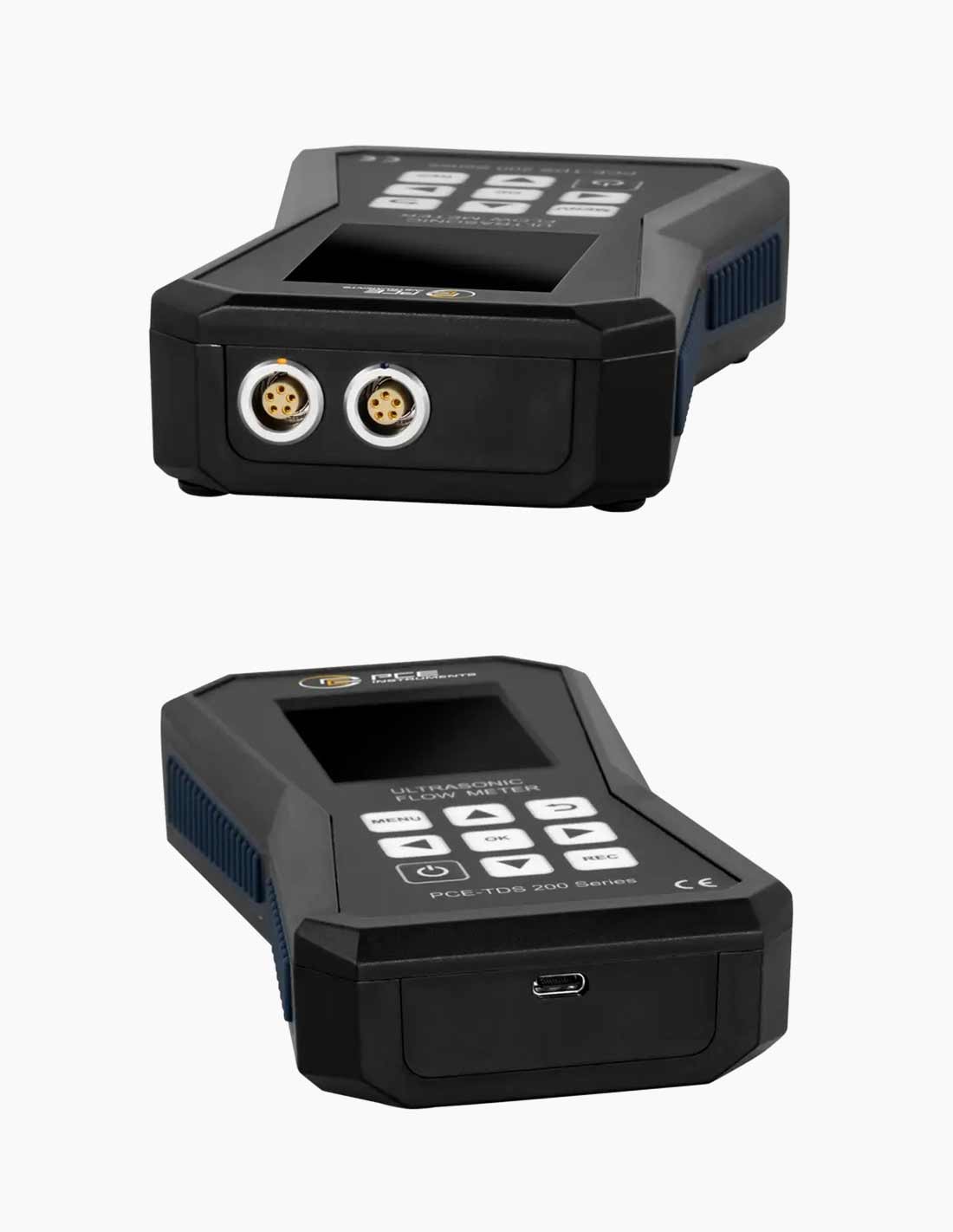

Ultrasonic flow meter PCE-TDS 200. Flow meter for pipes. USB-C interface and analysis software - Conservatis

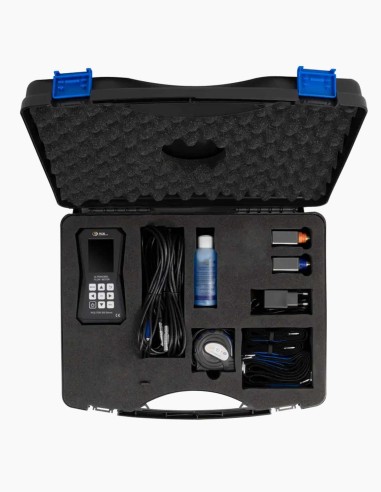

Ultrasonic flow meter PCE-TDS 200. Flow meter. Carrying case kit with sensors, coupling gel and accessories - Conservatis
Ultrasonic flow meter TDS 200. Flow meter. Flow measurement in pipes without cutting - Conservatis
Ultrasonic flow meter TDS 200. Ultrasonic flow meter. Portable meter with LCD display 2-8 - Conservatis
Ultrasonic flow meter TDS 200. Flow meter for pipes. Clamp-on sensors. Outdoor installation - Conservatis
Ultrasonic flow meter PCE-TDS 200. Flow meter for water. Flow control and data logging - Conservatis
Ultrasonic flow meter PCE-TDS 200. Ultrasonic flow meter. 32 GB memory and CSV export - Conservatis
Ultrasonic flow meter PCE-TDS 200. Flow meter for pipes. USB-C interface and analysis software - Conservatis
Ultrasonic flow meter PCE-TDS 200. Flow meter. Carrying case kit with sensors, coupling gel and accessories - Conservatis

Ultrasonic flowmeter for pipes D15-100 with S sensor

F0405455
€2,259.90
€2,734.48 Incl. VAT
€2,259.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

Ultrasonic flowmeter for pipes DN15-100 with S sensor based on ultrasonic technology for non-intrusive pipe measurement, designed for diagnostics, verification and maintenance without interrupting the process. This flowmeter combines accuracy, repeatability and internal logging for on-site data traceability.

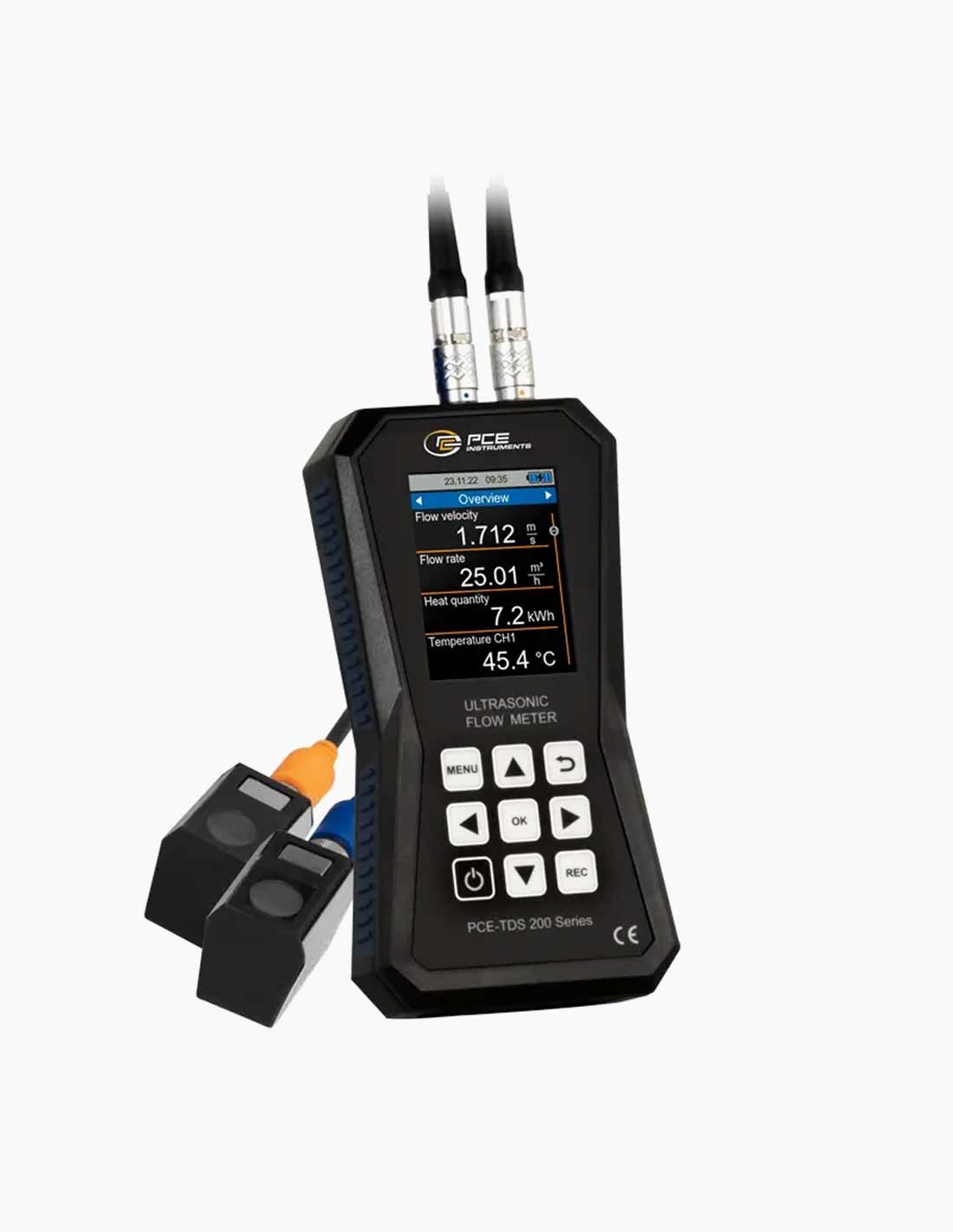

Its installation guidance system helps position the sensors correctly and displays signal quality graphically, reducing common mounting errors. Once pipe material and fluid are configured, it displays velocity, flow and volume in multiple units, with parameterizable alarms according to operating thresholds.

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



Reliable measurement without stopping the process with the TDS 200 ultrasonic flowmeter

When you need to verify flow rates on existing pipes without cutting the line, without welding work and while minimizing operational risk, a clamp-on ultrasonic flowmeter is the most efficient technical solution. The flowmeter with S sensor is designed for control, audit and maintenance tasks in industrial and utility installations, combining portable measurement with data logging for later analysis.

The unit includes installation assistance features that help ensure correct mounting: the device guides the adjustment of pipe and fluid parameters, and provides a graphical indication of signal quality and the relative positioning between transducers. This reduces deviations due to poor coupling or incorrect spacing between transducers, improving field reading consistency.

Applications of the ultrasonic flowmeter on pipes

  • Flow verification in process water circuits, recirculation, cooling systems and general services.
  • Performance diagnosis of pumps and identification of losses or flow deviations without intrusion.
  • Spot checks and measurement campaigns with internal logging for traceability.
  • Measurement on various compatible liquids, with preconfigured fluid selections and the option for manual parameterization according to ultrasound velocity.

Key features of the flowmeter for pipes DN15-100

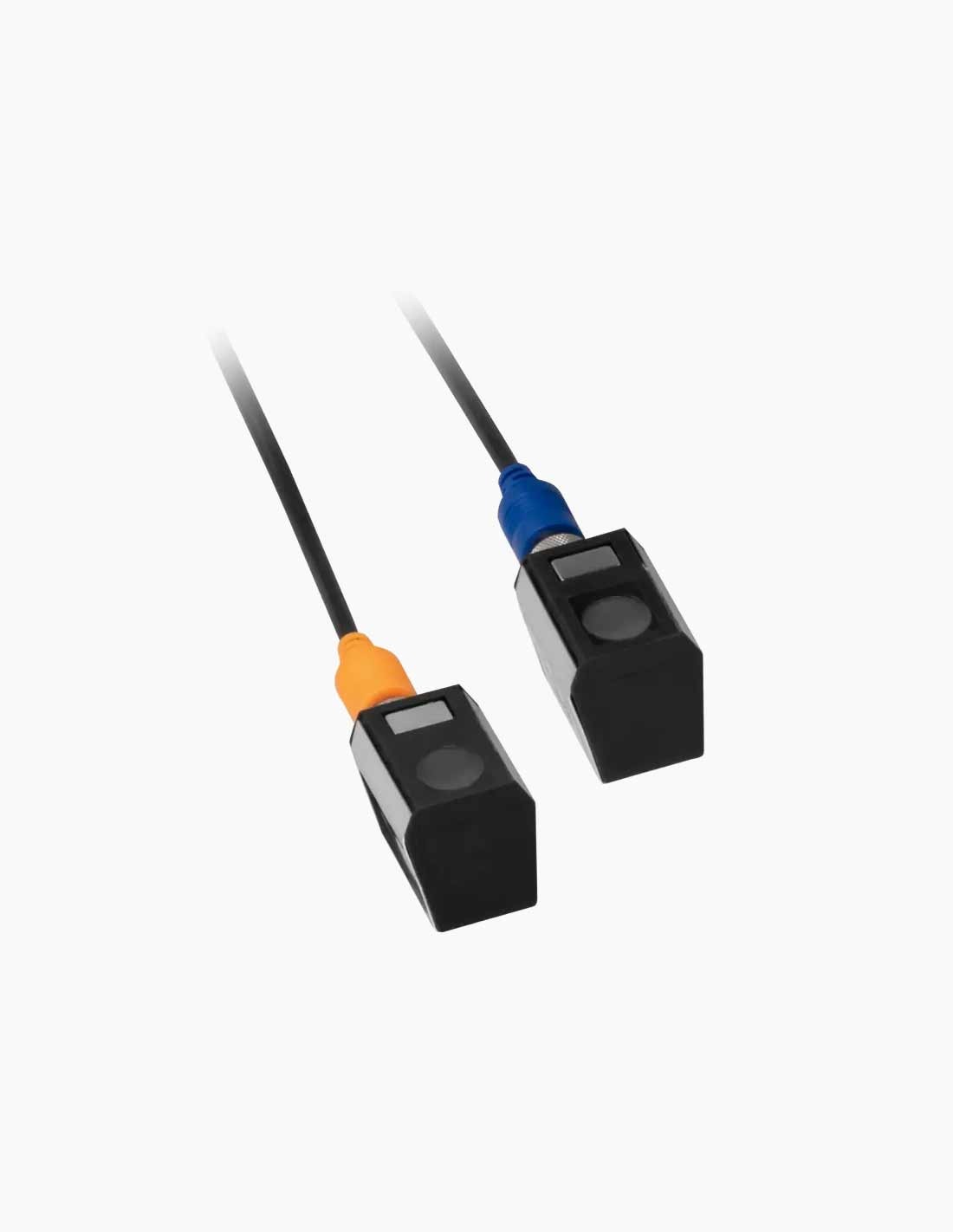

  • Non-invasive measurement: external installation using sensors, no direct contact with the fluid.
  • Logging and traceability: internal storage for data series with configurable logging intervals and start/stop scheduling.
  • Configurable alarms: free threshold settings for operational monitoring.
  • Data transfer and handling: USB-C connection for download and support for real-time measurement/visualization with optional software.
  • Reporting and export: with optional software, table/chart analysis, CSV export and PDF report generation.
  • Optional calibration: supply with ISO or DAkkS certificate available for quality and audit requirements.

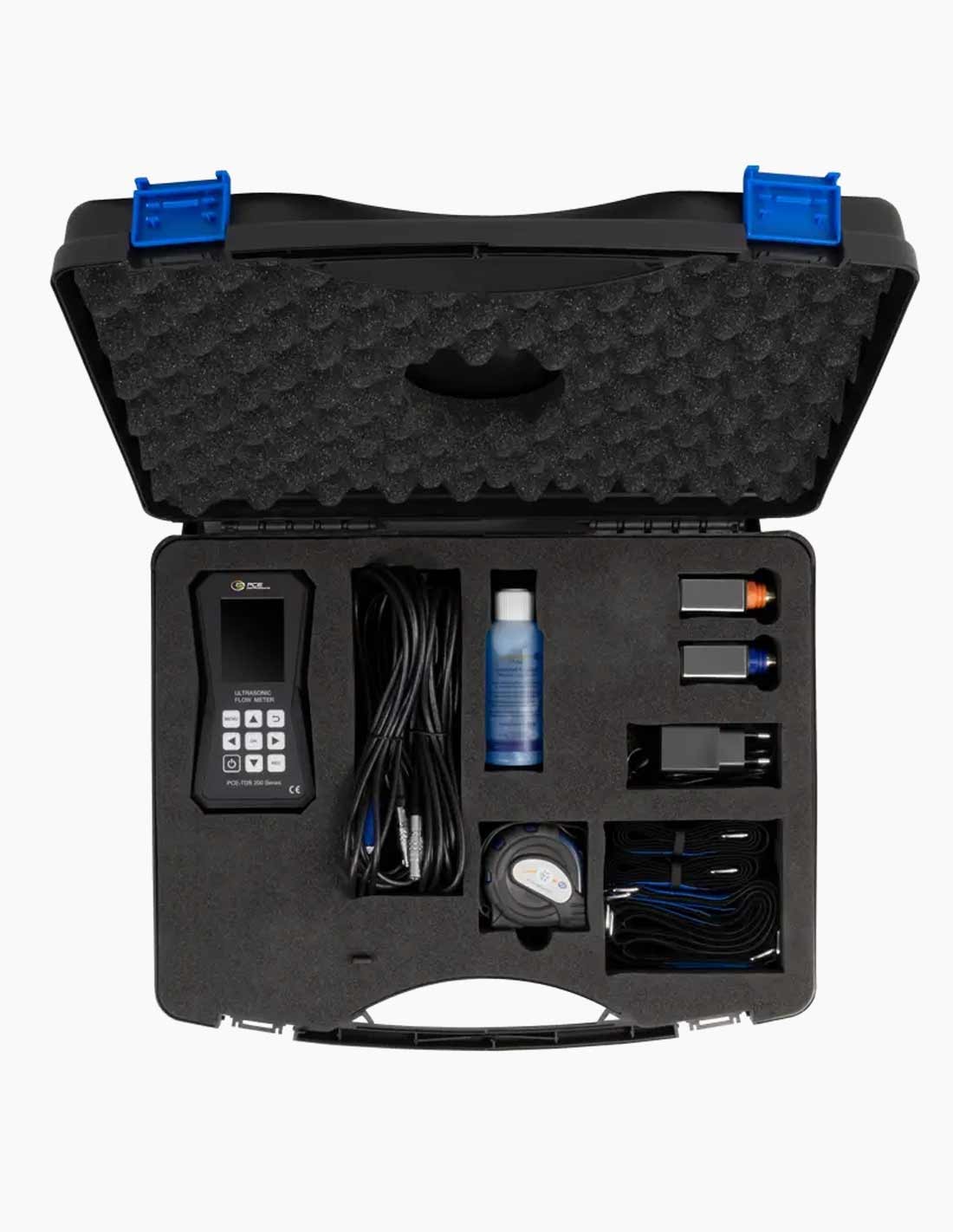

Delivery contents

  • TDS 200 ultrasonic flowmeter
  • Flow sensors (according to indicated kit)
  • Extensions and Velcro straps for installation
  • USB-C cable and power adapter
  • Coupling gel
  • Measuring tape, carrying case and user manual

If you need adaptation by diameter or application, visit the professional measurement instruments page.

Temperature measuring range
-30 ... +160 °C (fluid temperature)
Display
2,8" LCD
Port
USB (for real-time measurement, data transfer, and battery charging)
Environmental working conditions
Temperature: -20 ... +65 °C; 10 ... 95 % RH, non-condensing
Weight
255 g
Measurement quota
Adjustable between 1 second and 12 hours
Protection type
IP52
Repeatability
±0,5 % of reading
Power supply
3,7 V / 2500 mAh LiPo battery
Dimensions (total)
165 x 85 x 32 mm
Battery life
Approx. 10 h
Menu languages
German / Chinese / Spanish / French / Dutch / English / Italian / Japanese / Polish / Portuguese / Russian / Turkish
Power supply USB
USB / 5 V DC / 500 mA
Medium
Water; Seawater; Oil; Crude oil; Diesel; Ethanol; Gasoline; Methanol; Petroleum; Custom (manual adjustment of the medium's speed of sound)
Flow measurement range
±32 m/s
Flow resolution
0,001 m/s
Memory Capacity
32 GB (10 million values)
Others
Measurement method: N / V / W / Z
Start-up options
Adjustable start and stop time
