Ultrasonic Flowmeter for Pipes DN300-6000 with 200+ L Sensor

F0405460
€3,379.90
€4,089.68 Incl. VAT
€3,379.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

Ultrasonic flowmeter for pipes DN300-6000 with 200+ L sensor designed to measure flow without interrupting the process, with clamp-on installation and graphical verification of signal and positioning. It is a technical solution for consumption audits, hydraulic balancing and performance verification on existing lines, minimizing shutdowns and modifications to the installation.

The unit can display velocity, flow and volume in multiple units, log measurement campaigns in its internal 32 GB memory and transfer data via USB-C. With optional software, it is possible to analyze trends in table or chart form, export to CSV and generate PDF reports, as well as real-time monitoring.

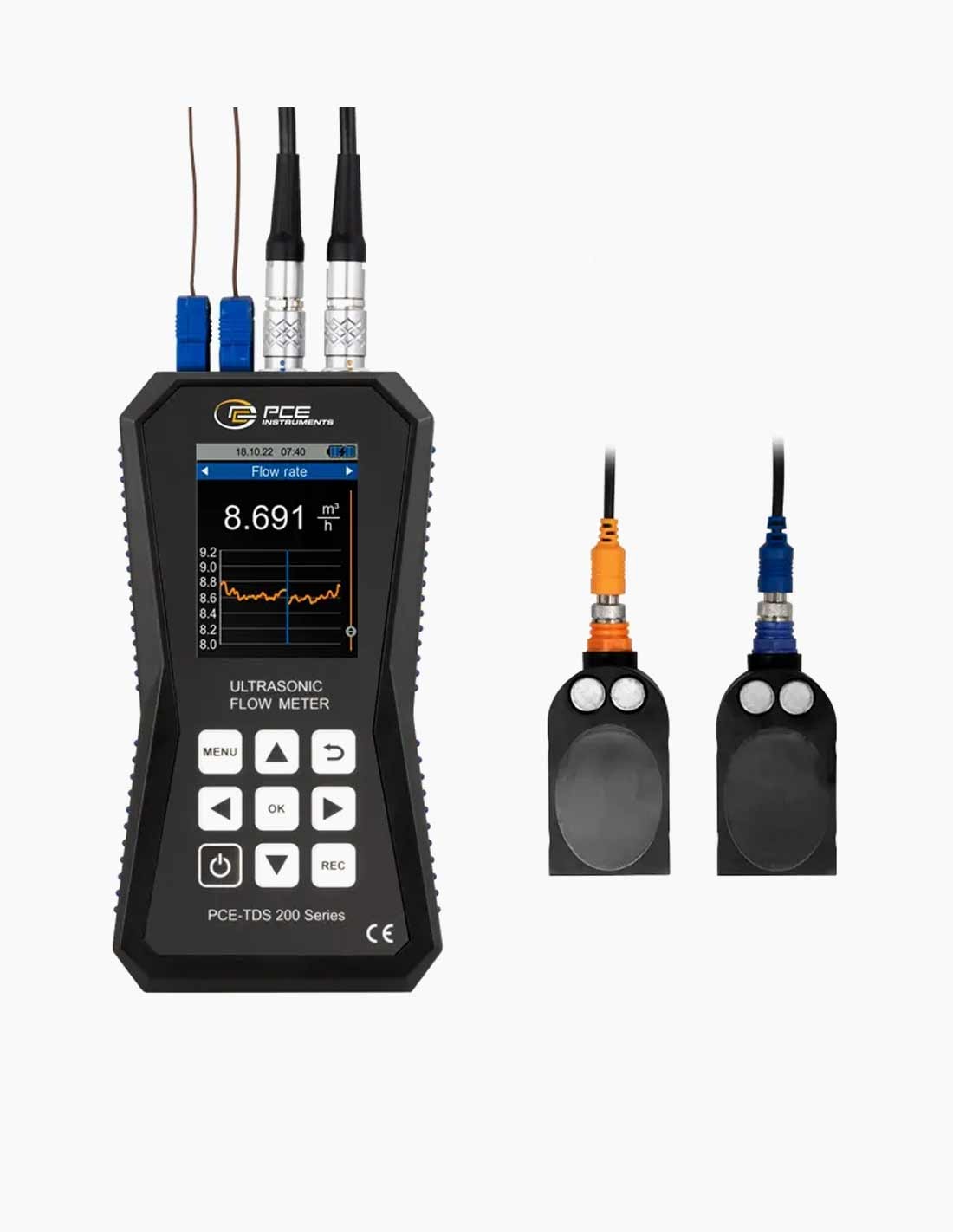

The DN300-6000 flowmeter is supplied as a kit with sensors for large diameter (DN 300…6000 mm) and temperature probes for thermal measurement in the 200+ model, in a portable set with 2.8" color LCD and carrying case.

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



Non-intrusive measurement and advanced logging with the TDS 200+ L Ultrasonic Flowmeter

The TDS 200+ L Ultrasonic Flowmeter solves the common need to measure flow in large-diameter pipes without cutting the line or stopping operation. Its ultrasonic measurement with external sensors allows implementation of process control, flow verification and diagnostic campaigns with minimal intervention on the installation.

To ensure consistent field results, the unit includes an installation assistant that graphically displays signal quality and helps confirm correct spacing and positioning of the transducers. Once the fluid and the pipe are configured, the instrument presents process variables and facilitates operational decision-making with configurable alarms.

Key features of the ultrasonic flowmeter

  • Clamp-on installation for non-intrusive pipe measurement without process shutdown.
  • Internal memory for logging campaigns and measurement traceability, with programmable start/stop and logging interval.

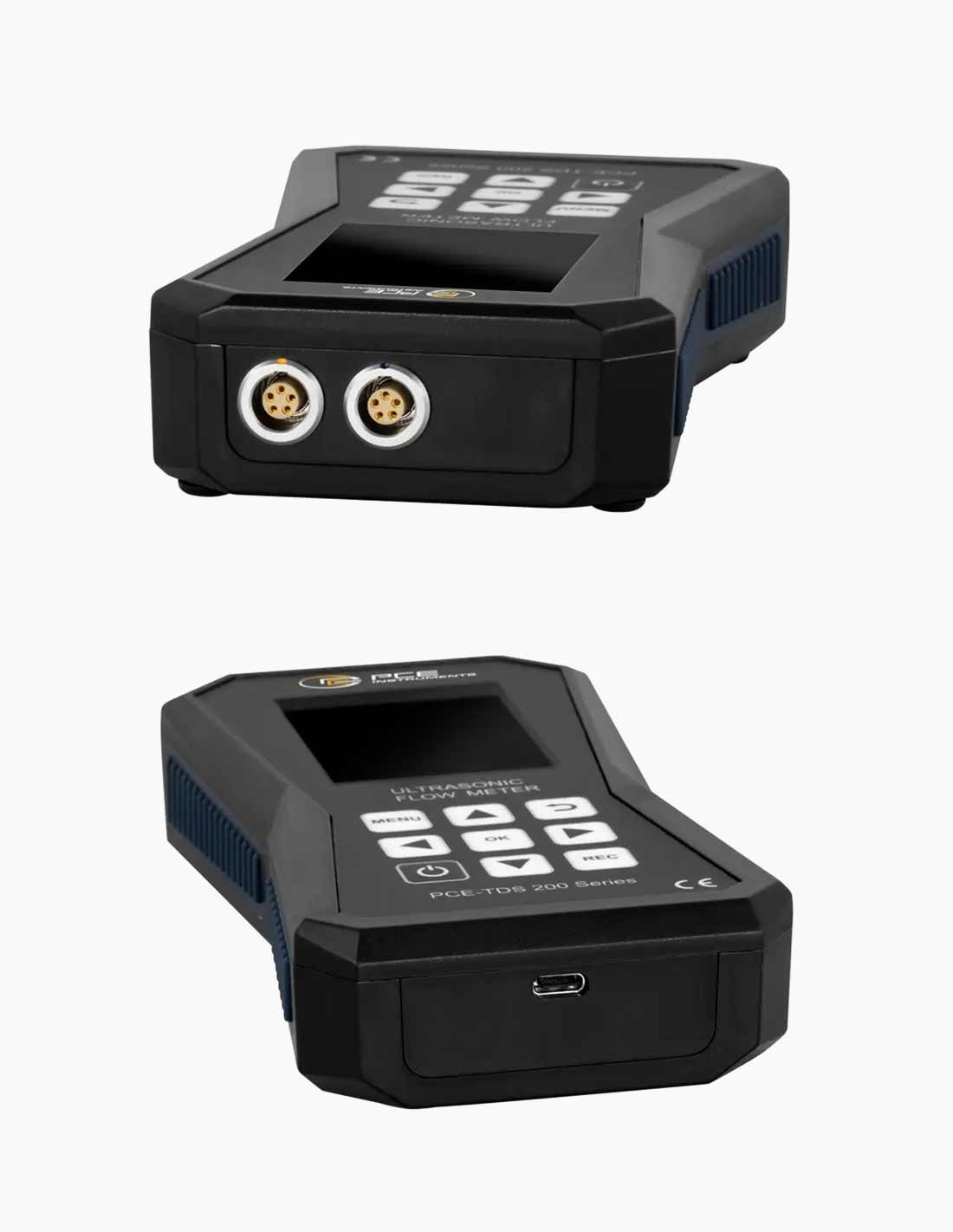

  • USB-C interface for data transfer, device configuration and real-time measurement support.
  • Optional analysis software: table or chart visualization, CSV export and PDF report generation.

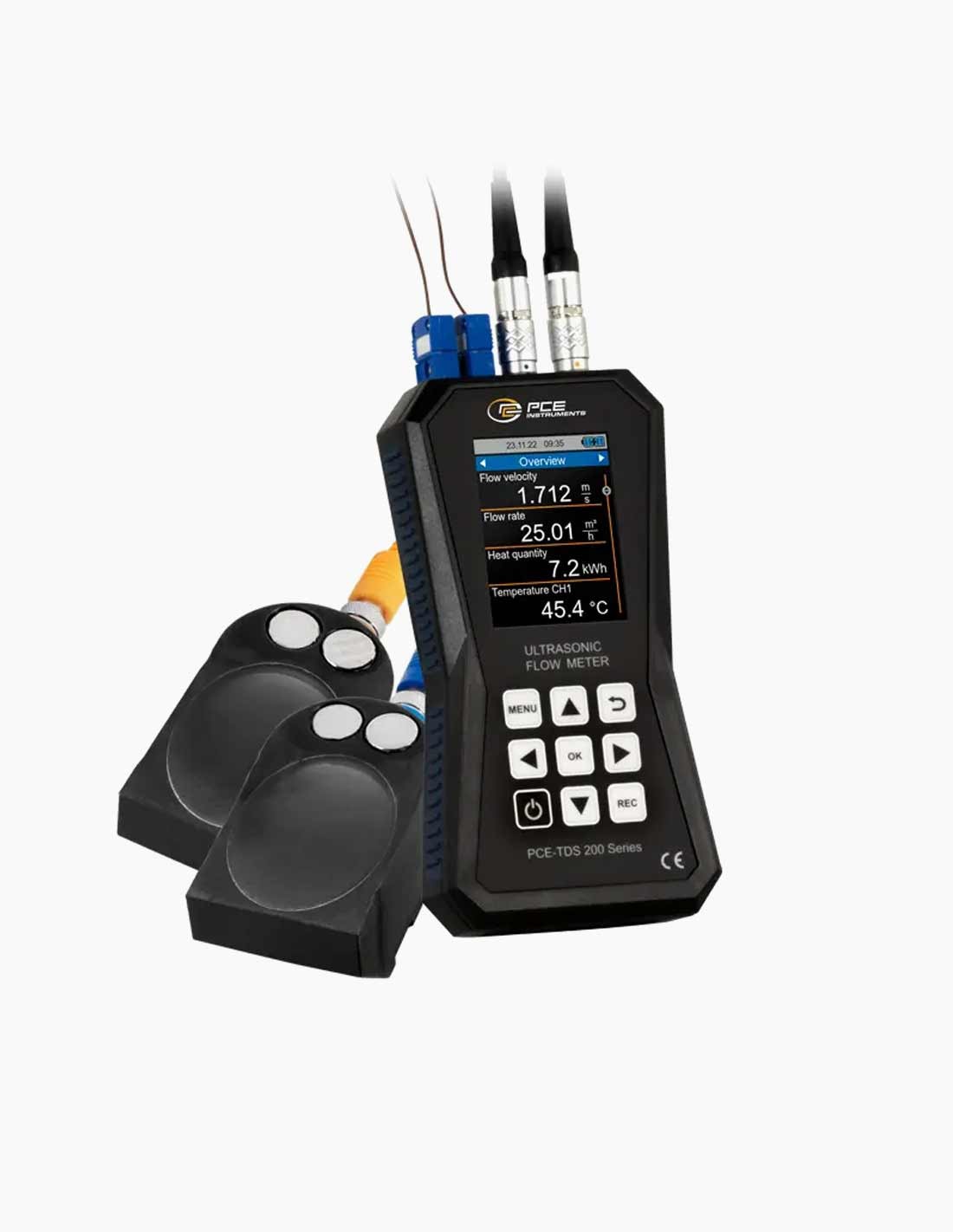

  • Thermal function (model 200+) via two temperature probes on supply/return, suitable for heating system checks and energy assessment.
  • Wide application compatibility by allowing configuration of the fluid and pipe/lining material parameters.
  • Optional certification via ISO or DAkkS calibration certificate for quality and audit requirements.

Applications of the flowmeter for pipes and water circuits

  • Flow verification in large-diameter pipes in industrial and utility settings.
  • Checking and balancing hydraulic installations (including water flowmeter and other compatible liquids).
  • Consumption audits, deviation detection and pump/valve validation.
  • Control and performance validation in heating systems through thermal energy measurement (in the 200+ version).

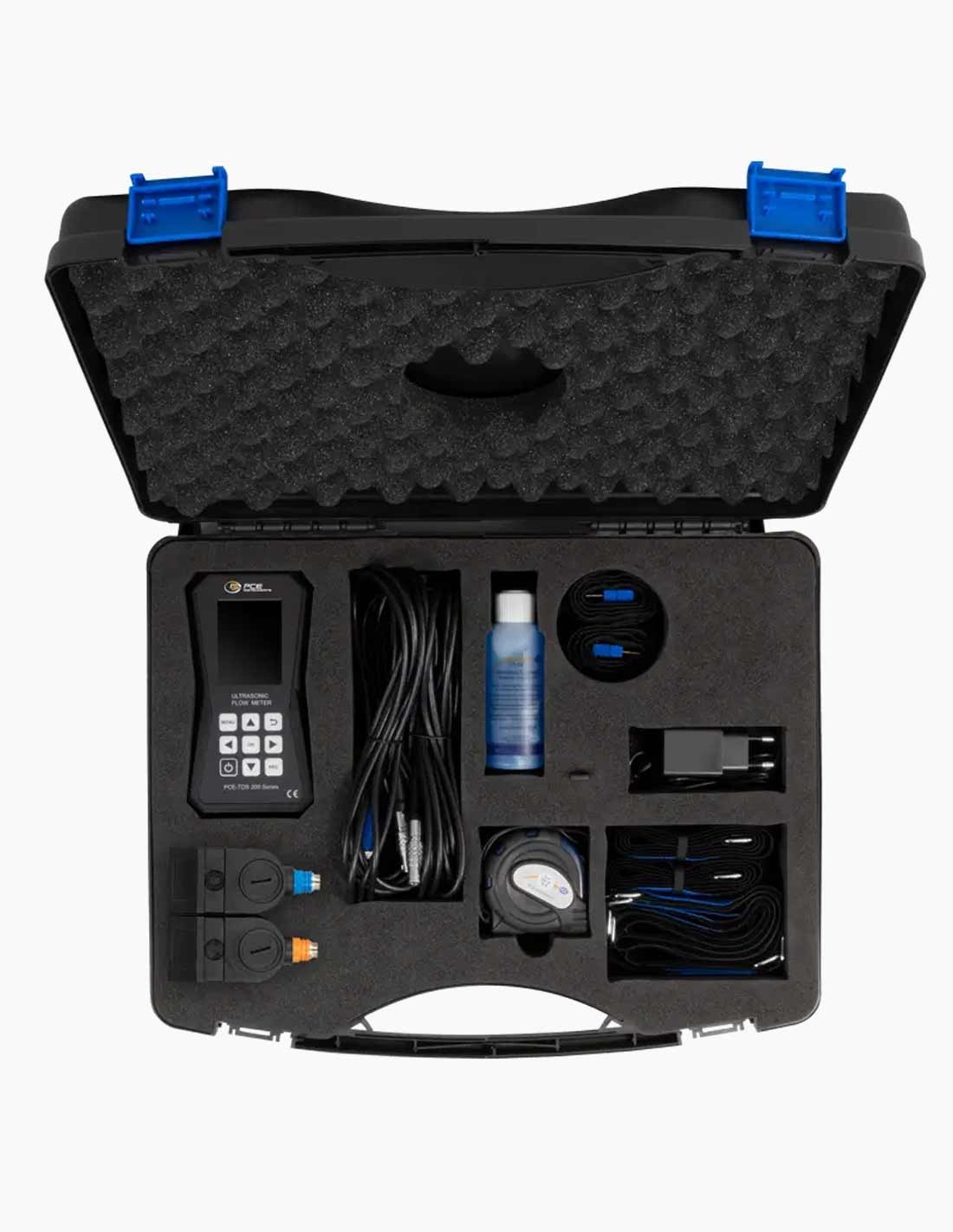

Contents of the TDS 200+ L Flowmeter shipment

  • TDS 200+ L ultrasonic flowmeter
  • TDS 200 L SENSOR flow sensors

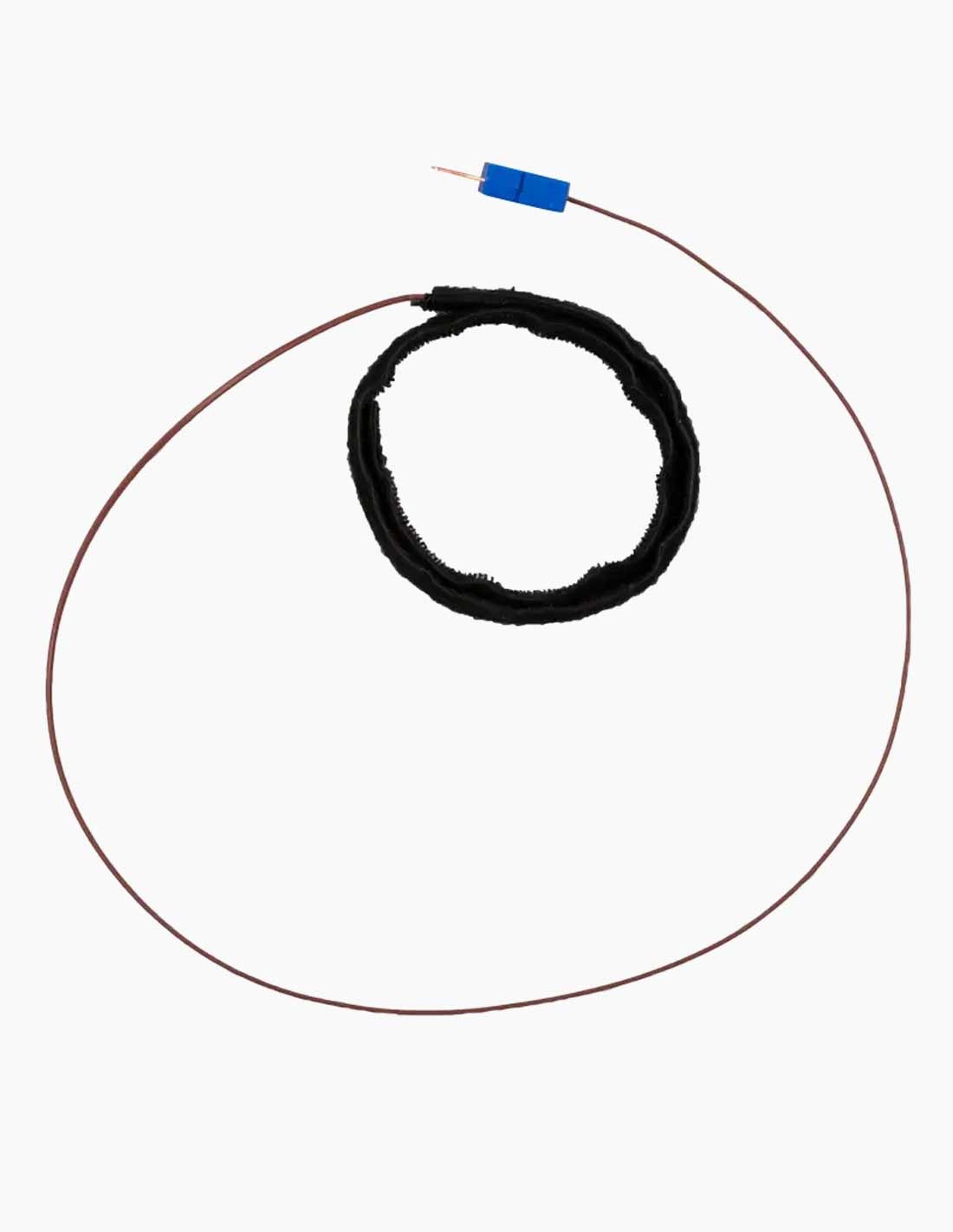

  • 2 TF-RA330 temperature probes
  • 2 extension cables of 5 m
  • 2 velcro straps
  • Power adapter
  • USB-C cable
  • Coupling gel
  • Measuring tape
  • Carrying case
  • Instruction manual

If you need other diameters or installation conditions, consult our page of professional measuring instruments.

Port
USB (for real-time measurement, data transfer and battery charging)
Accumulator
3,7 V / 2500 mAh LiPo battery
Environmental storage conditions
Relative humidity: 10 ... 95 % RH (non-condensing)
Temperature: -20 ... +65 °C
Weight
255 g
Protection type
IP52
Repeatability
±0,5 % of reading
Dimensions (total)
165 x 85 x 32 mm
Battery life
Approx. 10 h
Menu languages
German / Chinese / Spanish / French / Dutch / English / Italian / Japanese / Polish / Portuguese / Russian / Turkish
Power supply USB
USB / 5 V DC / 500 mA
Flow measurement range
±32 m/s
Flow resolution
0,001 m/s
Temperature Scale
°C / °F
Memory Capacity
32 GB (10 million values)
Others
Sensor fluid temperature: -30 ... +160 °C
Sensors for pipes: DN300...6000mm
