Ultrasonic Flow Meter with Sensors 200+S-M-L for Pipes DN15-6000

Non-intrusive process measurement with the Ultrasonic Flow Meter with Sensors 200+S-M-L for Pipes DN15-6000

Ultrasonic Flow Meter with Sensors 200+S-M-L for Pipes DN15-6000 is a portable ultrasonic measurement instrument for hydraulic and industrial installations where flow and consumption balance must be checked without disassembly, line shutdown or significant intrusion into operation. Its scope is focused on diagnosis and verification: install, validate signal, measure and record.

The system uses external transducers and an installation guide with graphical assistance to confirm signal quality and correct positioning. This reduces mounting error, especially in maintenance work, energy audits or validation of water circuits and other compatible liquids.

Key features of the ultrasonic flow meter for pipes

• Non-interruptive measurement: ideal for in-service installations and fast field checks.
• Installation guide with visual verification of signal and sensor spacing to improve repeatability.
• On-board logging and traceability: local storage for measurement campaigns and subsequent analysis.
• Configurable alarm management for threshold control during measurement.

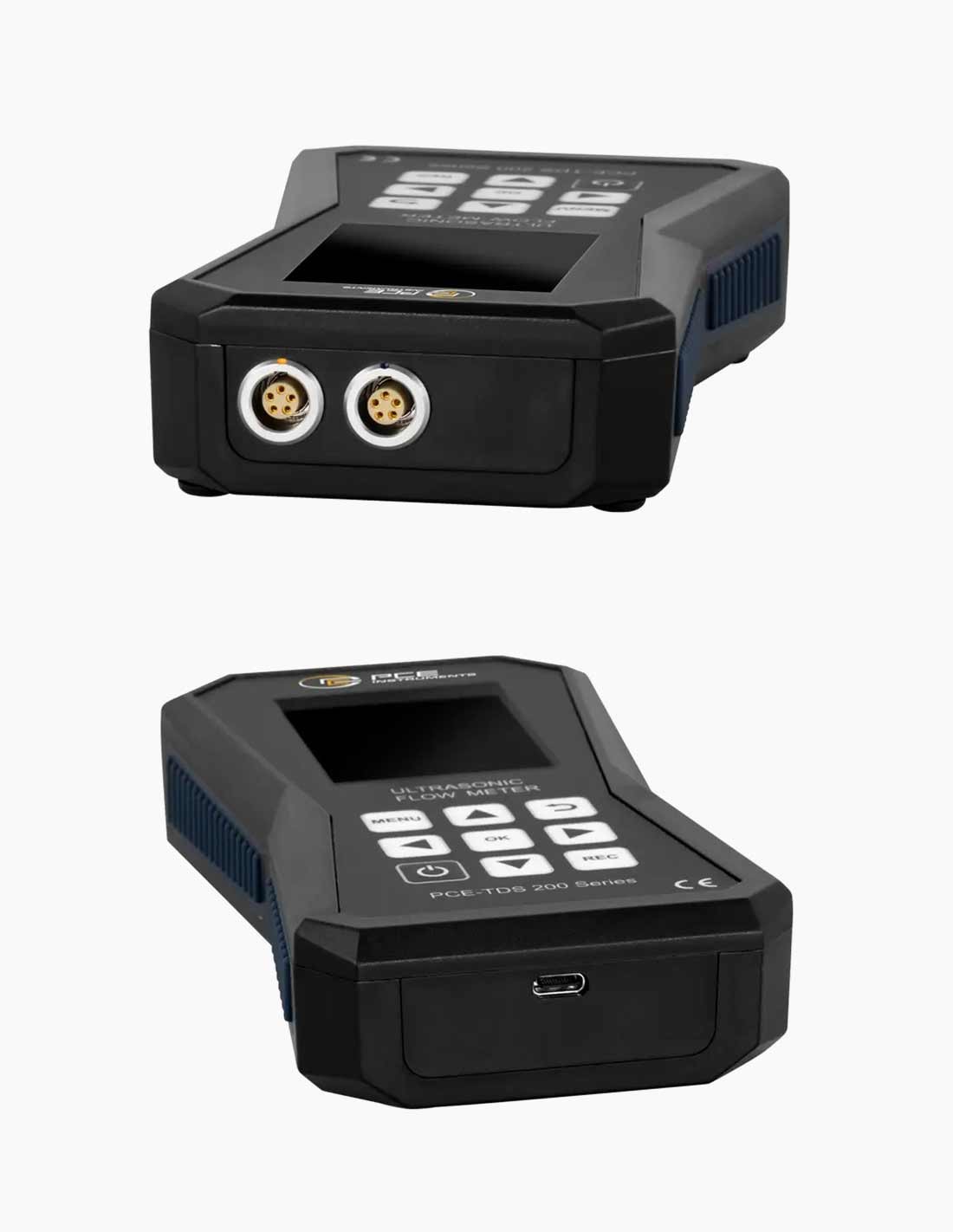

• USB-C connectivity for data transfer, real-time measurement and charging.
• Optional software for graphical/tabular analysis, CSV export and PDF report generation.

Applications of the flow meter for water and other liquids

• Flow verification in distribution networks, process lines and recirculation loops.
• Performance checks on pumps, filters, heat exchangers and cooling circuits.
• Consumption audits and cross-checking of existing meters.
• Incident diagnosis (leaks, imbalances, regime changes) with time-stamped records.
• In the thermal-measurement version (200+ family), support for heating system checks via supply/return temperature readings and associated calculations.

Shipment contents and commissioning

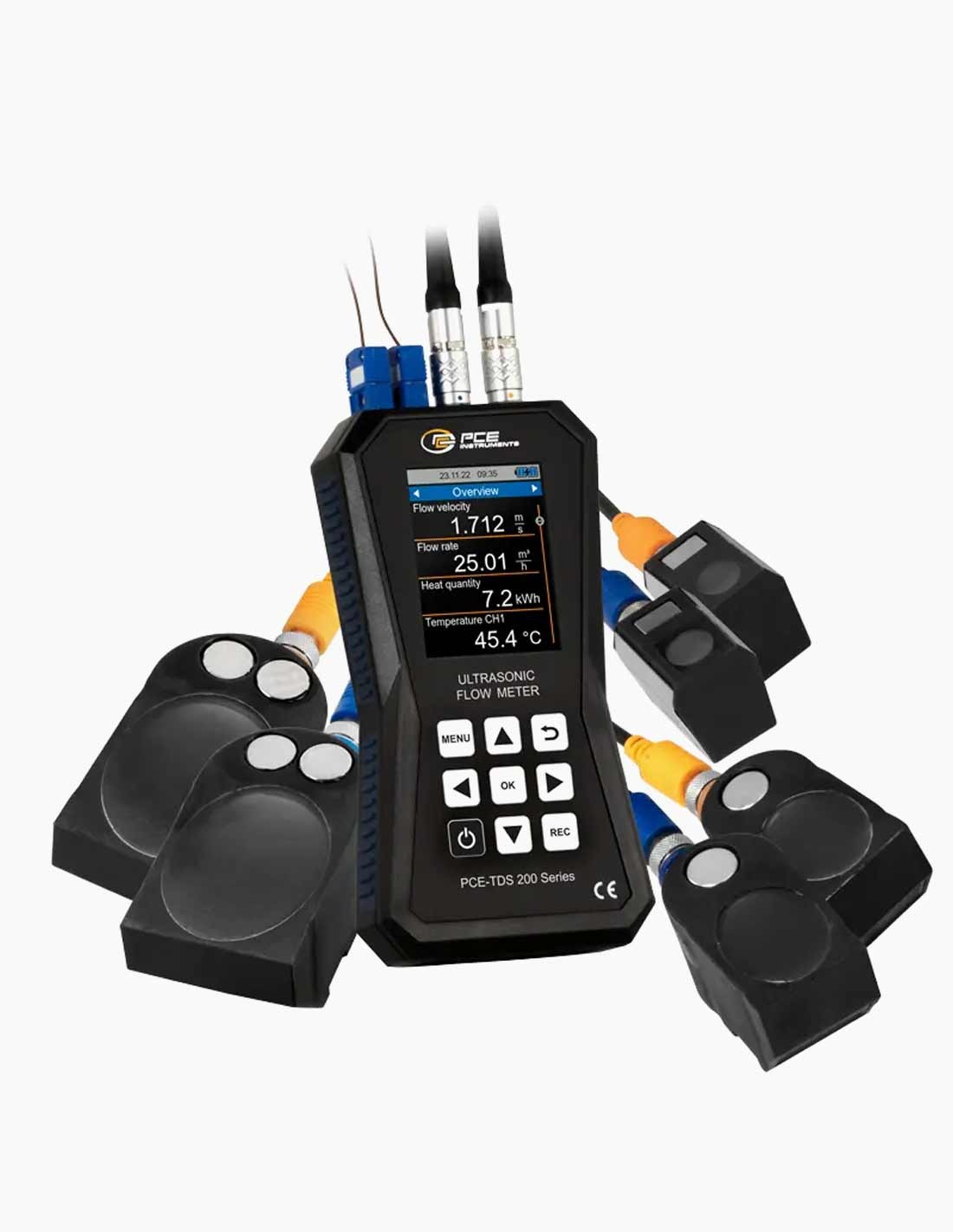

• Portable flow meter with color display for direct field reading.

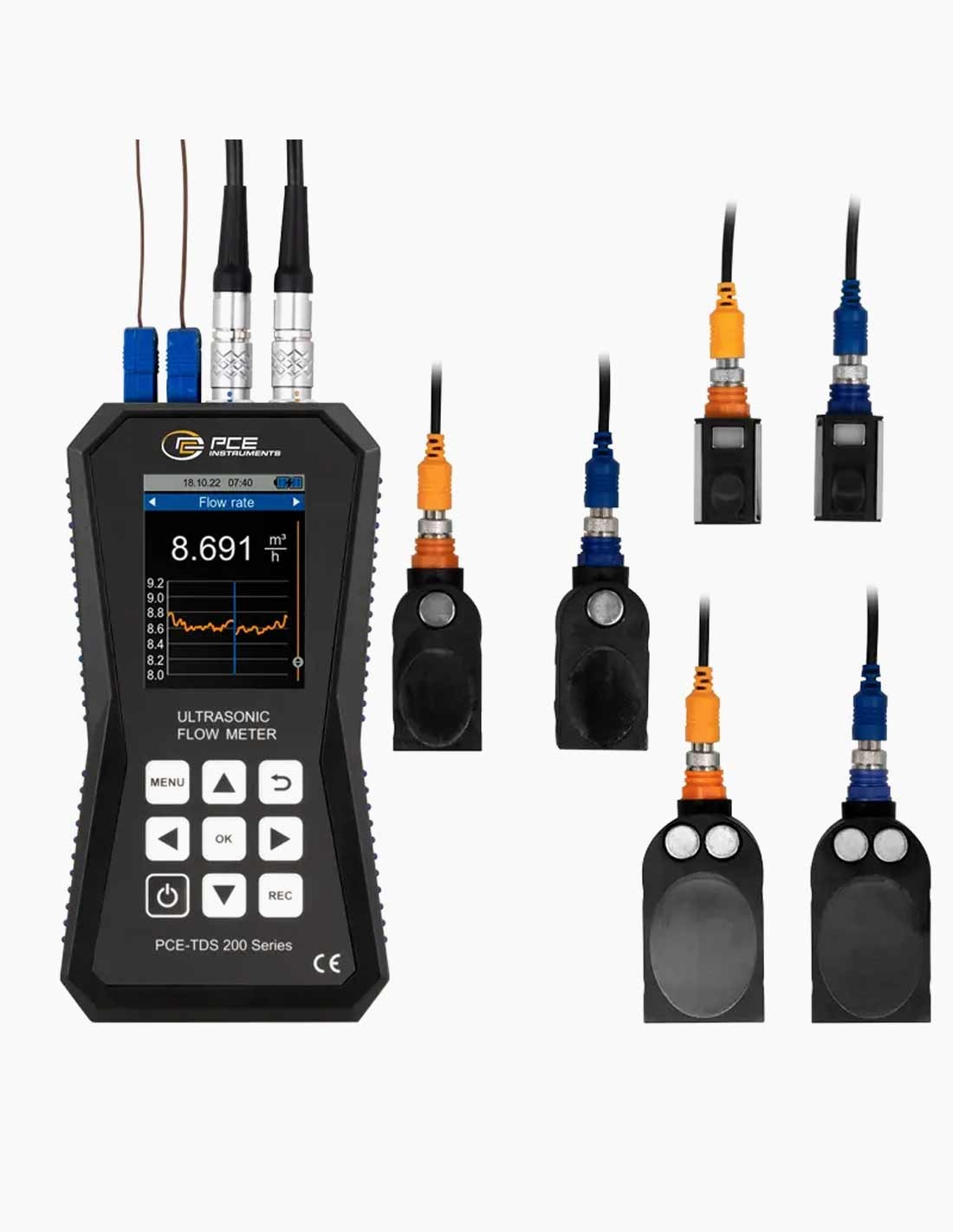

• Sets of S, M and L sensors to cover a wide range of pipe diameters.

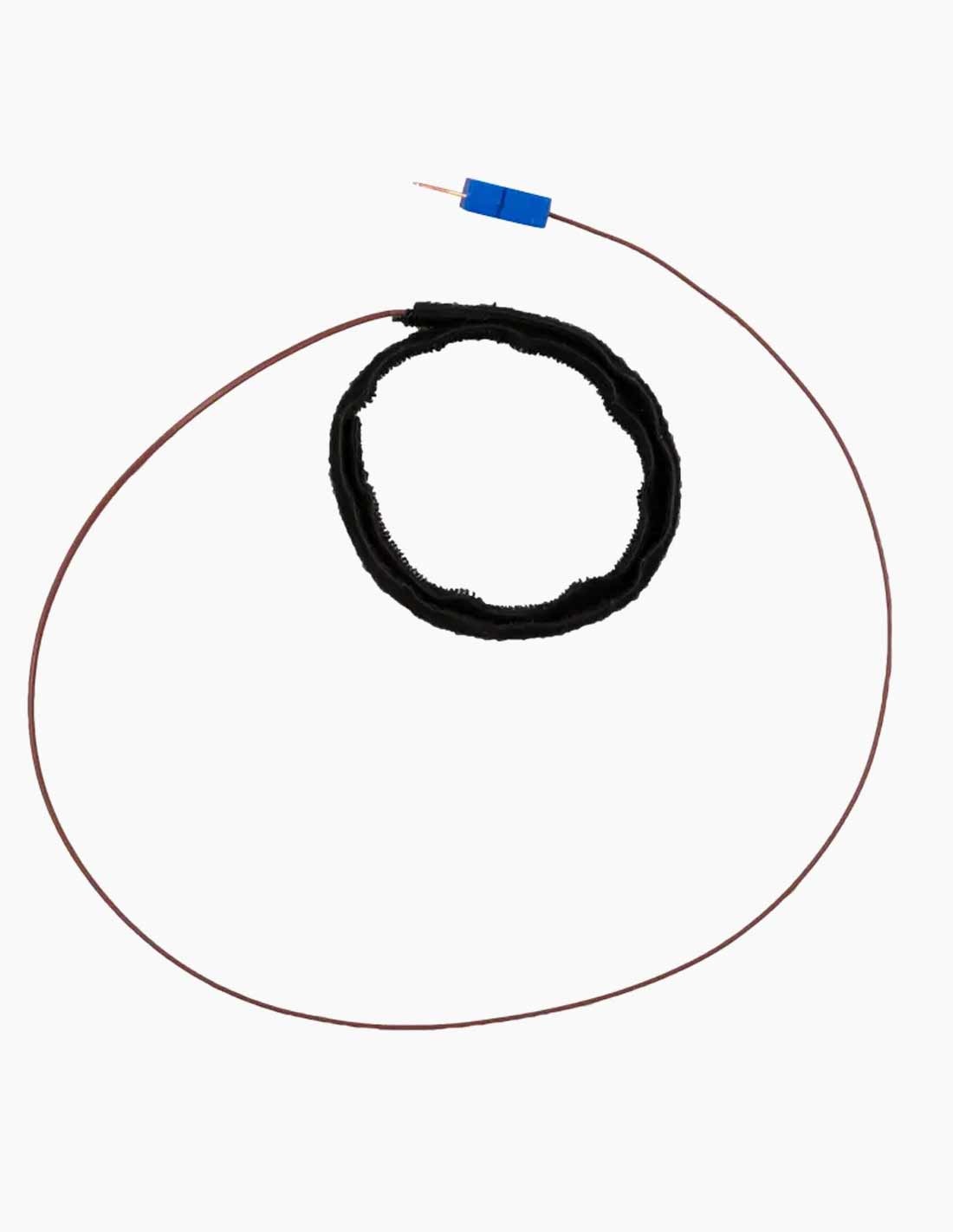

• TF-RA330 temperature probes and accessories included according to the specified configuration.
• Installation accessories (coupling gel, Velcro straps), USB-C cable and mains adapter.

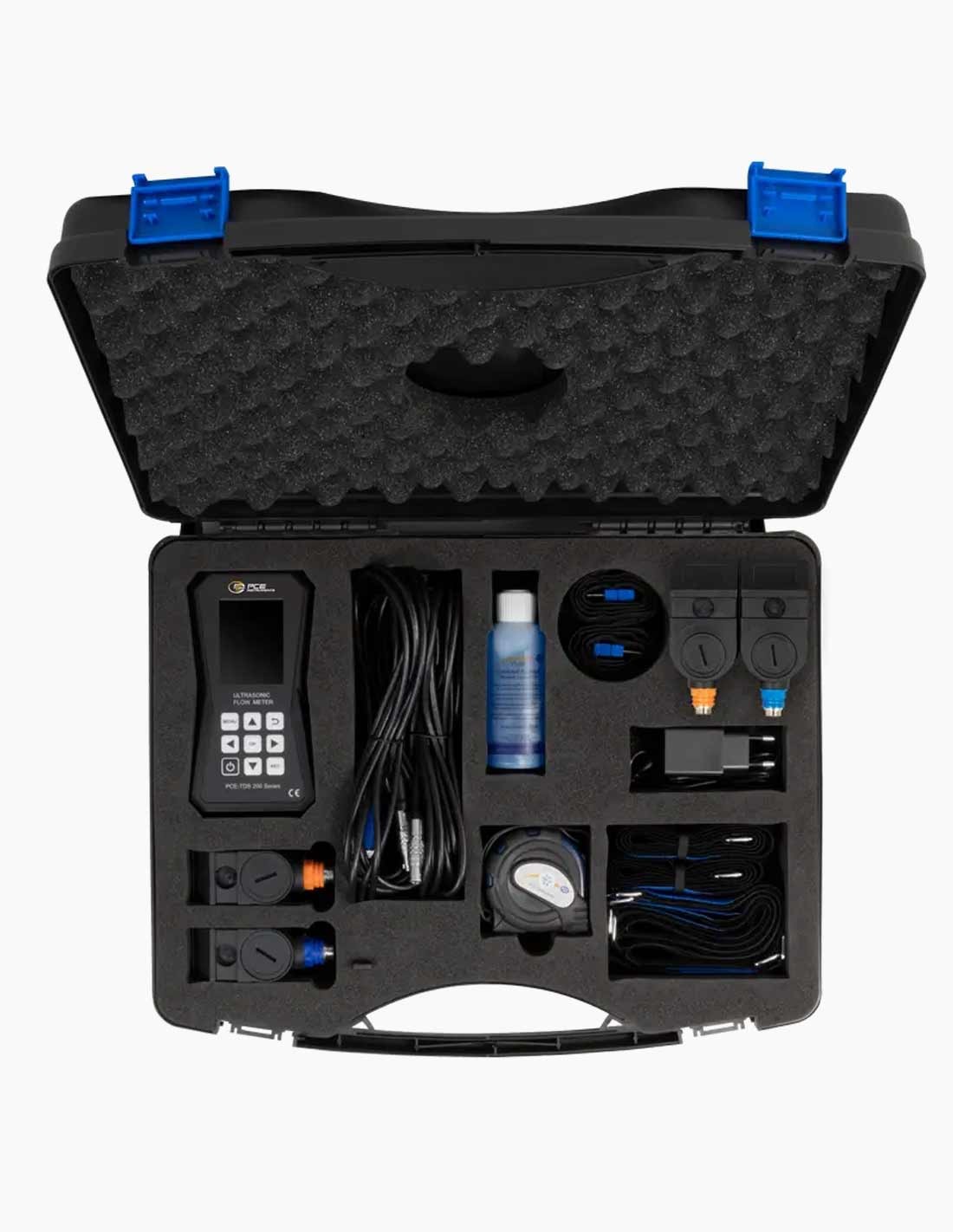

• Carrying case for protection during transport and on-site work.

For environments that require metrological documentation, an ISO or DAkkS calibration certificate can be supplied as an option. If you need to compare configurations or sensors for specific diameters, consult the category of professional measuring instruments.
