Ultrasonic flowmeter for pipes DN15-100 with 200+ SR sensor

Flow measurement without stopping the installation with the TDS 200+ Ultrasonic Flowmeter with SR Sensor DN15-100

Measurement solution for maintenance, verification and flow diagnostics

The TDS 200+ Ultrasonic Flowmeter with SR Sensor DN15-100 is designed for scenarios where obtaining reliable flow data without service interruptions or permanent pipe modifications is critical. By using external sensors, it is a practical tool to check pump performance, hydraulic balancing, consumption verification and process control in closed circuits or operational lines.

To minimize common errors in clamp-on flowmeters, the unit includes an installation help menu with a graphical indication of signal quality and correct sensor spacing/positioning. After entering pipe and fluid parameters, the instrument displays process variables on-screen and enables programmable logging for measurement campaigns.

Key features of the ultrasonic flowmeter for pipes

• Installation assistant with graphical indication to monitor signal and mounting, improving repeatability in the field.
• Internal data logging for measurement campaigns: programmable start/stop and adjustable logging interval according to site requirements.
• High-capacity internal memory for traceability and audits, with download and subsequent viewing.

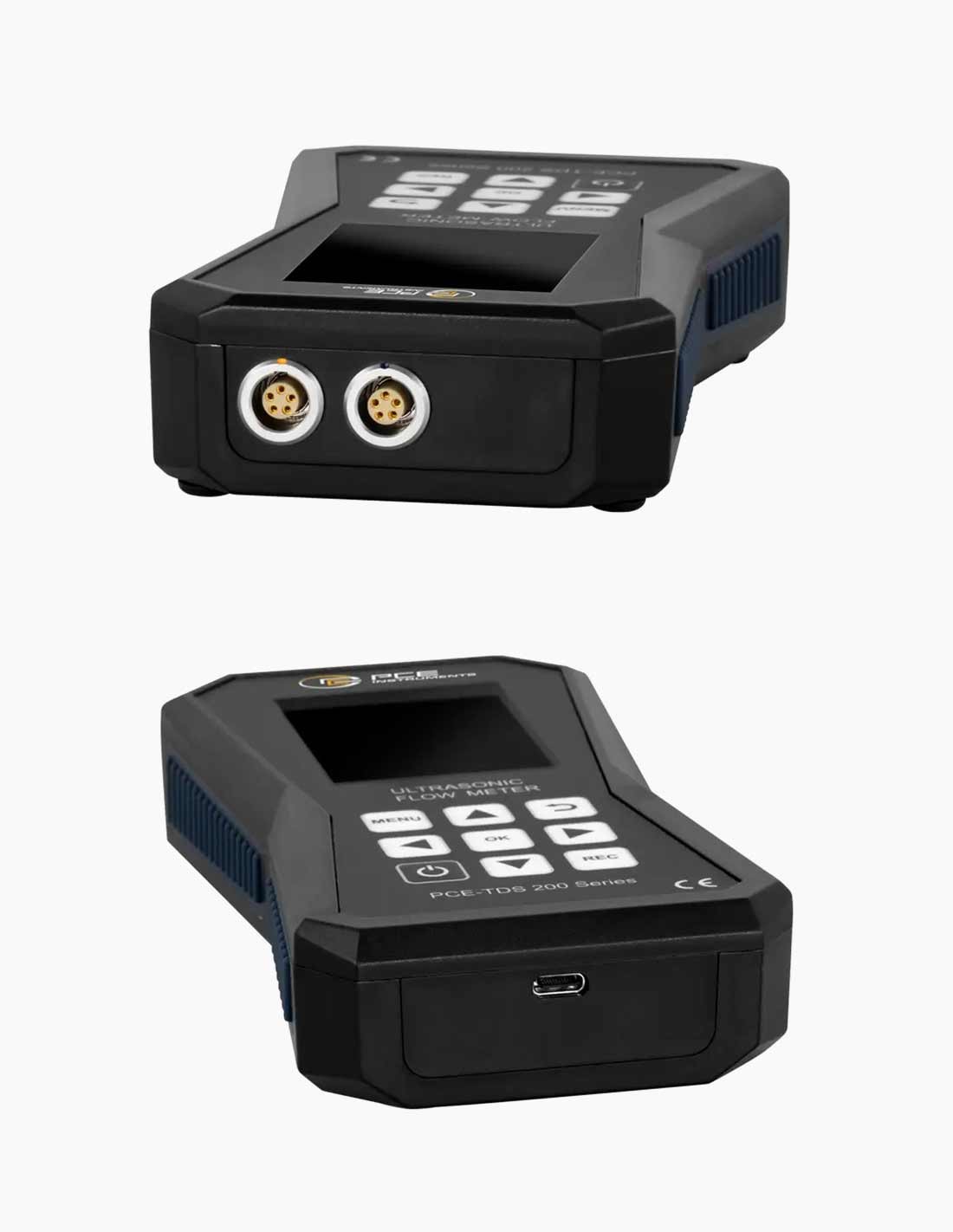

• USB-C interface for data transfer, configuration and real-time monitoring.
• Alarm management with configurable thresholds for operational control.
• Optional software for analysis with charts/tables, CSV export and PDF report generation.

Applications of the flowmeter for water and other liquids

• Quick flow checks on pipes without mechanical intervention.
• Verification of hydraulic systems in preventive and corrective maintenance.
• Flow control in auxiliary services: water, cooling circuits and other compatible fluids.

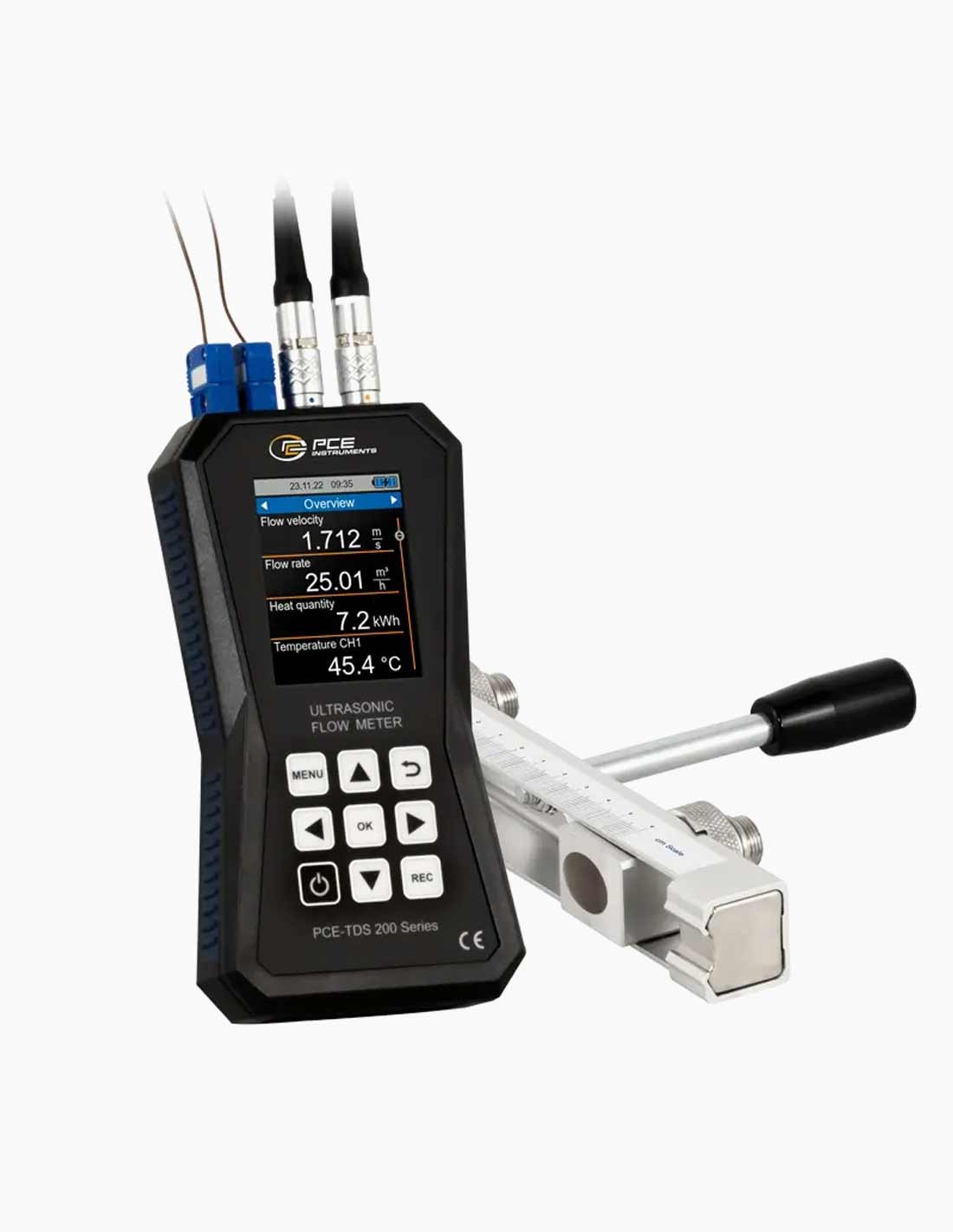

• Thermal evaluation in heating systems: the “200+” model works with temperature probes to estimate thermal energy/power from flow and temperature differential.

Shipping contents and calibration options

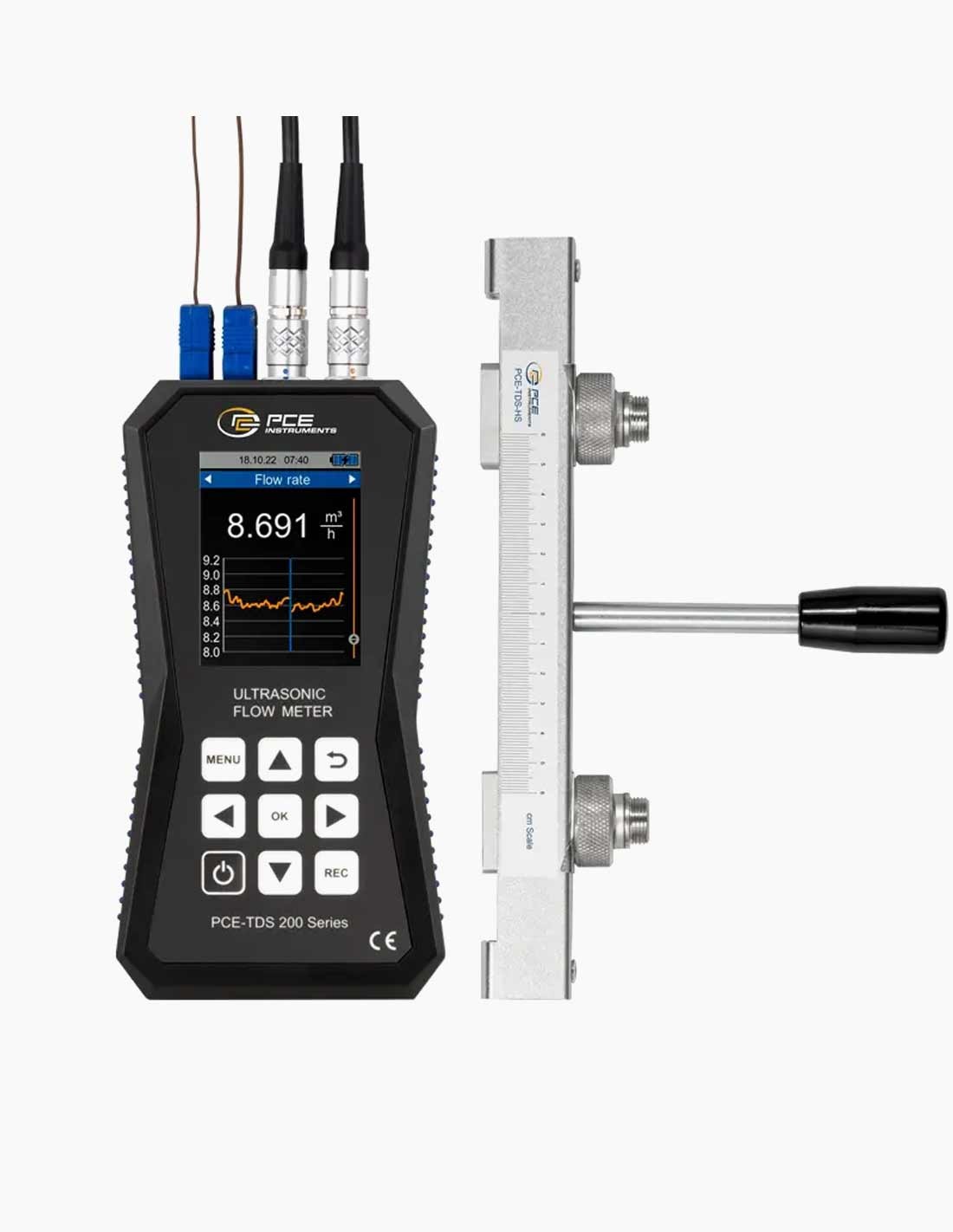

• Portable ultrasonic flowmeter with color LCD display.

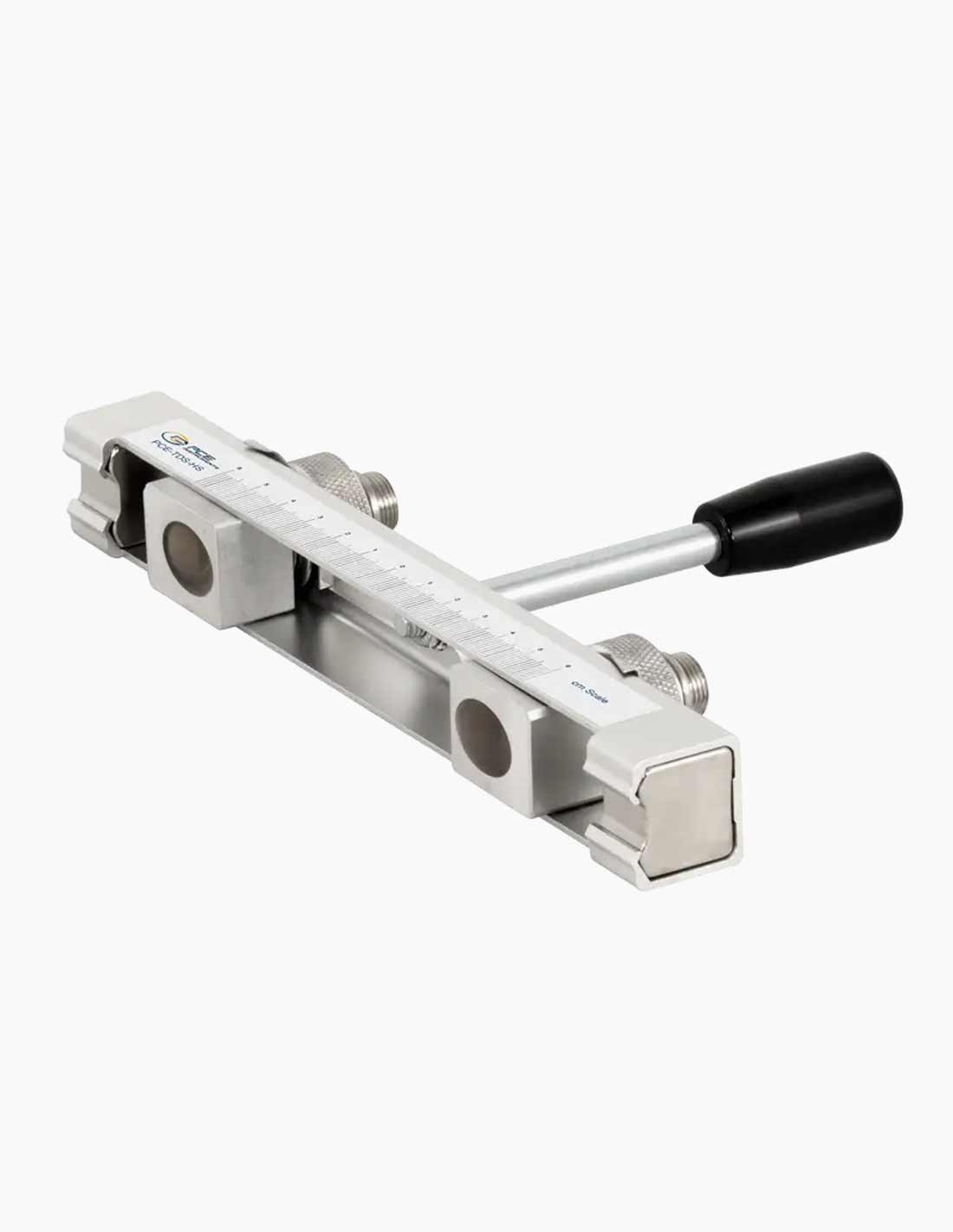

• Set of SR sensors for rail mounting (according to indicated configuration).

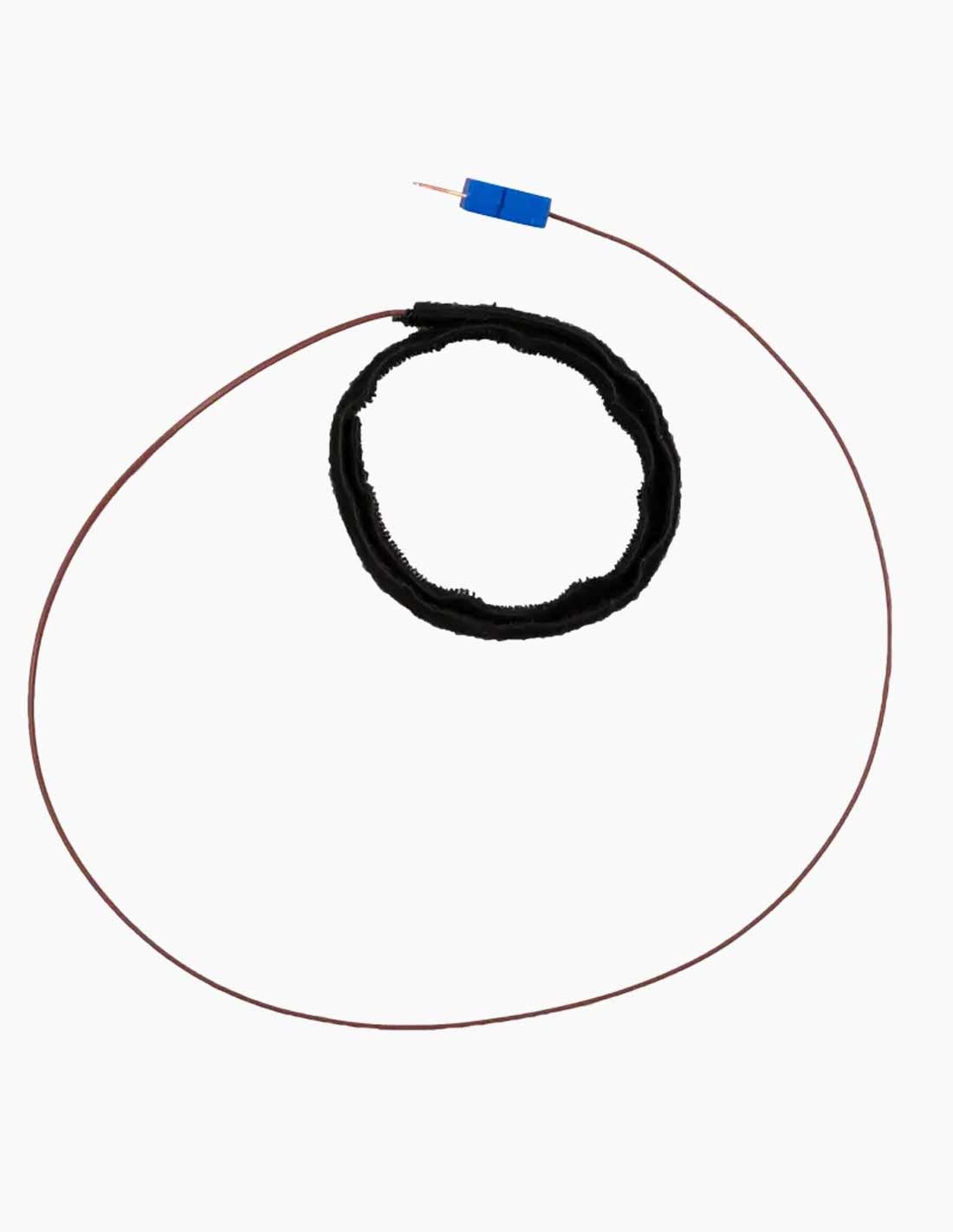

• Temperature probes included for the thermal functions of the 200+ model.

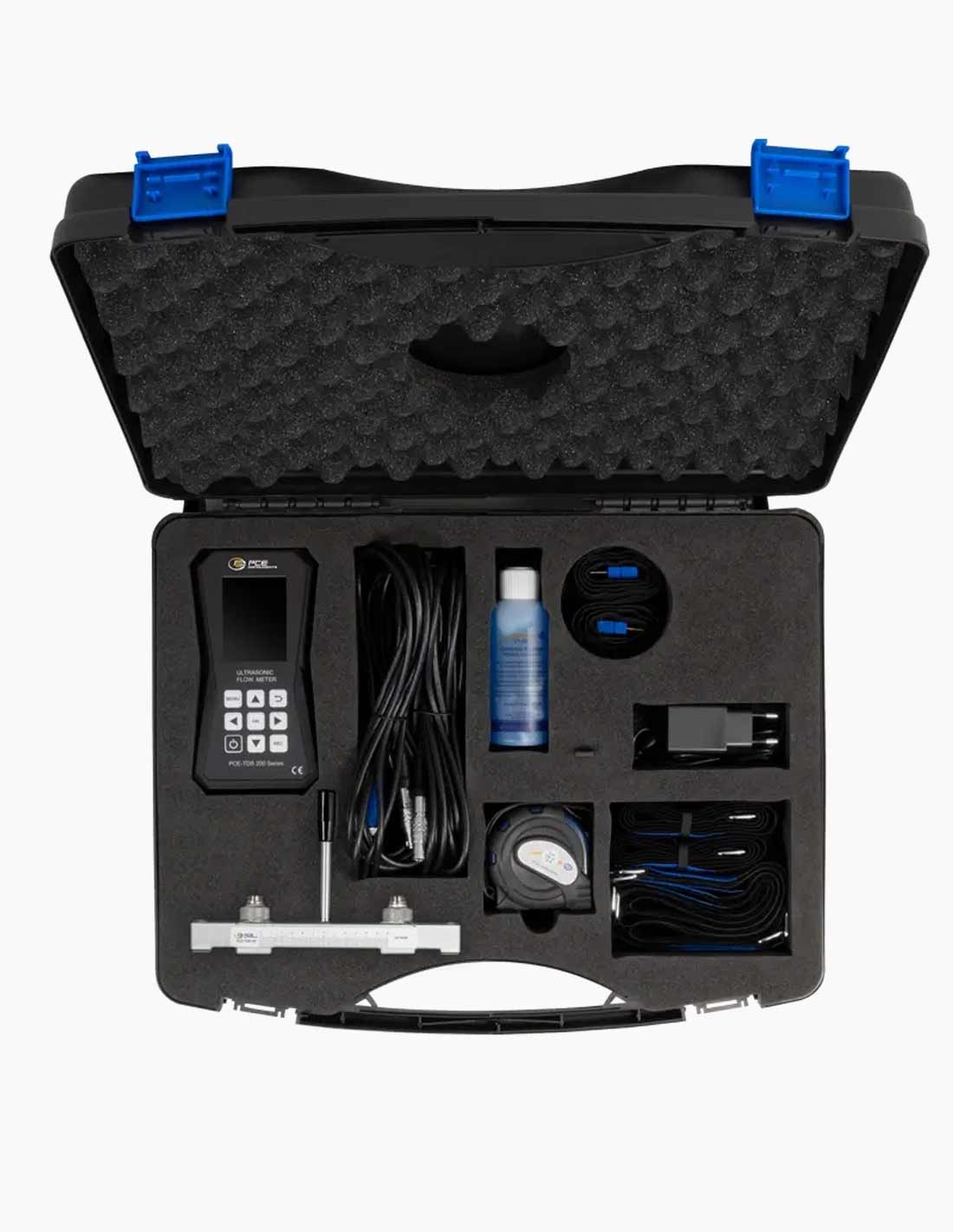

• Installation and field transport accessories (coupling gel, fixing elements and carrying case).
• Optional: ISO or DAkkS calibration certificate for quality requirements and metrological traceability.

If your installation requires other diameter ranges or a different probe configuration, check the available variants at professional measuring instruments
