Ultrasonic flowmeter for pipes DN50-6000 with M-L sensors

F0405453
€2,579.90
€3,121.68 Incl. VAT
€2,579.90 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

Ultrasonic flowmeter for pipes DN50-6000 with M-L sensors designed to measure flow velocity, flow rate and volume without interrupting the process or cutting the line. This device allows instrumenting existing installations with a portable solution oriented to diagnostics, verification and maintenance.

The pipe flowmeter includes a graphical installation assistant that helps correctly position the probes and verify signal quality, reducing mounting errors. It also logs data to internal 32 GB memory (up to 10 million values) and supports download and analysis via USB-C interface, with optional software for reports and CSV export.

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments
Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



Non-intrusive, traceable measurement with the DN50-6000 Ultrasonic Flowmeter

When it is necessary to check consumption, balance circuits or validate the performance of a hydraulic system, cutting the pipe or stopping the installation is often not an option. This instrument is aimed at fieldwork and maintenance where the priority is to obtain a reliable, repeatable and documentable measurement directly on the pipe, with guided installation support to minimize uncertainty from mounting.

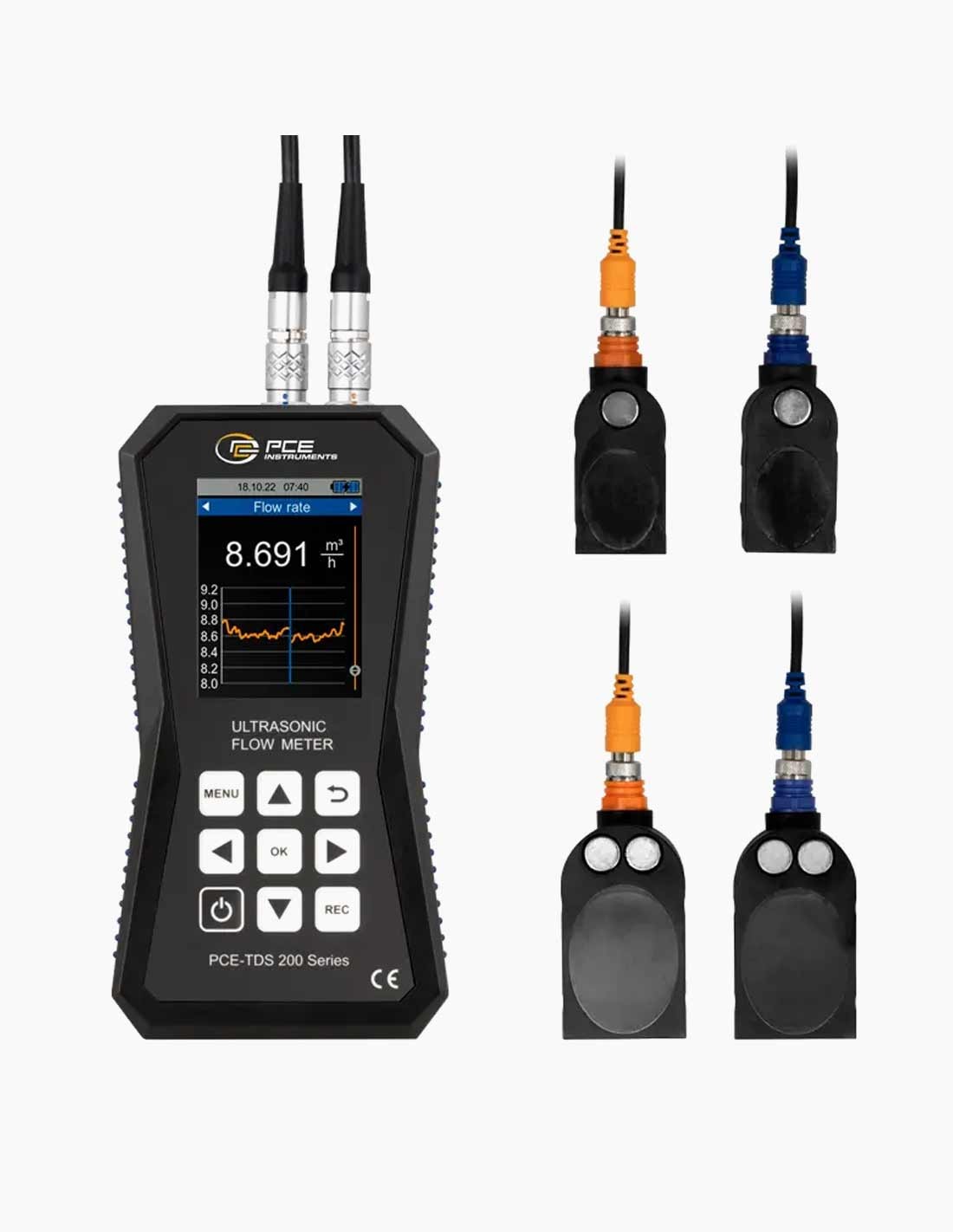

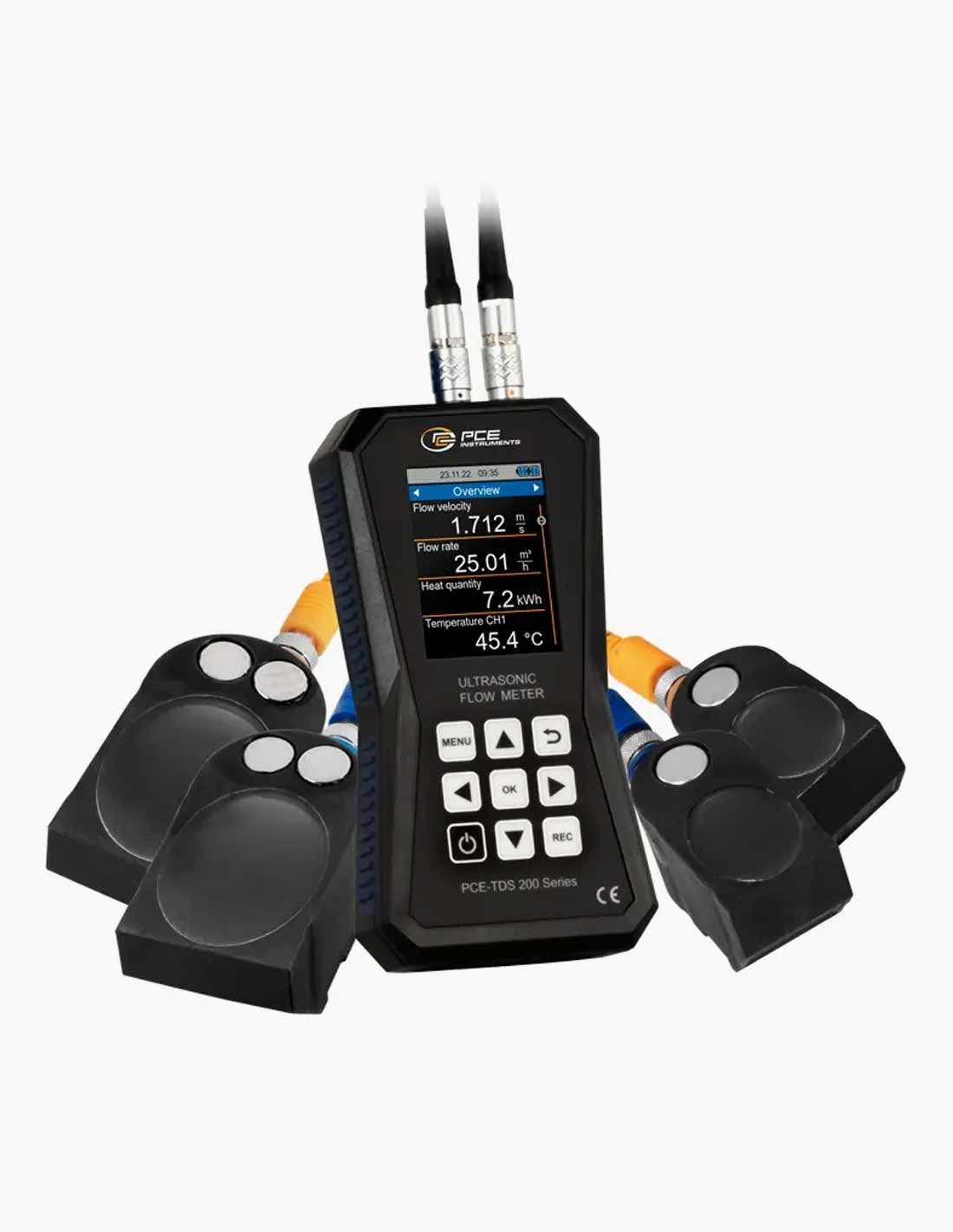

The DN50-6000 flowmeter works with external sensors and a help menu that graphically displays signal quality and the correct spacing/positioning of the probes. Once the fluid and pipe parameters are configured, the unit displays process variables on screen and allows configuring alarms for operational control during verifications and tests.

Applications of the ultrasonic flowmeter in maintenance, verification and diagnostics

  • Flow verification in water networks and other compatible liquids without modifying the installation.
  • Balancing and checking hydraulic circuits in industry, services and buildings.
  • Internal audits and trend logging to compare conditions before/after interventions.
  • Support for commissioning and troubleshooting (detection of flow deviations, regime changes, etc.).

Highlighted features of the pipe flowmeter with data logging and alarms

  • Built-in data logging with large capacity for prolonged measurement campaigns.

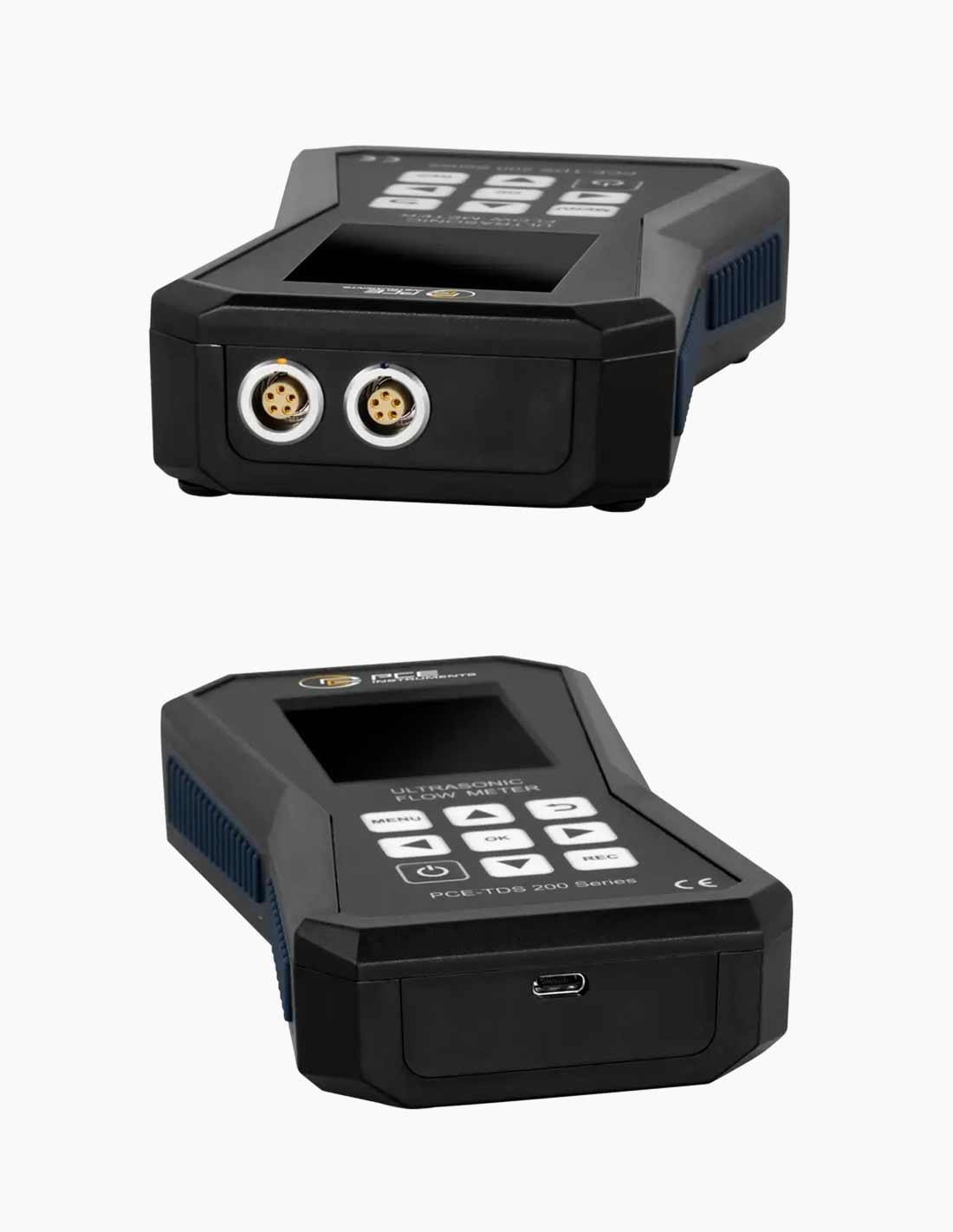

  • USB-C interface for data transfer, real-time measurement and charging.
  • Optional software for reading, graphical/table analysis, export to CSV and PDF report generation.
  • Installation assistant with graphical indication of signal and sensor positioning.
  • Alarm management configurable for control thresholds during tests.
  • Option for ISO or DAkkS calibration certificate for quality and traceability requirements.

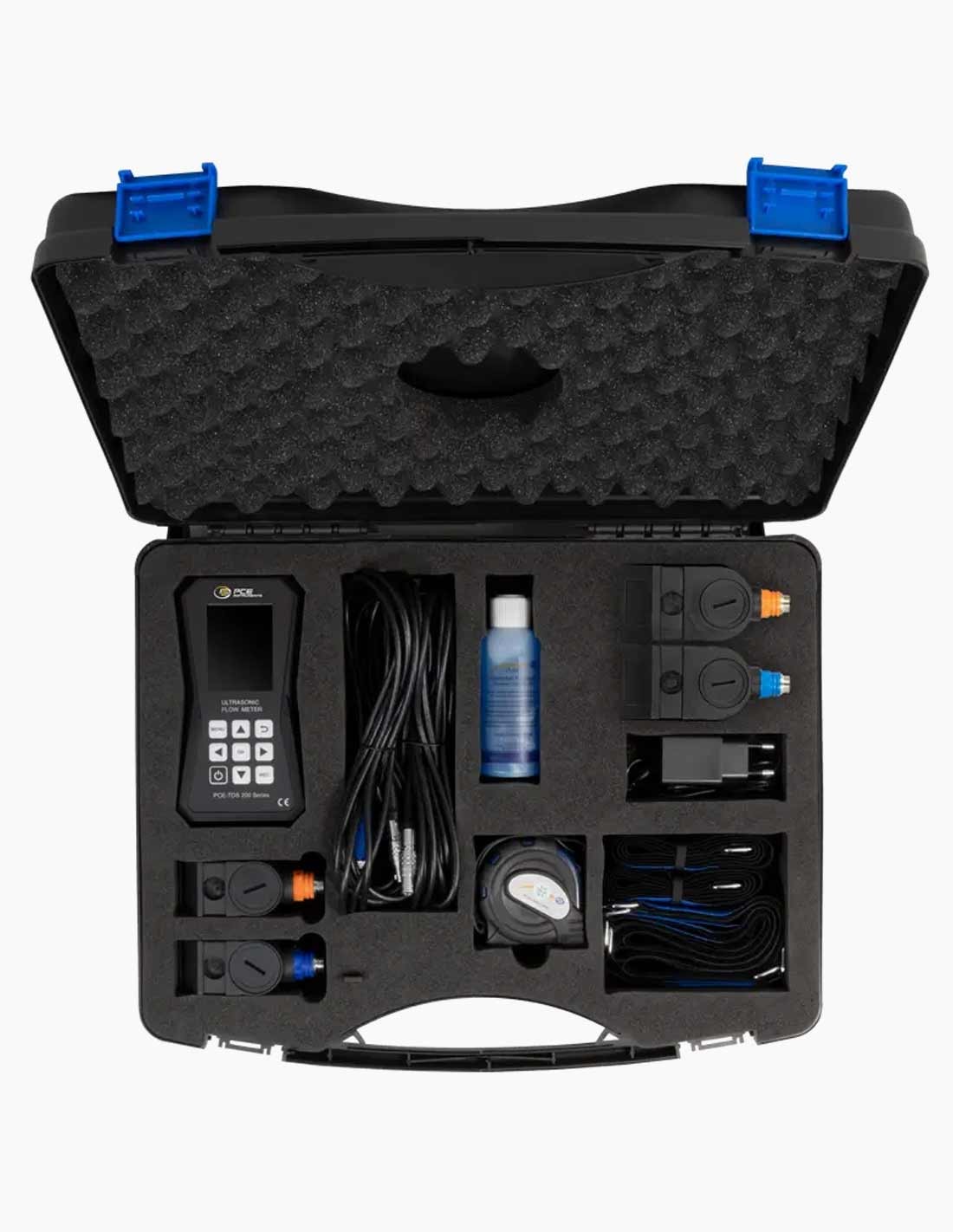

Contents of shipment and commissioning

  • Ultrasonic flowmeter (main unit).

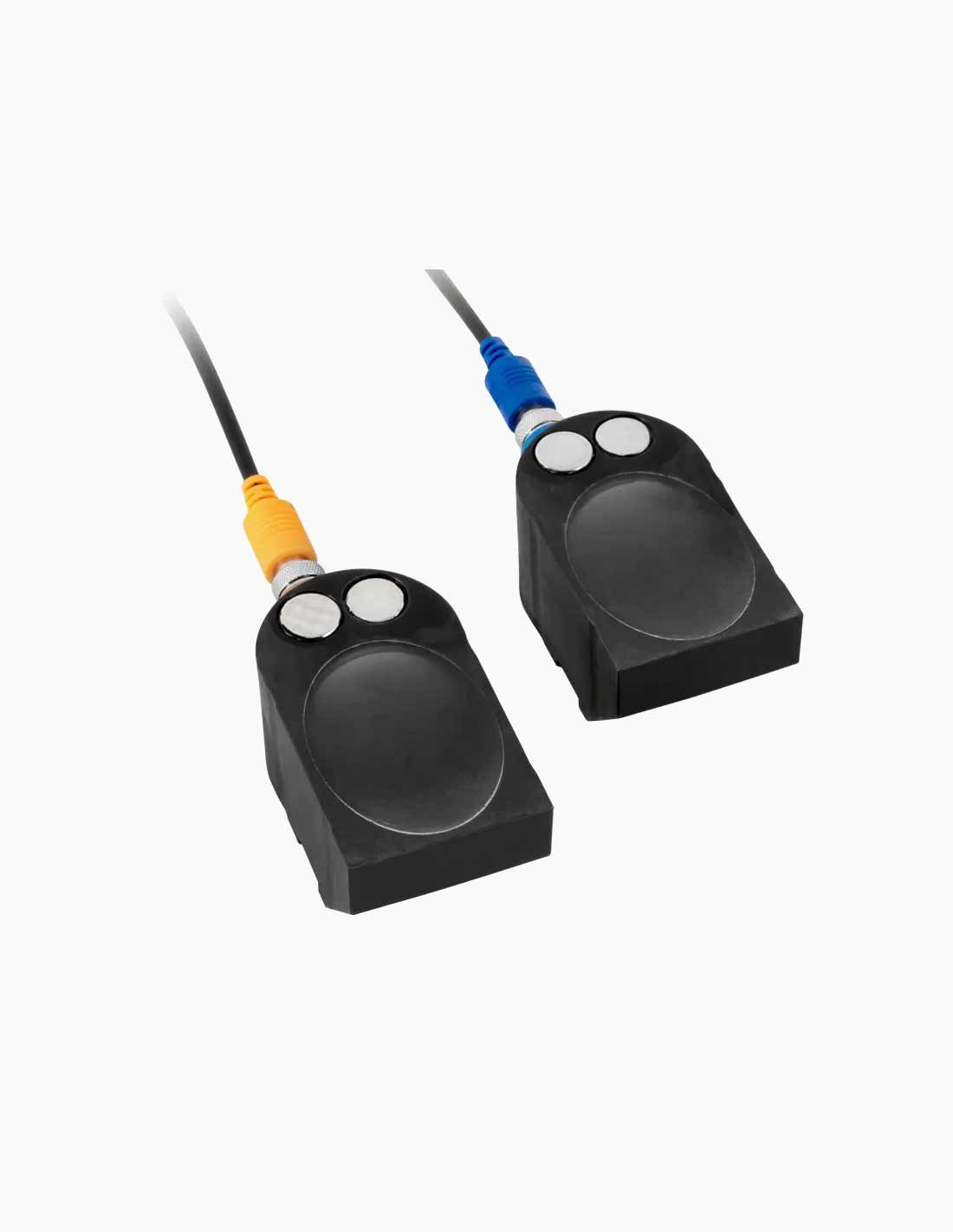

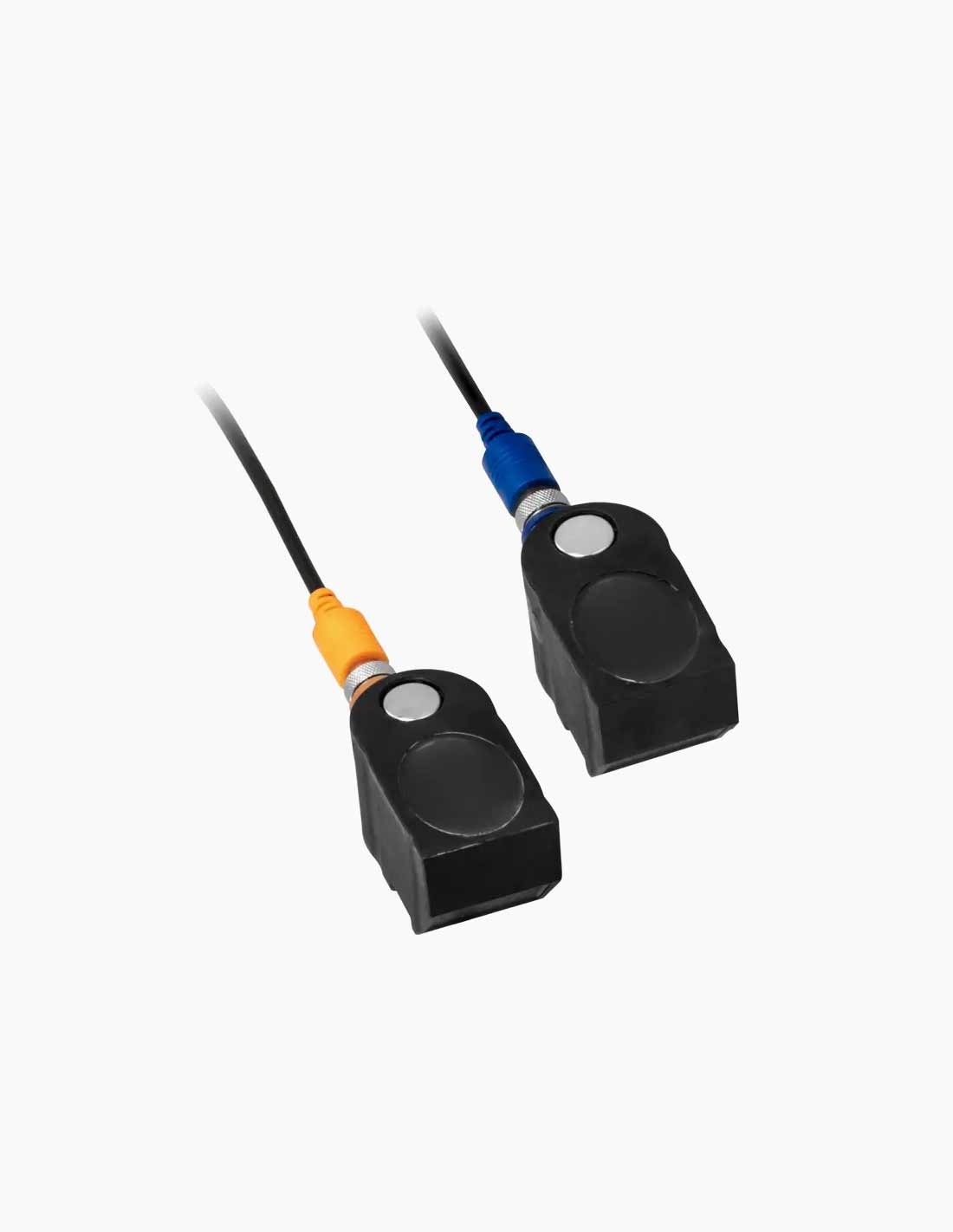

  • Set of flow sensors (according to configuration): sensors for wide pipe ranges.
  • Extensions, Velcro straps, coupling gel and tape measure for installation.
  • USB-C cable, power adapter and transport case.
  • User manual.

Visit our professional measurement instruments page to find more flowmeters with different diameter ranges.

Display
2,8" LCD
Port
USB (data transfer and battery charging)
Power supply
LiPo battery, 3,7 V / 2500 mAh
Weight
255 g
Air temperature measuring range
-30 ... +160 °C
Protection type
IP52
Repeatability
±0,5 % of reading
Dimensions (total)
165 x 85 x 32 mm
Battery life
Approx. 10 h
Menu languages
German / Chinese / Spanish / French / Dutch / English / Italian / Japanese / Polish / Portuguese / Russian / Turkish
Power supply USB
USB / 5 V DC / 500 mA
Flow measurement range
±32 m/s
Flow resolution
0,001 m/s
Memory Capacity
32 GB (10 million values)
