Ultrasonic Flowmeter for Pipes DN50-700 with 200+M-R Sensors

Non-intrusive and traceable measurement with the Ultrasonic Flowmeter for Pipes DN50-700 with 200+M-R Sensors

Ultrasonic Flowmeter for Pipes DN50-700 with 200+M-R Sensors is an ultrasonic measurement device to verify flow in pipes without modifying the installation. When the objective is to monitor consumption, validate performance or diagnose process deviations without stopping production, a clamp-on solution reduces risks, intervention time and the need for purging.

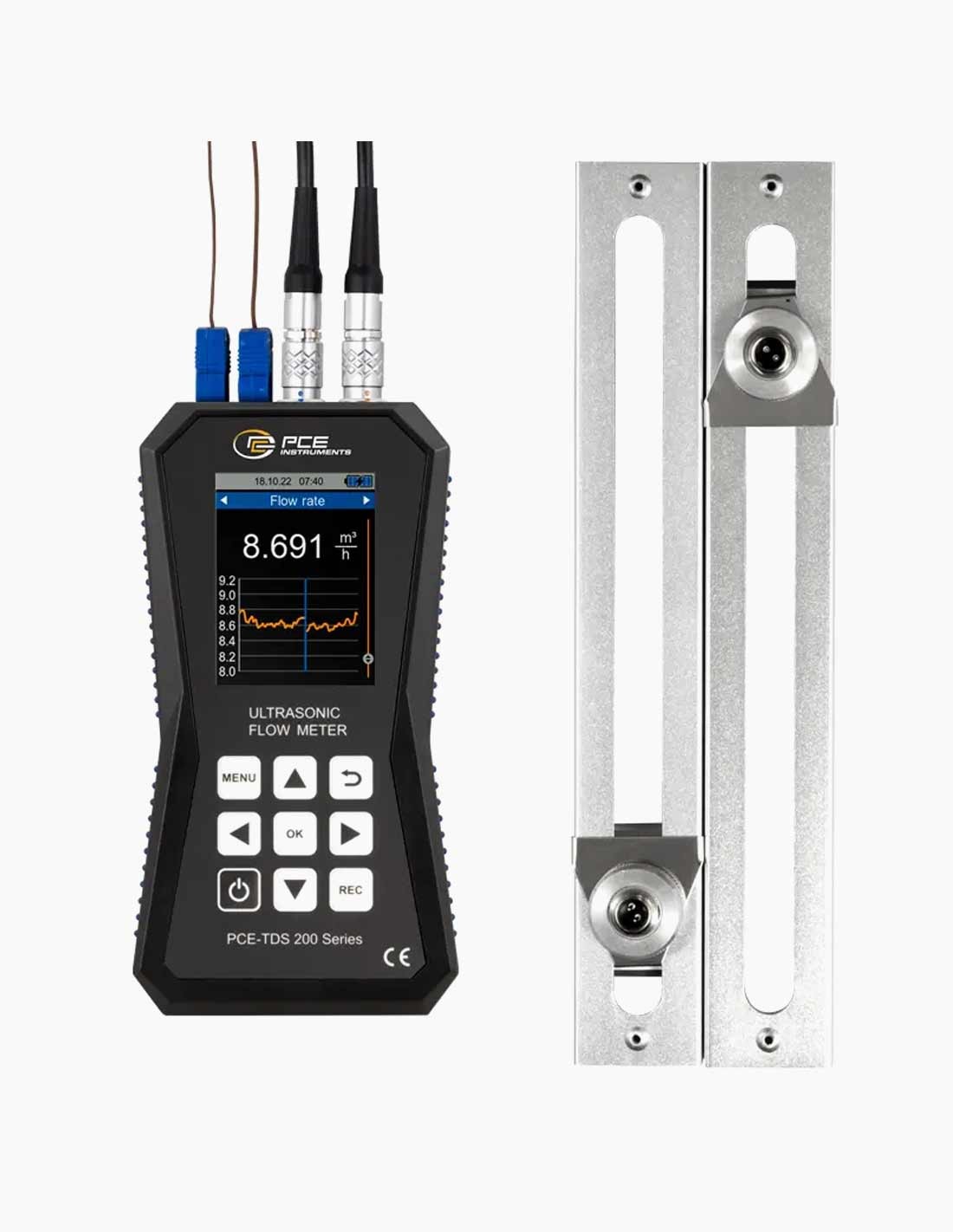

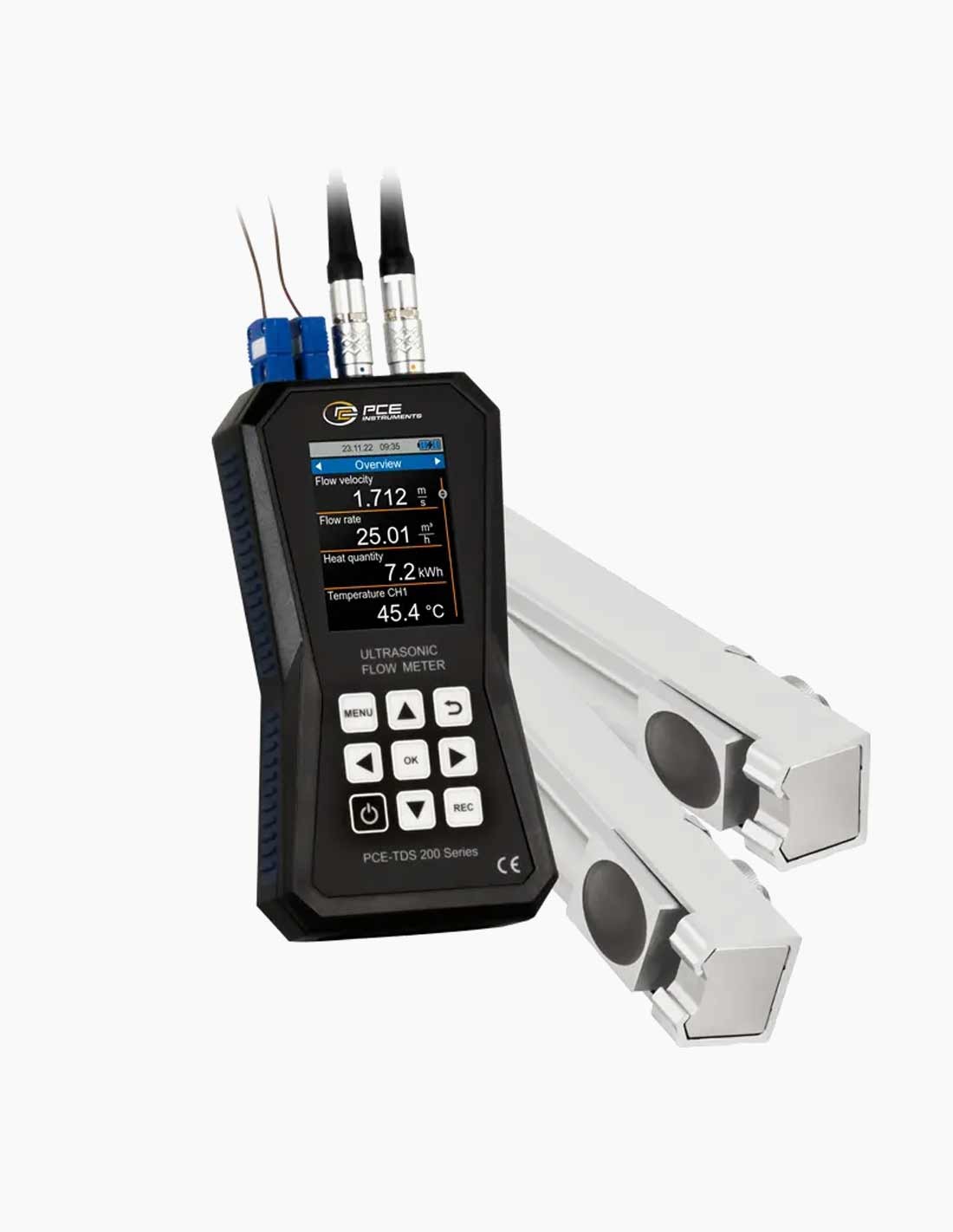

Its assisted installation logic helps configure the transducer mounting and verify signal quality, minimizing typical errors from misalignment or incorrect spacing between sensors. In operation, it allows displaying relevant measurement parameters on-screen and recording time series in internal memory for audits, predictive maintenance or later analysis.

Key features of the ultrasonic flowmeter for pipes

• Measurement without process interruption: external installation on the pipe, no line shutdown.
• Installation aid: positioning assistance and graphical verification of signal quality.
• Integrated data logging: high-capacity internal storage for extended measurement campaigns.
• Export and analysis: data readout and export for reporting and processing in software.
• Flexible use: selection of medium and parameters to adapt the measurement to different flow applications.

Applications for water flow and flow verification

• Flow verification in distribution networks and recirculation circuits.
• Performance checking of pumps and heat exchangers.
• Consumption audits and hydraulic balancing in industrial installations.
• Incident diagnosis (flow variations, loss of efficiency, changes in operation).

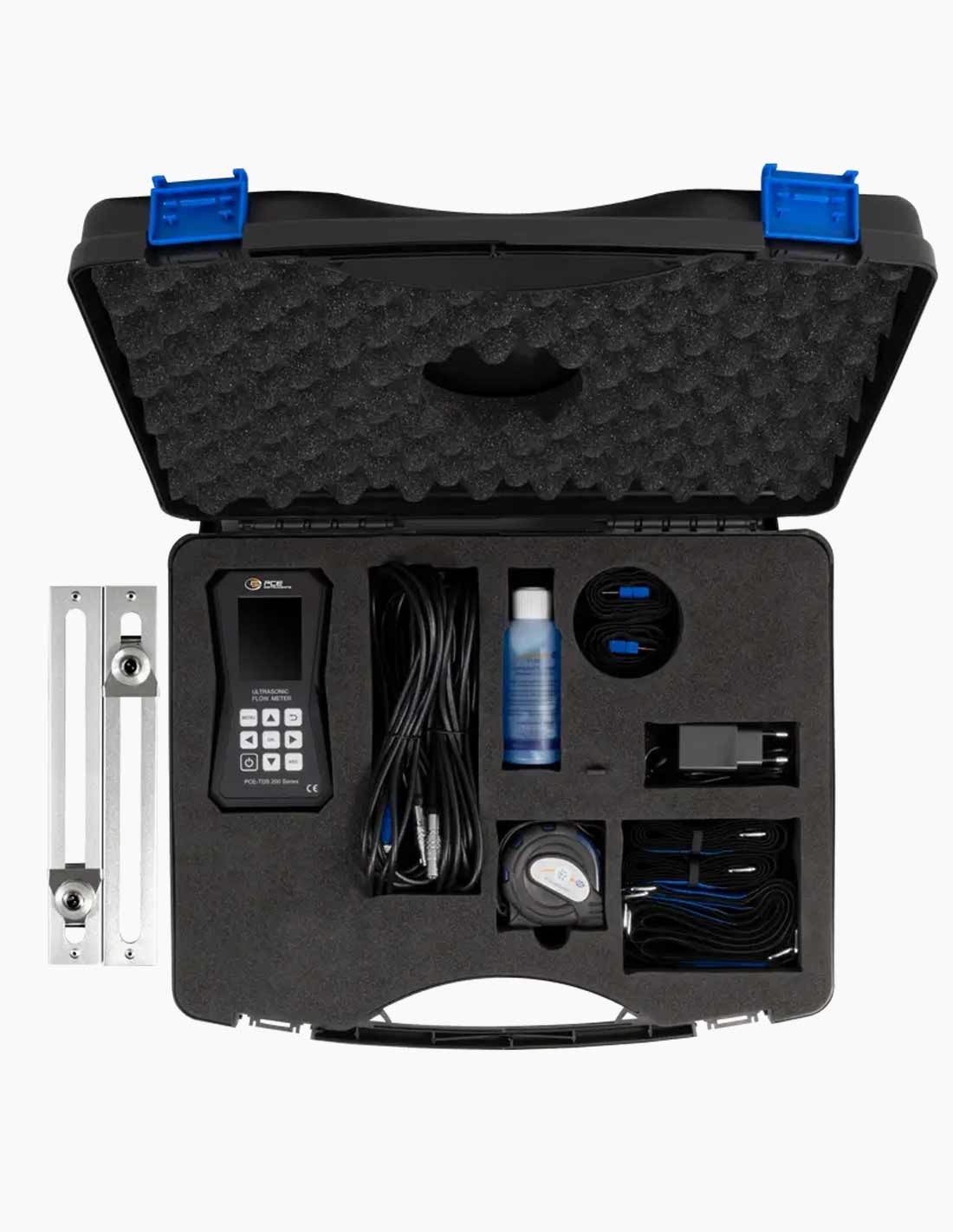

Shipment contents and recommended accessories

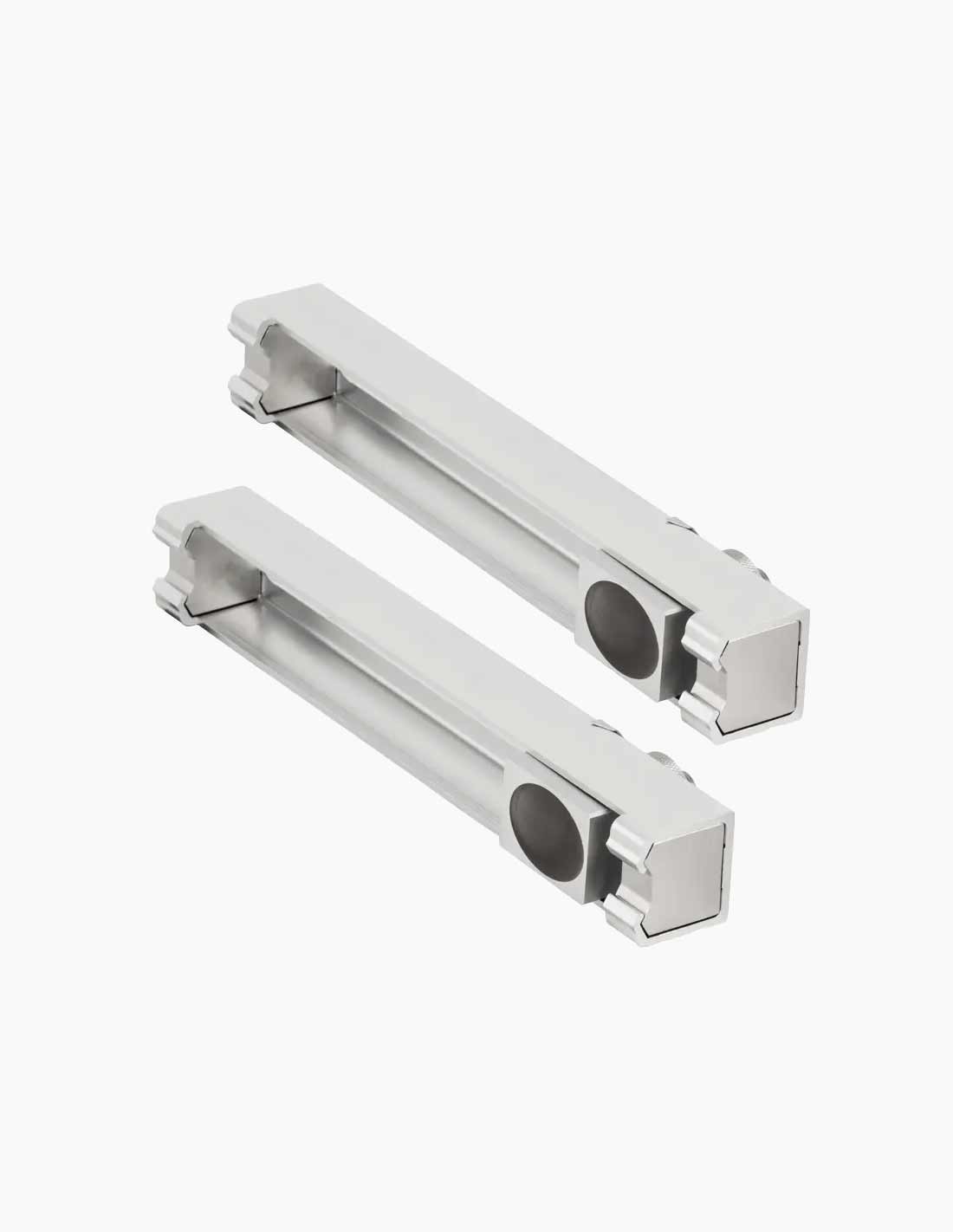

• Measurement unit and DN50…700 sensors (M-R).
• Installation accessories (mounting elements and coupling gel) for clamp-on mounting.

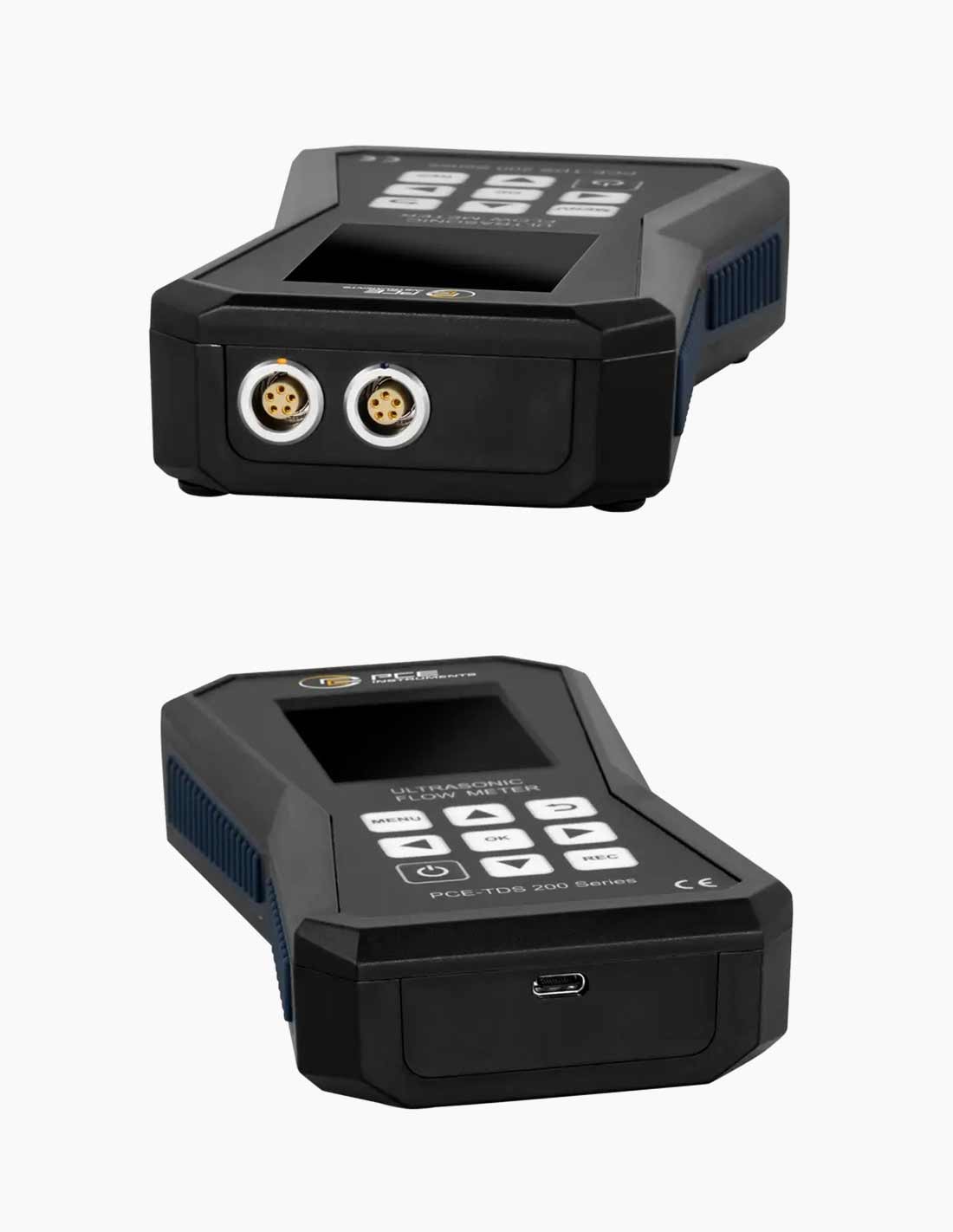

• USB connection for data transfer and charging.
• Optional: software, ISO or DAkkS calibration certificates and specific consumables.

If you need other diameters or mounting conditions, review the sensor family and variants of the TDS 200 / 200+ series to select the most suitable range.
