Bubble Shielding wrap ESD Film 148 µm

D1600162
€2.07
€2.51 Incl. VAT
€2.07 Incl. VAT
Delivery 1 to 3 weeks (subject to availability)

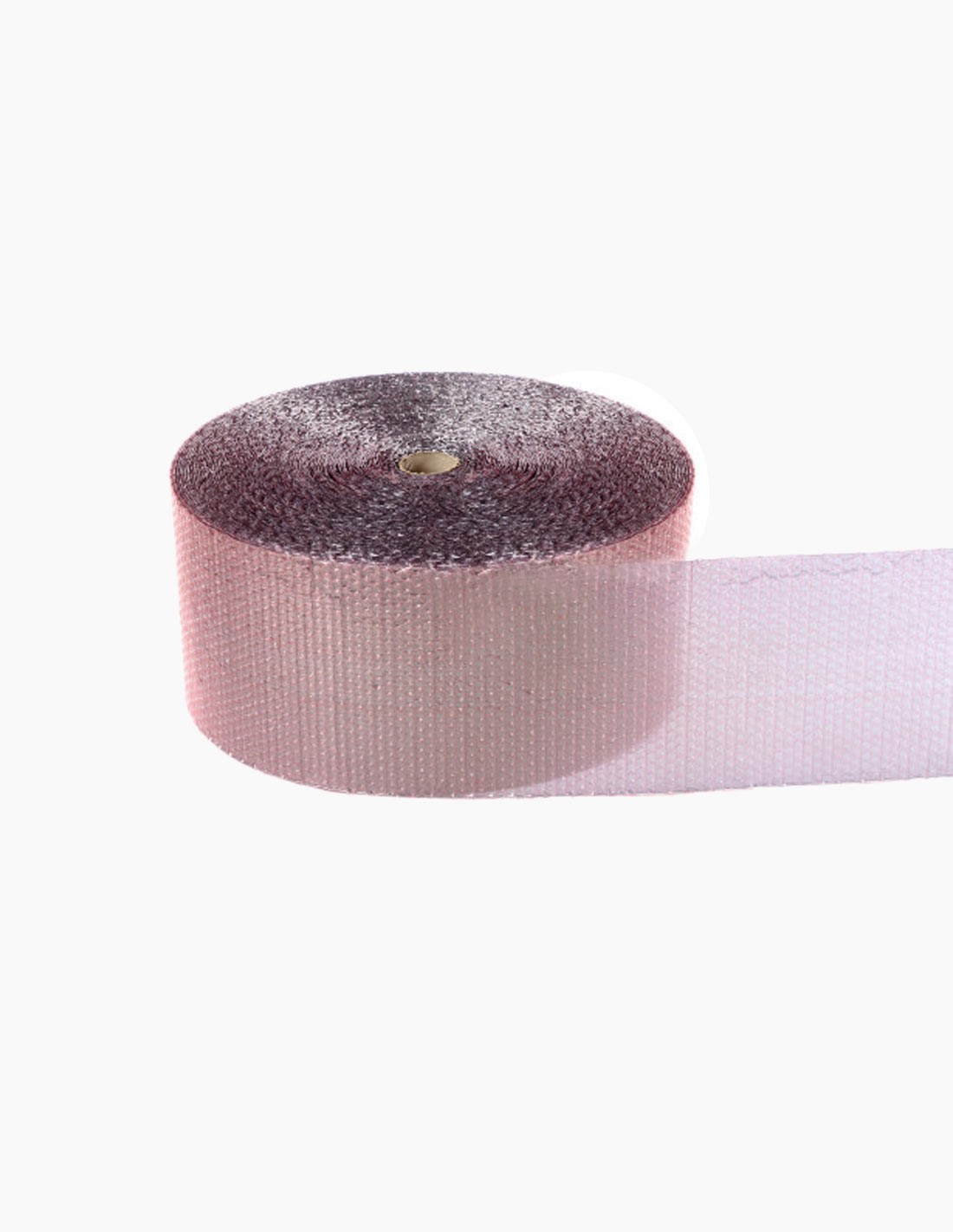

Shielding 148 µm bubble film for ESD and EMI products offers a versatile solution for protecting sensitive products during packaging and transportation. It combines antistatic and shock absorbing properties, reducing both the risk of electrostatic discharge and physical damage.

Standard film roll sizes are 610 mm x 100 m.

protection

packaging=

The minimum purchase order quantity for the product is 200.

100% secure payments 100% secure payments
VISA Mastercard American Express PayPal
PayPal Pay in installments

Exclusive gift!

Get a gift bag for purchases over 300€.

You might also like



Shielding Bubble Film for ESD and EMI products.

The Shielding Bubble Film is available in customisable rolls, and it allows products of any shape or size to be wrapped efficiently. Its multi-layer design ensures superior protection even in demanding industrial environments, while maintaining the highest quality standards.

The bubble film has a size of 610 mm x 100 m.

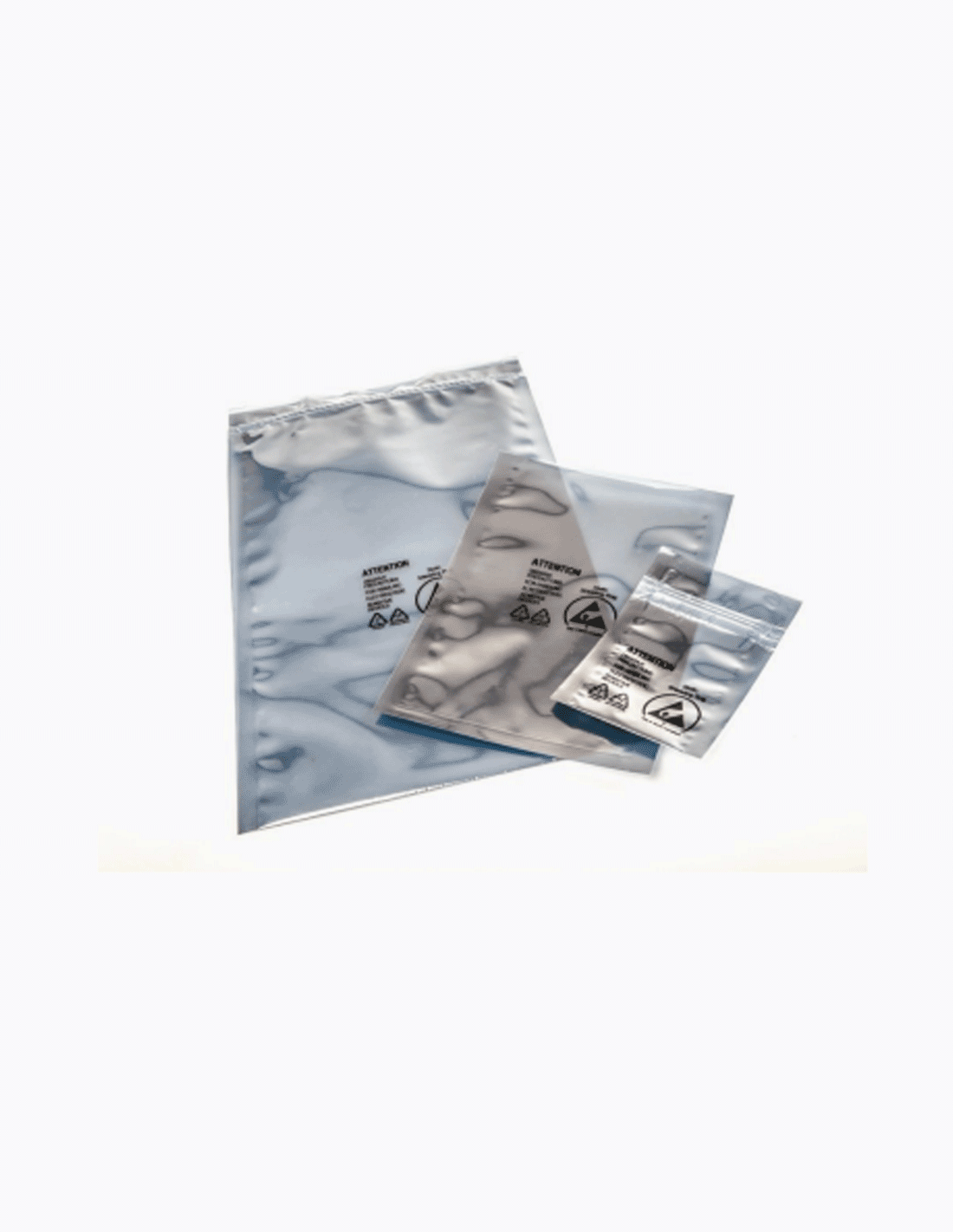

Shielding antistatic bags are silver in color and are usually used outside EPA (Electrostatic Protection Area) zones, which are common in the automotive sector with a relative humidity of 50% and a temperature of 23ºC. These types of products contain an intermediate layer of aluminum that gives the silver color and creates a Faraday cage protecting the products from electrostatic charges. The objective of this type of ESD shielding bag is to protect products from the creation of electrostatic charges in an environment where they can easily be created when outside EPA zones.

It is a product commonly used for electronic components and in the automotive industry.

Within the Shielding bags, we could separate them into 2 types:

  • Shielding: Simply called Shielding, they are semi-transparent as they have a small amount of aluminum in their intermediate layer. They have a usual thickness of 76 microns.
  • MBB (Moisture Barrier Bag): These contain more aluminum than Shielding, providing a barrier against moisture as well as protecting against electrostatic charges. They are usually opaque and have a thickness of 90 microns or more.
Materials
Aluminium
Maximum load resistance
RS ≤ 10^11 Ohm
Dimensions
610 mm x 100 m
Ingress protection rating
≤ 50 nJ
Certifications
IEC 61340-5-1, RoHS compliant
Run Out Time
≤ 0,05 sec. FTMS 101 Mtd 406
Bubble diameter
10 mm
